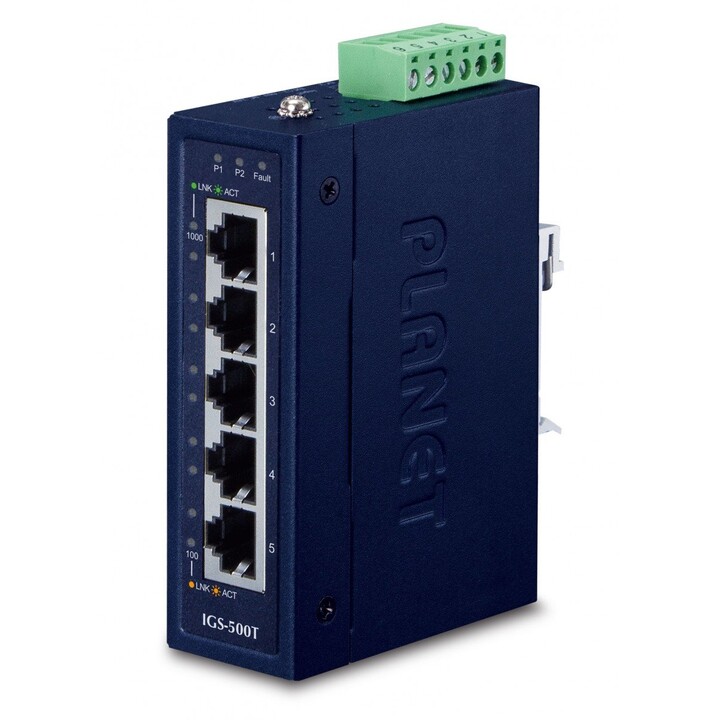

PLANET IGS-500T switch Unmanaged Gigabit Ethernet (10/100/1000) Blue

The PLANET IGS-500T is a compact industrial-grade unmanaged Gigabit Ethernet switch designed for demanding network environments. Featuring 5 10/100/1000Base-TX ports, it delivers high-performance switching with a 10Gbps switching fabric and 7.44Mpps throughput. Its robust metal housing with IP30 protection ensures durability under harsh conditions.

This switch supports both DIN-rail and wall-mount installation, providing flexible deployment options. It operates efficiently with a typical power consumption of 3.6W and supports redundant power supply for enhanced reliability. The device functions reliably across a wide temperature range from -40 to 75°C and humidity levels between 5% and 90%.

Additional features include auto MDI/MDI-X, auto-negotiation, full duplex support, and compatibility with various cable types (Cat3 to Cat6). The switch supports IEEE networking standards including 802.1p, 802.3, 802.3ab, 802.3az, 802.3u, and 802.3x, along with flow control and MAC address auto-learning and aging.

With certifications such as FCC Part 15 Class A, CE, and IEC standards for free fall, shock, and vibration, the IGS-500T is built to meet industrial requirements. Its compact dimensions (104 x 70 x 30 mm) and light weight (252 g) make it easy to integrate into existing setups.

Note: Power supply is not included and should be selected separately. The PLANET IGS-500T is ideal for industrial networking applications requiring reliable, high-speed connectivity in challenging environments.
