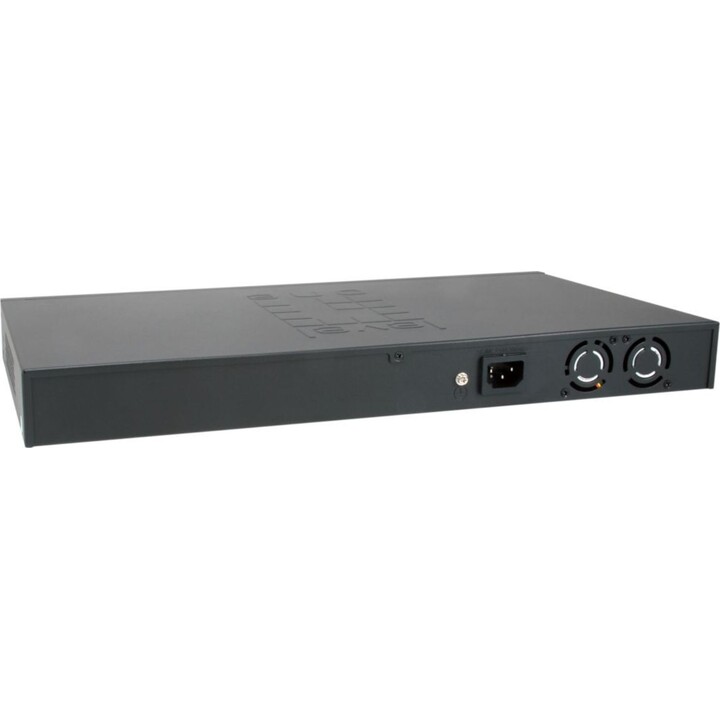

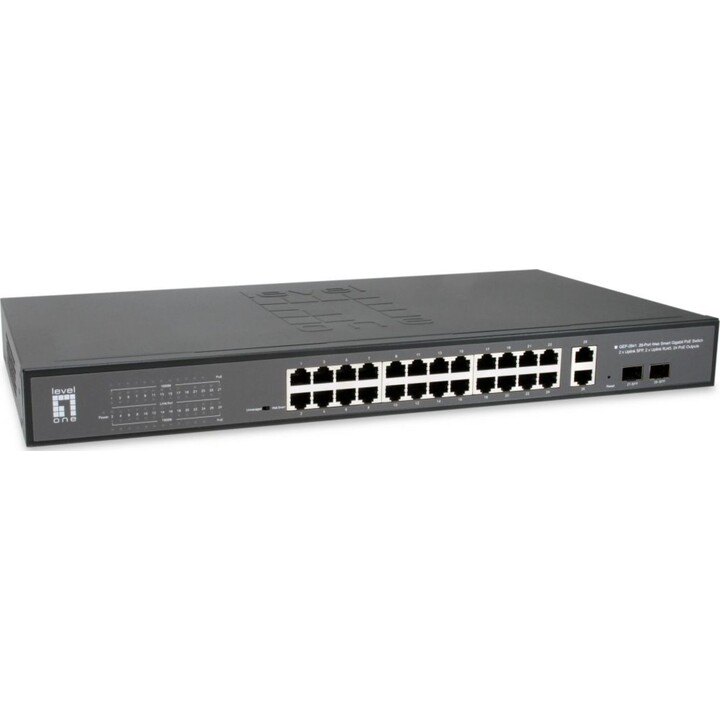

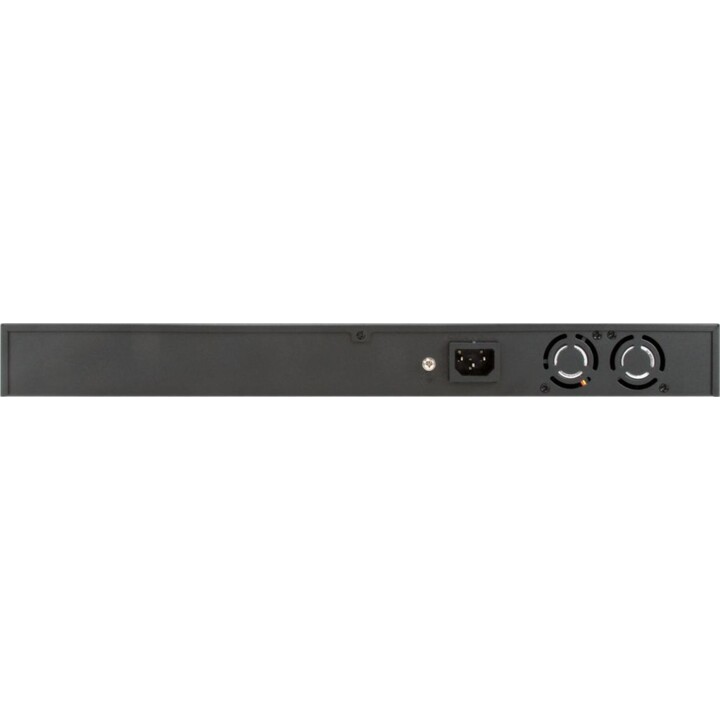

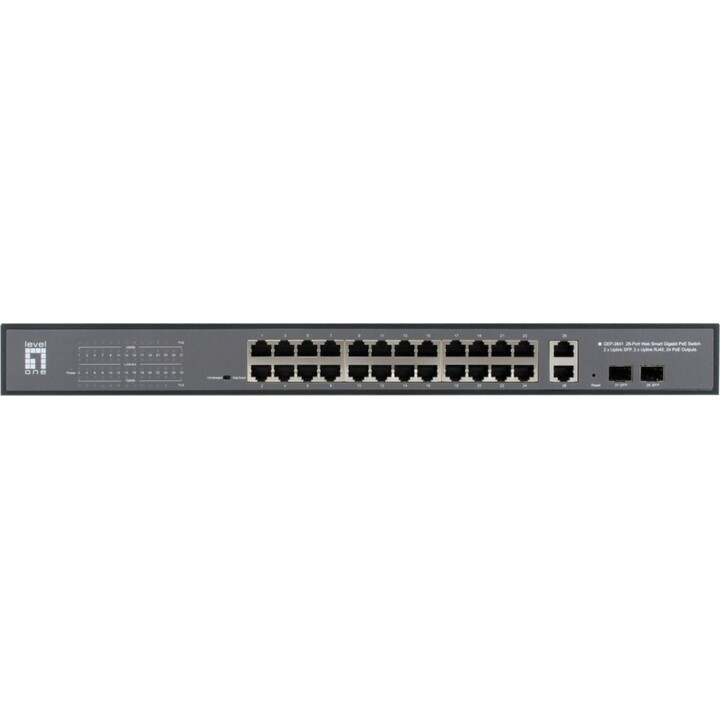

LevelOne GEP-2841 28-Port Web Smart PoE Gigabit Switch, 2 Gigabit SFP, 2 Gigabit RJ45, 24 PoE Ports

Description

LevelOne GEP-2841 Managed Switch L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

LevelOne GEP-2841, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rackmount, 1U

Management features

• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based administration: Yes

Ports and Interfaces

• Number of basic RJ-45 Ethernet switching ports: 26
• Basic switching type RJ-45 Ethernet ports: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper), number of ports: 24
• Number of SFP module slots: 2
• Electrical connector: AC-in power connector

Connection

• Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• 10G support: No
• Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX1000BASE-T
• Ethernet LAN, data transfer speed: 10, 100, 1000 Mbit/s
• VLAN support: Yes

Data transmission

• MAC address table: 8000 entries
• Jumbo Frames, support: Yes
• Jumbo plots: 9000

Security

• Loop protection: Yes

Design

• Rack mount: Yes
• Stackable: No
• Form factor: 1U
• Product color: Black
• LED Indicators: Yes

Performance

• Internal memory: 4.1 MB
• Firmware upgradeable: Yes
• Without fan: No

Energy control

• Power source: Alternating current
• Power supply included: Yes
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Input current: 4 A
• Power consumption (max): 400 W

Power over Ethernet (PoE)

• Power over Ethernet (PoE): Yes
• Power per Power over Ethernet (PoE) port: 15.4 W
• Power over Ethernet (PoE) Budget: 375 W

Environmental conditions

• Operating temperature range: -10 - 65 °C
• Storage temperature range: -40 - 75 °C
• Relative humidity range for operation: 5 - 90%
• Relative humidity range during storage: 5 - 95%

Weight and dimensions

• Ancho: 438 mm
• Depth: 220 mm
• Height: 45 mm
• Weight: 2.34 kg

Package contents

• Cables included: Alternating current
• Quick Setup Guide: If
• Mounting shelf: Yes

Packaging

• Packaging type: Box
• Package width: 497 mm
• Package depth: 299 mm
• Package height: 93 mm
• Package weight: 3 kg

Regulatory approvals

• Certification: CE, RoHS
