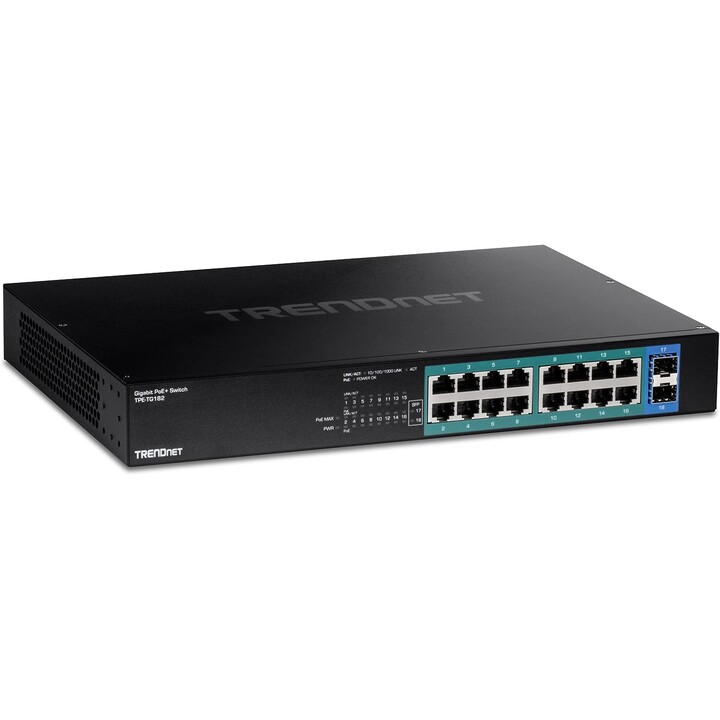

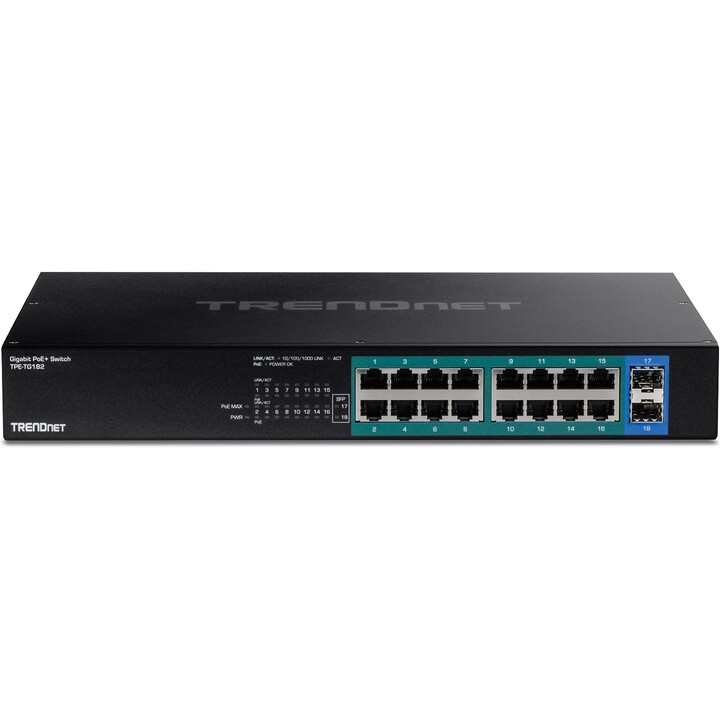

TRENDnet Switch TPE-TG182 18 Ports/ RJ-45 Gigabit 10/100/1000 PoE/ SFP

TPE-TG182 (Version v1.0R)

• 16 Gigabit PoE+ ports (30W per port)
• 2 Gigabit SFP slots
• 240W total available PoE power
• 36Gbps switching capacity
• internal power supply
• Rugged metal enclosure with 1U 19” rack mount option
• NDAA/TAA compliant (US and Canada only)

TRENDnet s Unmanaged Gigabit PoE+ Switches provide high-bandwidth performance, ease of use, and reliability. These IEEE 802.3at compliant switches feature a rugged 1U 19 rack-mountable metal enclosure , with mounting brackets included. These gigabit PoE+ switches with SFP slots also support long distance fiber network applications .

Installers and integrators can save equipment costs and reduce installation time with TRENDnet s Unmanaged Gigabit PoE+ Switches, providing 30W per port of PoE+ power and data over existing Ethernet cables. Easily network PoE devices such as high-power wireless access point s, PTZ cameras, digital signage, IPTV set-top boxes, and access controls with these reliable Gigabit PoE+ switches with SFP support.

gigabit SFP slots

Gigabit ports offer full switching capacity for this rack mounted PoE+ switch , with SFP slots for long distance fiber optic applications.

hardware design

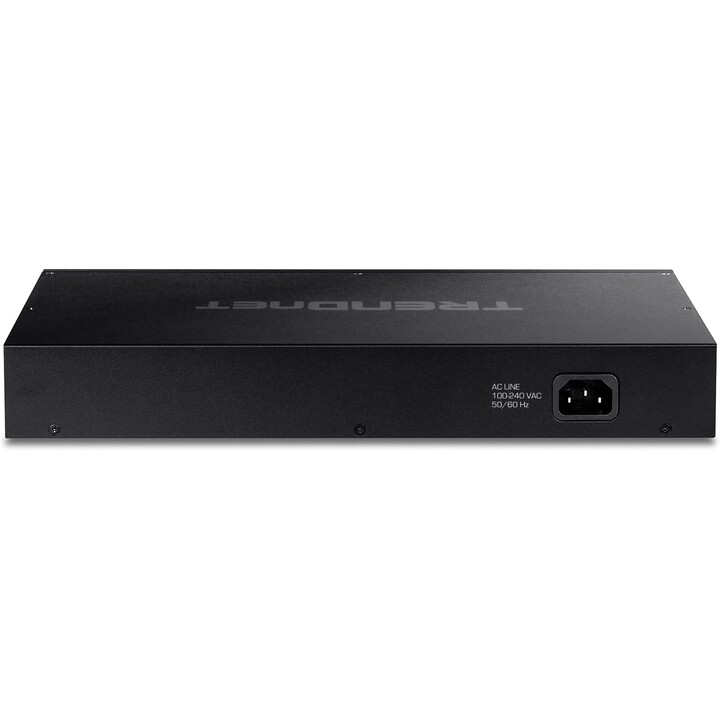

With its rugged metal casing and included rack-mount brackets, this switch accommodates 1U 19" rack installations.

PoE power

The total available PoE power of 240W allows to supply 16 PoE+ devices with 30W per port.

hardware design

With its rugged metal housing and included rack-mount brackets , this gigabit PoE+ switch with SFP slots accommodates 1U, 19” rack installations.

PoE power

Total available PoE power of 240W allows supplying 16 PoE+ devices with 30W per port

Gigabit SFP slots

Gigabit ports offer full switching capacity for this gigabit Poe+ switch, with support for fiber SFPs for long distance fiber optic applications .

Jumbo Frame

Send larger packets, or Jumbo Frames, to improve performance

LED indicators

The LED indicators of this PoE+ switch with SFP slots conveniently convey the status of the ports

SPECIFICATIONS

• standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab
• IEEE 802.3af
• IEEE802.3at
• device interface
• 16 Gigabit PoE+ ports
• 2 Gigabit SFP slots
• LED indicators
• Data transfer rate
• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit Ethernet: 2000 Mbps (full duplex)
• SFP: 2000Mbps (full duplex)
• Performance
• Data RAM buffer: 512KB
• Switching fabric: 36 Gbps
• MAC Address Table: 8K Entries
• Forwarding rate: 23.8 Mpps ( 64-byte packet size)
• Jumbo Frames: 10KB
• Feeding
• Input: Internal power supply 100-240 V AC and 50/60Hz
• Maximum consumption: 40W (not PoE)
• PoE
• Available PoE Power: 240W
• PoE Mode A: Pins 1, 2, 3 and 6 for power
• Overcurrent protection
• short circuit protection
• fan and acoustic
• Quantity: 2
• Max noise level: 30dB
• MTBF
• 659,157 hours
• Operating temperature
• 0° – 40° C (32° – 104° F)
• operating humidity
• Max 90% non-condensing
• Dimensions :
• 324 x 230 x 44mm (12.75 x 9 x 1.8 inches)
• Weight
• 2.5kg (5.68lbs)
• Certifications
• EC
• FCC
• ETL
• Package content
• TPE-TG182
• Quick Installation Guide
• rack mount kit
• Power cord (1.8 m/ 4.9 ft)
