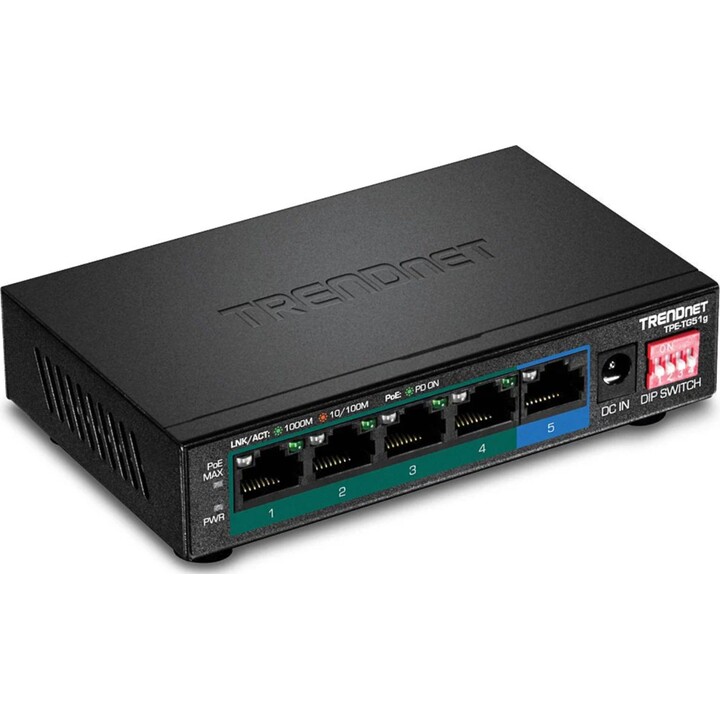

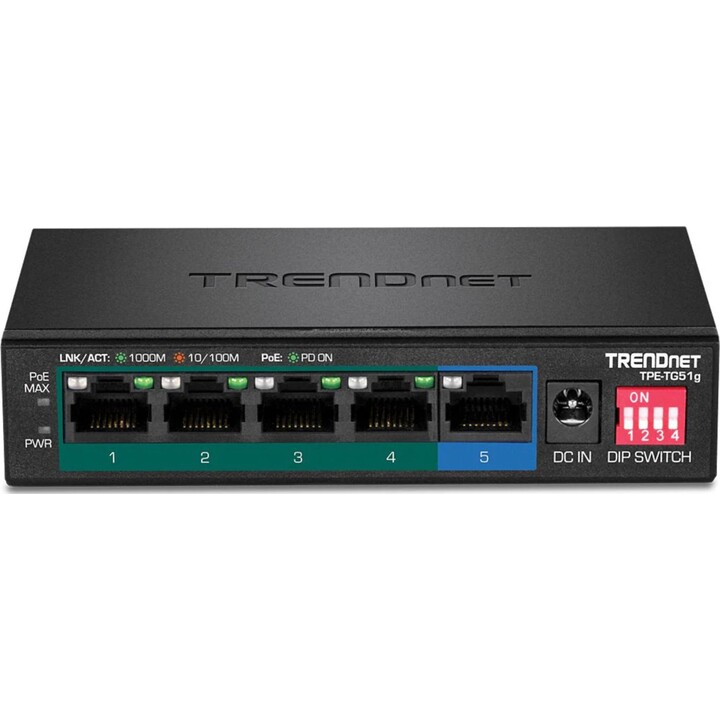

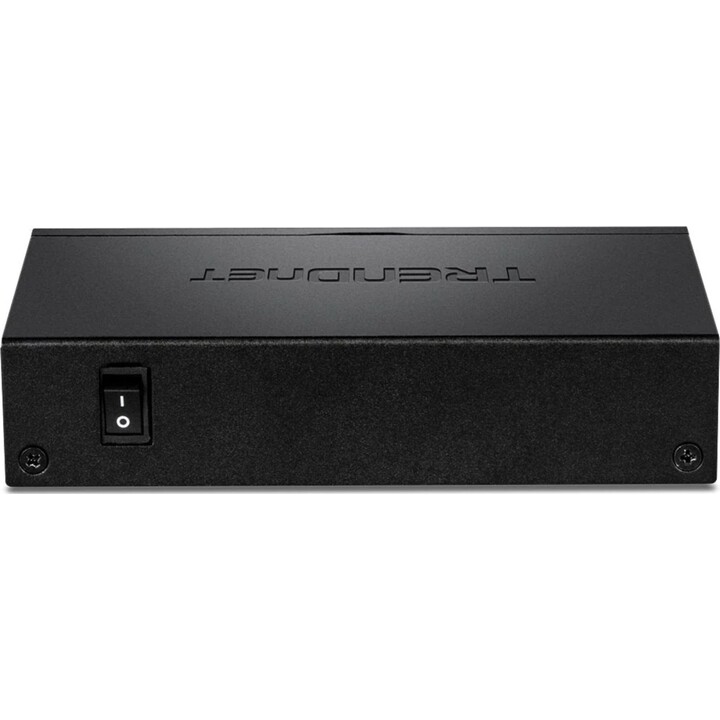

TRENDnet TPE-TG51G 5-Port/ RJ-45 Gigabit 10/100/1000 PoE Switch

Description

Trendnet TPE-TG51G Gigabit Ethernet Switch (10/100/1000) Power over Ethernet (PoE) Black

Trendnet TPE-TG51G, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

Key product points

4 Gigabit PoE+ ports

One Gigabit port

Total available PoE power of 60W

Allows the DIP switch to extend the PoE+ signal 200m (656 ft) at 10Mbps

The DIP switch supports VLAN port isolation and QoS

10 Gbps switching capacity

Compact metal switch

Design for wall mounting

NDAA/TAA Compliant (US and Canada only)

Management Features

Quality of Service (QoS) support: Yes

Ports and Interfaces

Number of basic RJ-45 Ethernet switching ports: 5

Basic RJ-45 Ethernet switching ports: Gigabit Ethernet (10/100/1000)

Connection

Network standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x

Full duplex: Yes

Half-duplex transmission: Yes

Ethernet LAN, data transfer rate: 10,100,1000 Mbit/s

VLAN Support: Yes

Data transmission

Switching capacity: 10 Gbit/s

Forwarding rate: 7.44 Mpps

MAC Address Table: 2000 entries

Jumbo Frames, support: Yes

Jumbo Frames: 9000

Design

Product color: Black

Housing material: Metal

LED indicators: Yes

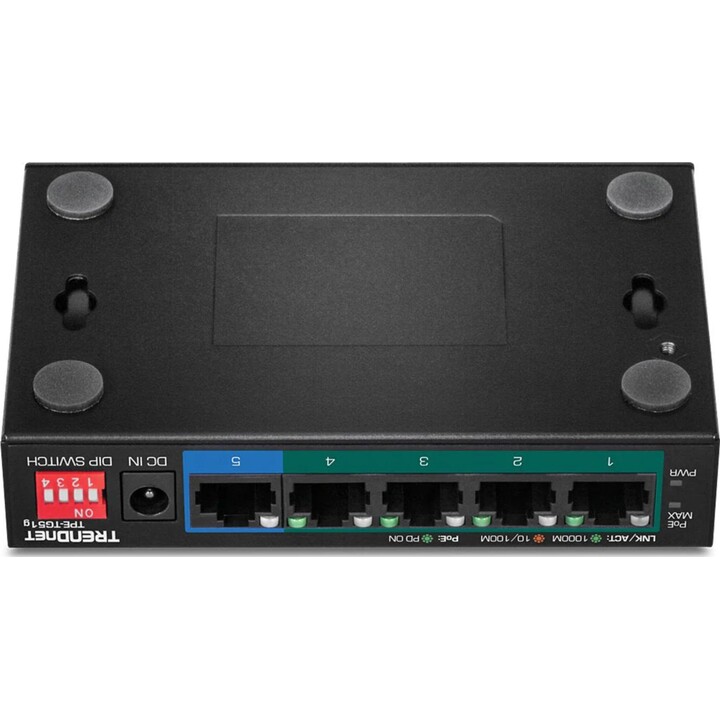

Wall mount: Yes

Power control

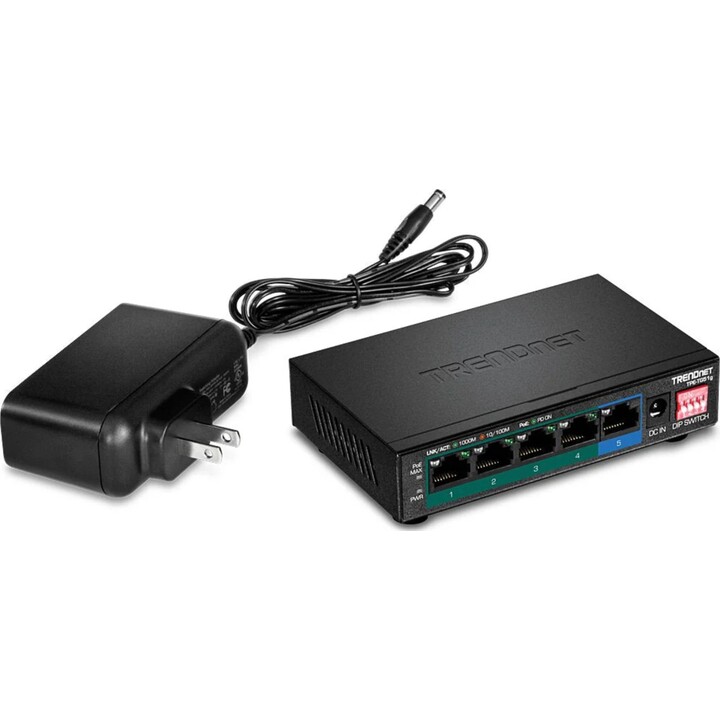

Power supply included: Yes

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Power consumption: 64.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes

Power over Ethernet Plus (PoE+) Number of ports: 4

Power over Ethernet (PoE) Budget: 60 W

Environmental conditions

Operating temperature range: 0 - 40°C

Storage temperature range: 0 - 90 °C

Weight and dimensions

Width: 121 mm

Depth: 75 mm

Height: 26 mm

Weight: 246 g
