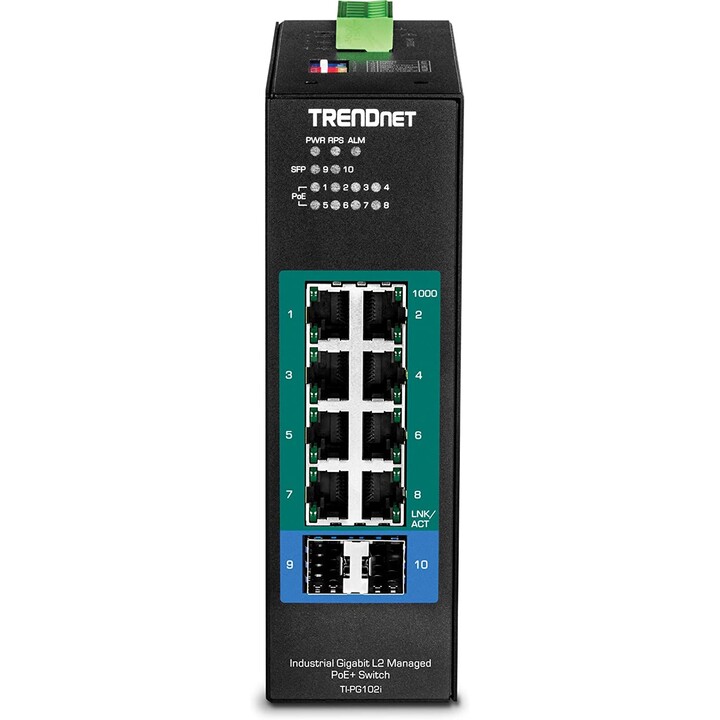

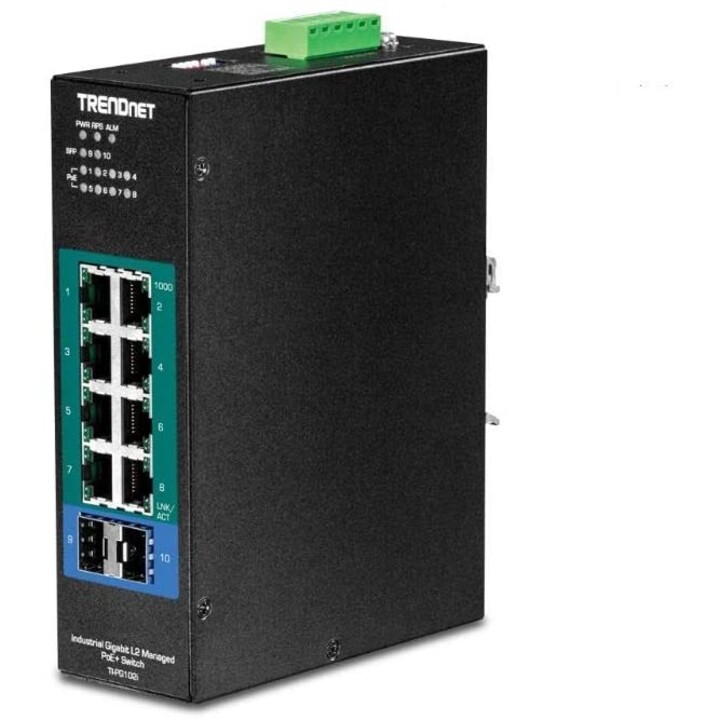

Managed Switch TRENDnet TI-PG102I 10 Ports/ RJ-45 Gigabit 10/100/1000 / PoE/ SFP

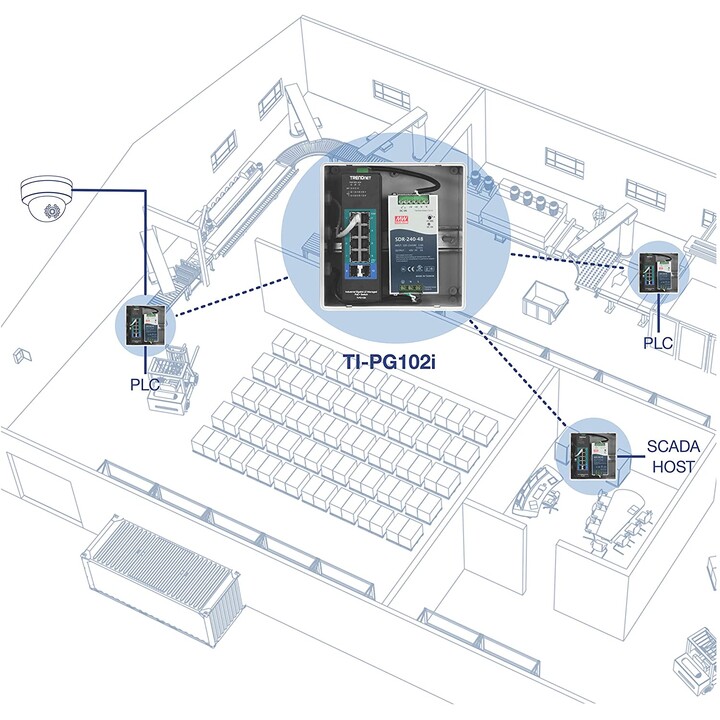

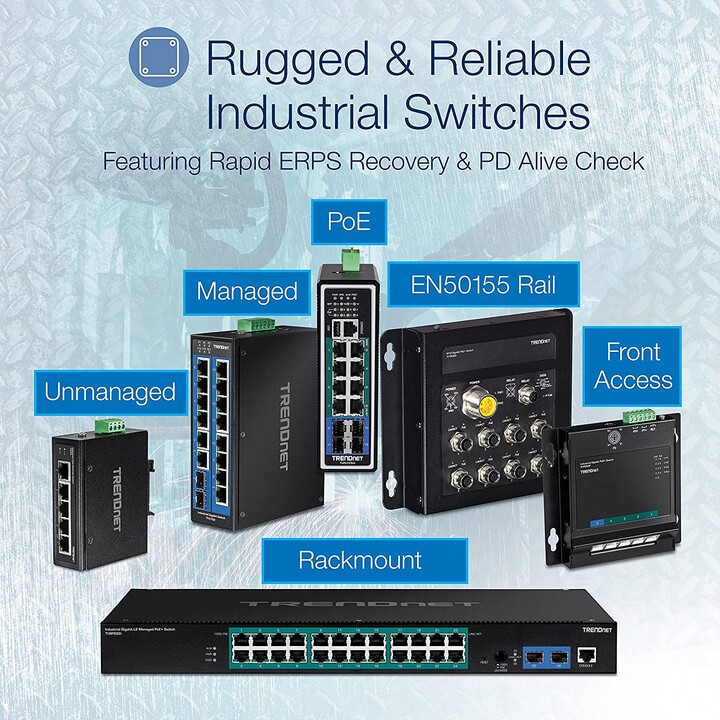

10-Port Industrial L2 PoE+ Managed Gigabit DIN-Rail Switch, 24 to 57V

• 8 Gigabit PoE+ ports
• 2 SFP slots

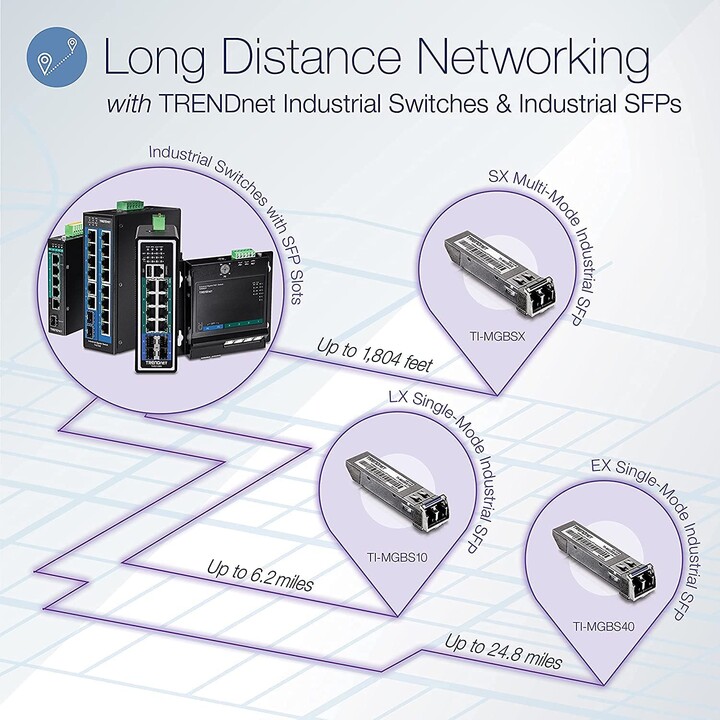

• Supports 100/1000Base-FX fiber SFP modules
• Available PoE power: 240W@48VDC or 124W@24VDC
• PoE activity check reboots PoE-powered devices that are not responding
• 20 Gbps switching capacity
• IP30 rated metal reinforced housing

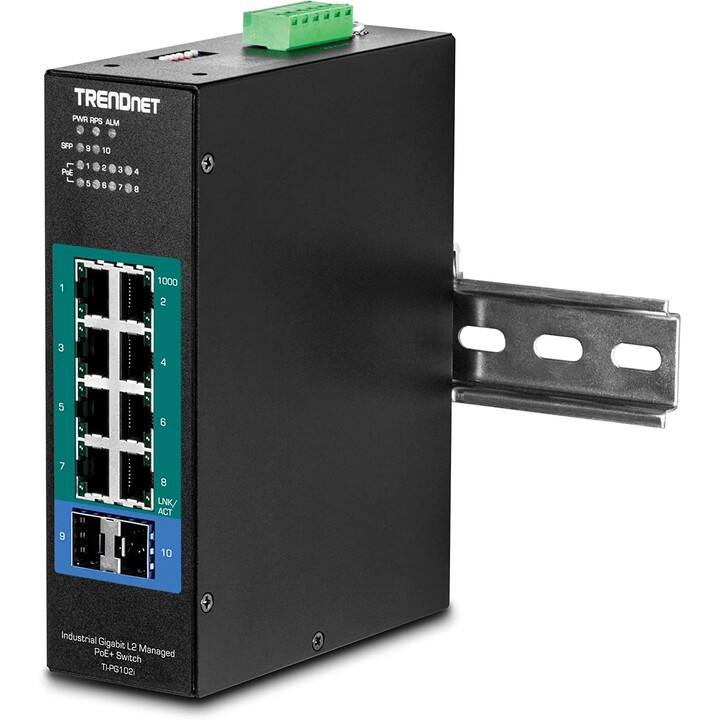

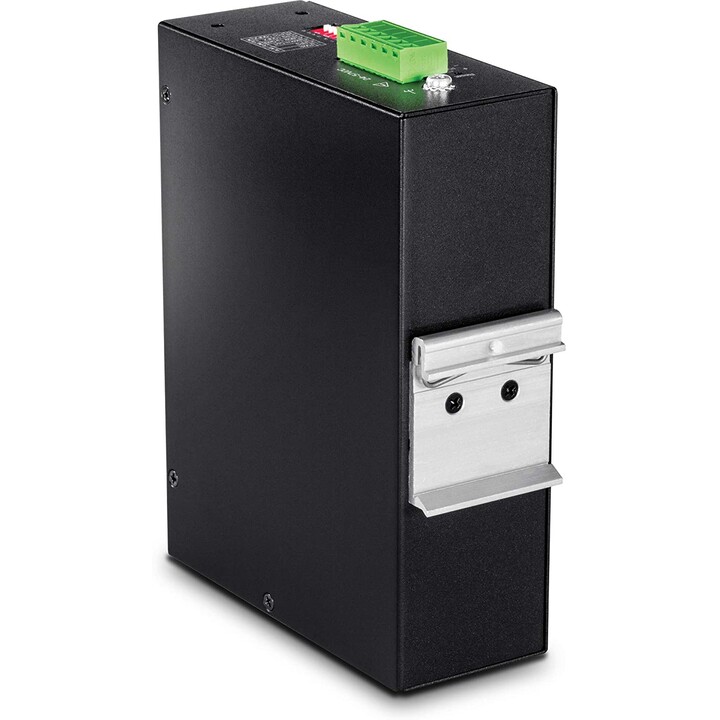

• Includes DIN-rail mounting bracket
• Operating temperature range -40 to 75°C (-40 to 167°F).
• Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
• IEEE 802.1p QoS with queue scheduling
• Bandwidth control per port
• Dual redundant current inputs with overload protection
• Alarm activated by deficiencies in the electrical supply
• Supports Ethernet Ring Protection Switching (ERPSv2)
• Power supply sold separately (model: TI-S24048, TI-S48048, TI-S12024)

• SPECS

• standards
• IEEE802.1d
• IEEE802.1p
• IEEE802.1Q
• IEEE802.1w
• IEEE802.1X
• IEEE 802.1ab
• IEEE802.1ax
• IEEE802.3u
• IEEE802.3x
• IEEE802.3z
• IEEE 802.3ab
• IEEE 802.3ad
• IEEE 802.3az
• IEEE 802.3af
• IEEE 802.3at
• device interface
• 8 Gigabit PoE+ ports
• 2 SFP slots at 100/1000 Mbps
• 6-pin removable terminal block (primary / secondary power inputs and alarm relay output)
• DIP Switches
• LED indicators
• reset button
• Data transfer rate
• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
• Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
• Gigabit Ethernet: 2000Mbps (full duplex)
• Performance
• Switching fabric: 20 Gbps
• Data RAM buffer: 128MB
• MAC Address Table: 8K Entries
• Jumbo Frames: 10KB
• Forwarding mode: store and forward
• Forwarding rate: 14.88 Mpps (64-byte packet size)
• Management
• HTTP web-based GUI
• CLI: Telnet/SSHv2
• SNMP v1, v2c, v3
• SNMP trap (up to 5 receivers)
• RMON groups 1/2/3/9
• Backup and restore of device configuration, firmware update, reboot and reset to default values
• Multiple administrative or read-only user accounts
• Enabling or disabling power saving mode per port
• Static MAC entries
• LLDP (Link Layer Discovery Protocol)
• Netlite device map
• ONVIF device discovery
• SNTP
• SMTP Alert
• syslog
• Statistics / port usage
• traffic monitoring
• Port mirroring: one to one, many to one
• Traffic control: Broadcast, multicast, destination query fail (min limit: 1pps)
• Loopback detection
• DHCP relay/option 82
• Modbus/TCP
• SFP DDMI (Digital Diagnostic Monitoring Interface)
• ERPs (Ethernet Ring Protection Switching) G8032v2
• MY B
• MIB II RFC 1213
• RFC 1493 MIB Bridge
• RMON (group 1,2,3,9) RFC 2819 RFC 1757
• Spanning Tree
• IEEE 802.1D STP (Spanning Tree Protocol)
• IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
• BPDU filter, guard and root guard
• Link aggregation
• Static link aggregation and dynamic LACP 802.3ad (up to 3 groups)
• Quality of Service (QoS)
• Class of Service (CoS) 802.1p
• DSCP (Differentiated Services Code Point)
• Bandwidth control per port
• Queue Scheduling: Strict Priority (SP), Weighted Round Robin (WRR), Weighted Fair Queuing (WFQ)
• VLANs
• 802.1Q tagged VLAN
• MAC-based VLAN
• port isolation
• Up to 256 VLAN groups, ID range 1-4094
• multicast
• IGMP snoop v1, v2, v3
• IGMP supplicant
• IGMP Fast Exit
• Up to 256 multicast groups
• Static multicast entries
• Access control
• 802.1X authentication (local user database, RADIUS, guest VLAN assignment)
• DHCP snooping / screening
• Trusted host / IP access list for administration access
• Port security/MAC address learning restriction (up to 100 entries per port)
• Static/dynamic ARP inspection
• ACLs
• source/destination MAC address
• source/destination IP address
• source interface
• VLAN-ID
• EtherType
• Port 1-65535 TCP/UDP
• Special features
• Discovery of Netlite devices and appearance of the map in the GUI
• Port Security: Per-port MAC Address Lookup Restriction
• DHCP relay/option 82 and DHCP server snooping/screening support
• Wide operating temperature
• Dual redundant power inputs
• Alarm relay activated by power failure
• Protection against surges and electrostatic discharges
• Feeding
• PWR terminal input (primary): 24 – 57V DC
• RPS terminal input (secondary): 24 – 57V DC
• Compatible Power Supply: TI-S12024 (120W), TI-S24048 (240W), TI-S48048 (480W) sold separately
• Maximum consumption: 13W (no PoE load), 253W (full PoE load)
• PoE
• Available PoE Power: 240W@48V DC input, 124W@24V DC input
• 802.3at: Up to 30W per port
• PoE Mode A: Pins 1, 2, 3 and 6 for power
• PoE Autoclassification
• PoE port priority/power scheduling/powered device activity check
• Overcurrent and short circuit protection
• terminal block
• Redundant power inputs, alarm relay contact, 6 pins
• Cable range: 0.5 mm^2 to 2.5 mm^2
• Rigid wire (AWG): 12-26
• Stranded Wire (AWG): 12-26
• Wire Strand Length: 10-11mm
• dip switch
• Switch State Function
• 1 OFF Disable PWR power input alarm relay
• ON Activate the power failure alarm relay on the PWR power input
• 2 OFF Disable RPS power input alarm relay
• ON Activate the power failure alarm relay on the RPS power input
• 3 OFF Storm control managed by switch configuration
• ON Enable storm control (baud rate and DLF fixed at 300pps)
• Takes precedence over storm control switch configuration
• 4 OFF 802.1p QoS managed by switch configuration
• ON Enable 802.1p QoS on ports 1 and 2 (set CoS priority for tag 4 on ports 1 and 2)
• Takes precedence over 802.1p QoS switch settings
• 5 OFF Port 9 SFP set to full duplex Gigabit speed
• ON Port 9 SFP configured at 100Mbps full duplex speed
• 6 OFF Port 10 SFP set to full duplex Gigabit speed
• ON Port 10 SFP configured at 100Mbps full duplex speed
• alarm relay output
• Relay outputs with current carrying capacity of 1A, 24 V DC
• Short circuit mode when a power supply is connected
• Open circuit mode when two power supplies are connected
• Enclosure
• IP30 certified metal housing
• Passive fanless cooling
• DIN rail mounting
• ground connection point
• Electrostatic discharge protection: 8KV DC
• Surge protection: 6KV DC
• MTBF
• 562,234 hours at 25°C
• 142,948 hours at 75°C
• Operating temperature
• -40° – 75°C (-40° – 167°F)
• Admitted humidity
• max. 95% non-condensing
• Dimensions

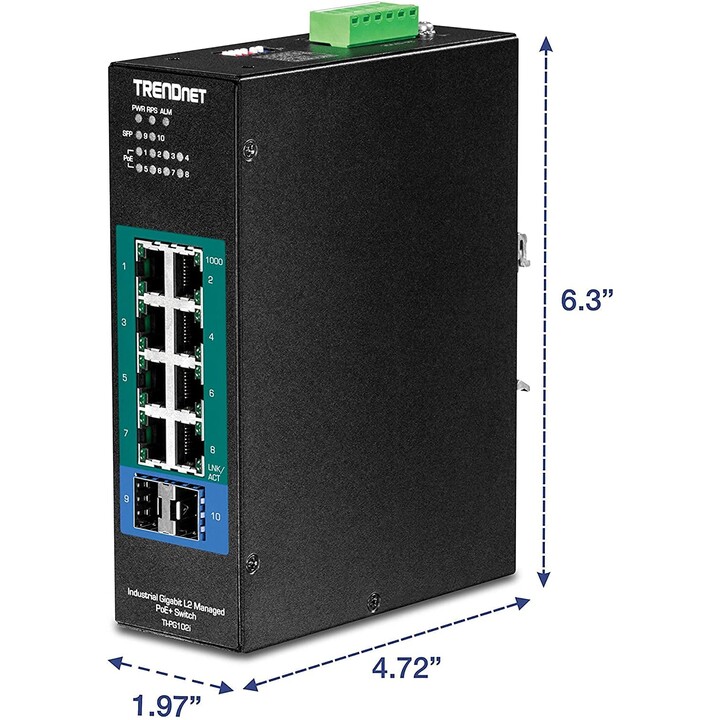

• 160 x 120 x 50mm. (6.3 x 4.72 x 1.97 inches)
• Weight
• 930g (2.05lbs)
• Certifications
• EC
• FCC
• Shock (IEC 60068-2-27)
• Free fall (IEC 60068-2-32)
• Vibrations (IEC 60068-2-6)
• PACKAGE CONTENTS
• TI-PG102i
• Quick installation guide
• Removable terminal block
• DIN rail mounting bracket
