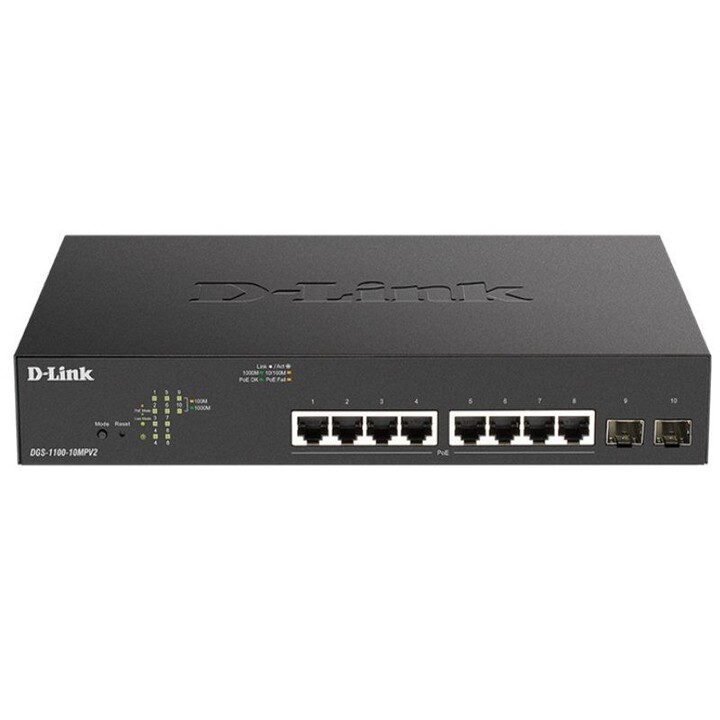

Switch DD-Link DGS-1100-10MPV2 8 Ports/ RJ-45 Gigabit 10/100/1000 PoE/ SFP

Add management to your company network. More performance. More security for your data.

The DGS-1100 Smart Switch family offers an affordable solution for environments that require easy network management.

Smart web interface

The web interface is an easy way to manage Layer 2 features such as VLAN creation, Spanning Tree Protocol (STP), and (static) link aggregation. With powerful security features like IGMP snooping, Static MAC and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy-to-deploy and easy-to-configure solutions without added complexities.

Easy to implement and manage

D-Links free Network Assistant (DNA) shows all connected devices and speeds up first-time setup. The D-View 7 Network Management System comes with a free license for 25 nodes and 2 probes and full access to advanced management tools. Optional upgrade licenses allow you to extend management to more networks.

• Specifications

• Management Features
• Switch Type: Managed
• Quality of Service (QoS) support: Yes
• Web-based administration: Yes
• Ports and Interfaces
• Number of basic switching RJ-45 Ethernet ports: 8
• Switching basic type RJ-45 Ethernet ports: Gigabit Ethernet (10/100/1000)
• Number of SFP module slots: 2
• Connection
• Network standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3u ,IEEE 802.3x
• 10G support: No
• Full bidirectional (Full duplex): Yes
• Half-duplex transmission: Yes
• Flow control support: Yes
• Link Addition: Yes
• Limit Rate: Yes
• Auto MDI / MDI-X: Yes
• Head of Line (HOL) Lock: Yes
• Auto-negotiation: Yes
• VLAN support: Yes
• Virtual LAN features: Port-based VLAN,Tagged VLAN,Voice VLAN
• Number of VLANs: 4094

• PoE

• PoE Standard IEEE 802.3af/ 802.3at
• PoE Capable Ports Ports 1 to 8
• PoE Power Budget 130W

• Data transmission
• Switching capacity: 20 Gbit/s
• Forwarding Rate: 14.88Mpps
• MAC address table: 8000 entries
• Number of queues: 4
• Jumbo Frames, support: Yes
• Jumbo Frames: 9216
• Packet buffer: 4.1 MB
• Security
• IGMP: Yes
• Supported security algorithms: SSL/TLS
• Queue scheduling algorithms: Weighted Round Robin (WRR)
• Multicast features
• Multicast support: Yes
• Design
• Rackmount: Yes
• Form factor: 1U
• Product Color: Black
• Certification: FCC A, CE A, VCCI A, C-Tick, BSMI cUL, UL, LVD, CB, BSMI
• Performance
• Flash Memory: 16MB
• Noise level: 37dB
• Mean time between failures: 406887 h
• energy monitoring
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Power consumption (max): 164.6W
• Power over Ethernet (PoE)
• Power over Ethernet (PoE): Yes
• Number of Power over Ethernet (PoE) ports: 8
• Power over Ethernet (PoE) Budget: 130 W
• Environmental conditions
• Operating temperature range: -10 - 50 °C
• Storage temperature range: -40 - 70 °C
• Relative humidity range for operation: 0 - 95%
• Relative humidity range during storage: 0 - 95%
• Heat dissipation: 118.1 BTU/h
• Weight and measurements
• Width: 280mm
• Depth: 180mm
• Height: 44mm
• Weight: 1.5kg
