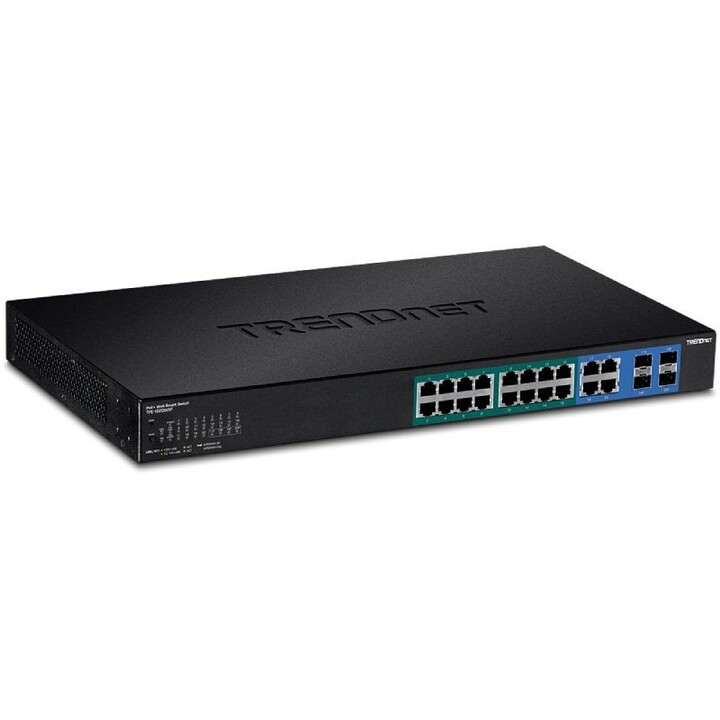

TRENDnet TPE-1620WSF 16-Port / RJ-45 Gigabit 10/100/1000 PoE / SFP Managed Switch

Smart web management

It provides an easy-to-use web-based management interface to reduce the complexity of switch configuration and offers a combination of SMB management features for easy deployment.

Integration flexibility

Managed switch features include access control lists, VLAN, IGMP / MLD snooping, QoS, RMON, SNMP trap, and syslog for flexible network integration and monitoring.

PoE power

The 370W total PoE power budget in this high-power PoE managed switch supplies 16 Power over Ethernet devices with up to 30W per port.

• specs
• Standards
• IEEE 802.1d
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1X
• IEEE 802.1ab
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.3ab
• IEEE 802.3ad
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3az
• Device interface
• 16 Gigabit PoE + ports
• 4 shared Gigabit ports (RJ-45 or SFP)
• LED indicators
• LED display mode button (toggles LEDs to show link / activity or PoE-only port status)
• Data transfer rate
• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit Ethernet: 2000 Mbps (full duplex)
• Performance
• Switch fabric: 40 Gbps
• RAM buffer: 512 KB
• MAC address table: 8K entries
• Jumbo frames: 10 KB
• HOL lock prevention
• Forwarding speed: 29.8 Mpps (64-byte packet size)
• administration
• CLI (Telnet / SSHv2) for basic administration
• HTTP / HTTPS (SSL v2 / 3 TLS) Web-based GUI
• SNMP v1, v2c, v3
• RMON v1
• Static unicast MAC address
• Enable / disable 802.3az power saving
• LLDP and LLDP-MED
• Virtual Cable Diagnostic Test
• IPv6: IPv6 neighbor discovery, IPv6 static IP, DHCPv6, automatic configuration
• Image and dual configuration
• TC Root / Protect
• Hive Cloud Management
• Configure, monitor and manage via TRENDnet Hives cloud management portal remotely via PC or Mac web browser
• Multi-device management
• Provisioning via scheduled batch firmware or configuration updates for multiple switches
• Hardware network / event monitoring (CPU / memory utilization)
• Enable and disable PoE, configure active PD (powered device) verification, configure PoE schedule, and monitor PoE budget utilization (for PoE switches only)
• Configure features such as IP address configuration, VLANs, spanning tree, loopback detection, IGMP tracing, link aggregation, and bandwidth control through cloud management.
• MY B
• RFC 1354 MIB IP Forwarding Table
• RMON MIB RFC 1271
• IPv4 MIB RFC 1213
• IPv6 MIB RFC 2465
• GVRP MIB IEEE 802.1Q-VLAN
• THE IEEE 802.3ad MIB
• LLDP MIB IEEE 802.1ab
• IGMP Snooping MIB RFC 2933
• MLD Snooping MIB RFC 3019
• IEEE 802.1Q MIB Private VLAN
• DHCP SNOOP MIB RFC 2026
• QoS MIB RFC 4323
• SNMP MIB RFC 3415
• STP MIB RFC 4318
• PNAC MIB IEEE 802.1x
• VLAN MIB IEEE 802.1q
• DNS MIB RFC 1611
• ACL MIB
• CTRL MIB bandwidth
• LBD MIB
• Mirror MIB
• IPv6 NEIGHBOR MIB
• SNTP MIB
• Storm CTRL MIB
• MIB statistics
• MIB tool
• Voice VLAN MIB
• DoS MIB
• Spanning tree
• IEEE 802.1d STP (Spanning Tree Protocol)
• IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
• IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
• Add a link
• Static link aggregation
• 802.3ad dynamic LACP
• Quality of Service (QoS)
• 802.1p Class of Service (CoS)
• DSCP (Differentiated Services Code Point)
• Bandwidth control per port
• Queue scheduling: strict priority, weighted round robin (WRR)
• VLAN
• Multiple Management VLAN Assignment
• Asymmetric VLAN
• 802.1Q tagged VLAN
• Dynamic GVRP
• MAC-based VLAN
• Protocol-based VLAN
• Up to 256 VLAN groups, ID range 1-4094
• Private VLAN (protected ports)
• Voice VLAN (10 user-defined OUIs)
• Multicast
• IGMP Snooping v1, v2, v3 (per VLAN)
• MLD Snooping v1, v2
• IGMP fast license
• MVR (Multicast VLAN Registration)
• Static multicast address
• Up to 256 multicast entries
• Port mirror
• RX, TX or both
• Many to one
• Access control
• Network access control based on 802.1X, RADIUS, TACACS + ports
• Dial-in user authentication
• DHCP inquiry
• Loopback detection
• Duplicate address detection
• Trusted host
• Denial of service (DoS)
• IP MAC port binding
• Dynamic ARP inspection
• Block unknown multicast
• ACL IPv4 L2-L4 and IPv6
• MAC address
• VLAN ID
• Ether Type (IPv4 only)
• IP protocol 0-255
• TCP / UDP port 1-65535
• 802.1p
• DSCP (IPv4 only)
• IPv6 address (IPv6 only)
• Layer 3 Features
• Static IPv4 / IPv6 routing
• IP interfaces: up to 6
• Routing table entries: up to 32 (IPv4 / IPv6)
• ARP table (up to 128 entries)
• Inter-VLAN routing
• Compatibility
• Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
• Power
• Input: 100 - 240 V AC, 50/60 Hz, internal power supply
• Max. consumption: 460W
• PoE
• Power budget: 370W
• 802.3at: up to 30W per port
• PoE A mode: pins 1, 2, 3 and 6 for power
• Automatic / manual PoE classification
• PoE port priority / power scheduling
• PD live check
• Fan / Acoustics
• Quantity: 2
• Noise level: 52 dBA (max.)
• MTBF
• 192,382 hours
• Operating temperature
• -5 ° - 50 ° C (23 ° - 122 ° F)
• Operating humidity
• Max. 90% non-condensing
• Dimensions
• 440 x 250 x 44 mm
• 1U height for rack mounting
• Weight
• 3.89 kg
• Certifications
• EC
• FCC
• UL
