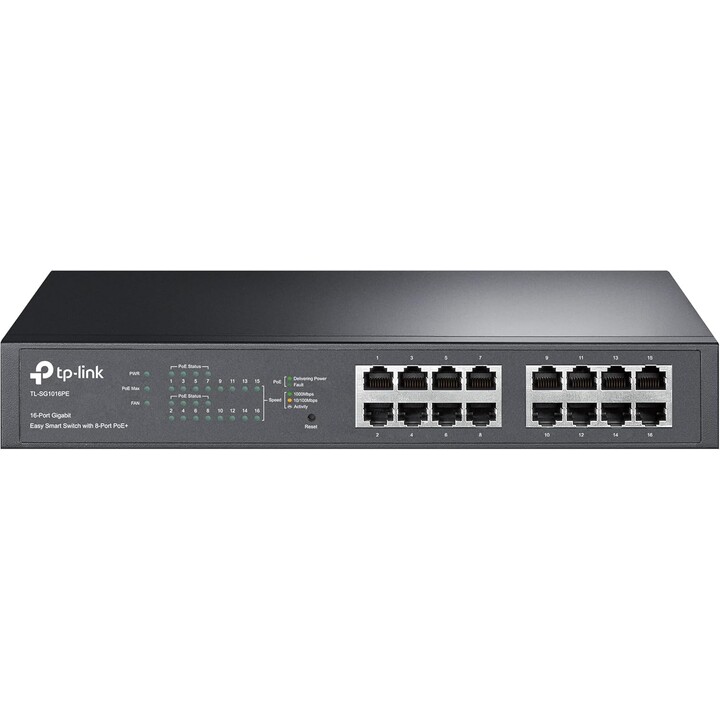

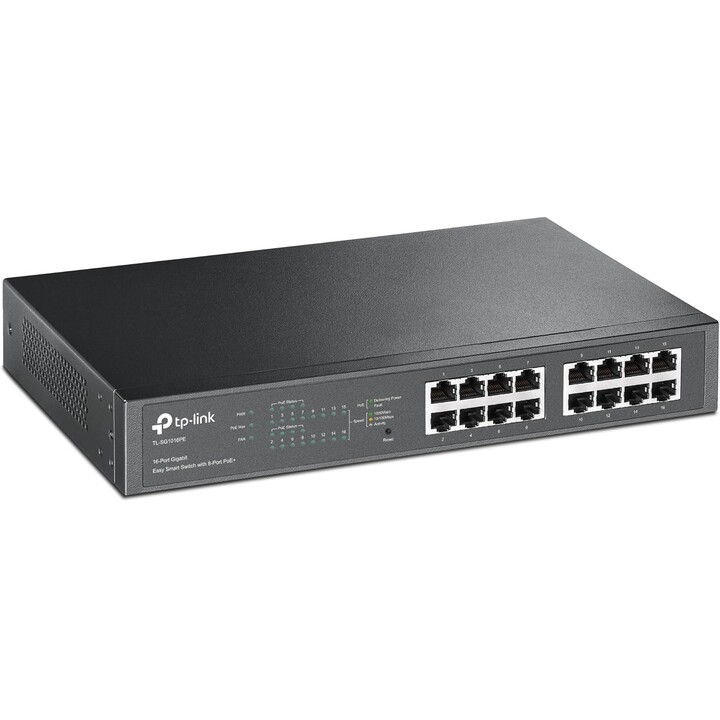

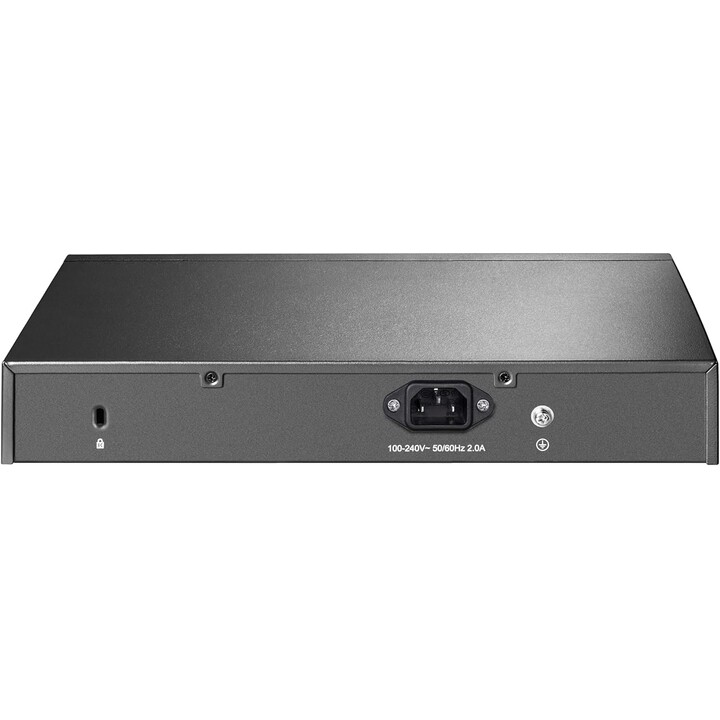

TP-LINK TL-SG1016PE Managed Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)

Description

TP-Link TL-SG1016PE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-mountable, 1U

Key product points

Managed L2 Web-based Administration

Quality of Service (QoS) support

Number of basic RJ-45 Ethernet switching ports: 16

Cat3, Cat4, Cat5, Cat5e, Cat6 10BASE-T, 100BASE-TX, 1000BASE-T

MAC Address Table: 8000 entries Switching Capacity: 32 Gbit/s

1U Rack Mount

AC/PoE Power Supply Included Power over Ethernet (PoE)

Management Features

Switch Type: Managed

Switch layer: L2

Quality of Service (QoS) support: Yes

Web-based administration: Yes

Ports and Interfaces

Number of basic RJ-45 Ethernet switching ports: 16

Basic RJ-45 Ethernet switching ports: Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper), number of ports: 16

Electrical connector: AC-in power connector

Connection

Network standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G Support: No

Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Supported cable types: Cat3, Cat4, Cat5, Cat5e, Cat6

Port mirroring: Yes

Flow control support: Yes

Adding links: Yes

Storm Transmission Control: Yes

Auto MDI / MDI-X: Si

Self-negotiation: Yes

VLAN Support: Yes

Virtual LAN Features: Tagged VLAN, Port-based VLAN

Number of VLANs: 4000

Data transmission

Switching capacity: 32 Gbit/s

Forwarding rate: 23.8 Mpps

MAC Address Table: 8000 entries

Save and Forward: Yes

Number of queues: 4

Jumbo Frames, support: Yes

Jumbo Frames: 10000

Packet buffer: 4.1 MB

Security

IGMP: Yes

Design

Rack mount: Yes

Stackable: No

Form factor: 1U

Product color: Black

Housing material: Metal

LED indicators: Yes

Number of fans: 1 Fan(s)

Performance

Supported operating systems: Windows

Maximum cable length: 100 m

Power control

Power source: AC/PoE

Power supply included: Yes

AC input voltage: 100 - 240 V

AC input frequency: 50/60 Hz

Power consumption (max): 124.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes

Power over Ethernet Plus (PoE+) Number of ports: 8

Power per Power over Ethernet (PoE) port: 30 W

Power over Ethernet (PoE) Budget: 110 W

Environmental conditions

Operating temperature range: 0 - 40 °C

Storage temperature range: -40 - 70 °C

Relative humidity range for operation: 10 - 90%

Relative humidity range during storage: 5 - 90%

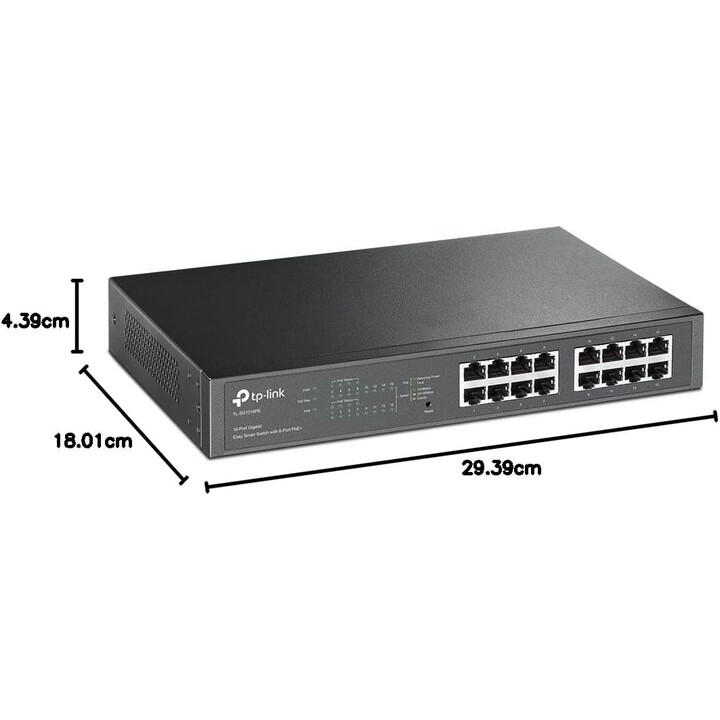

Weight and dimensions

Ancho: 294 mm

Depth: 180 mm

Height: 44 mm

Package contents

Cables included: AC

User Manual: Yes

Mounting shelf: Yes

Packaging

Packaging Type: Box

CD Source: Yes

Package width: 250 mm

Package depth: 400 mm

Package height: 80 mm

Package weight: 2.28 kg

Sustainability

Sustainability compliance: Yes

Regulatory approvals

Certificates of conformity: CE, US Federal Communications Commission (FCC), RoHS
