HUAWEI
Reference: SUN2000-10KTL-M1-HC
EAN: 5905515609968
Condition: New
€1,449.05
VAT included
Without tax: €1,197.56
  • 10kW three-phase solar inverter
  • Transformerless design for high efficiency up to 98.6%
  • Supports connection with or without battery
  • Compact and flexible installation
  • Maximum DC power: 15,000W
Reliable and efficient solution for domestic hybrid solar installations.
Share


Buy it now and receive it between Mon 28 and Fri 2 with GLS o Correos Express España €149.90

Up to 3 years warranty 100% secure payment 14 days return

Huawei FusionSolar inverter // 3-phase, 2-MPPT High Current, built-in communication (RS485, WLAN via Smart Dongle), DC disconnec

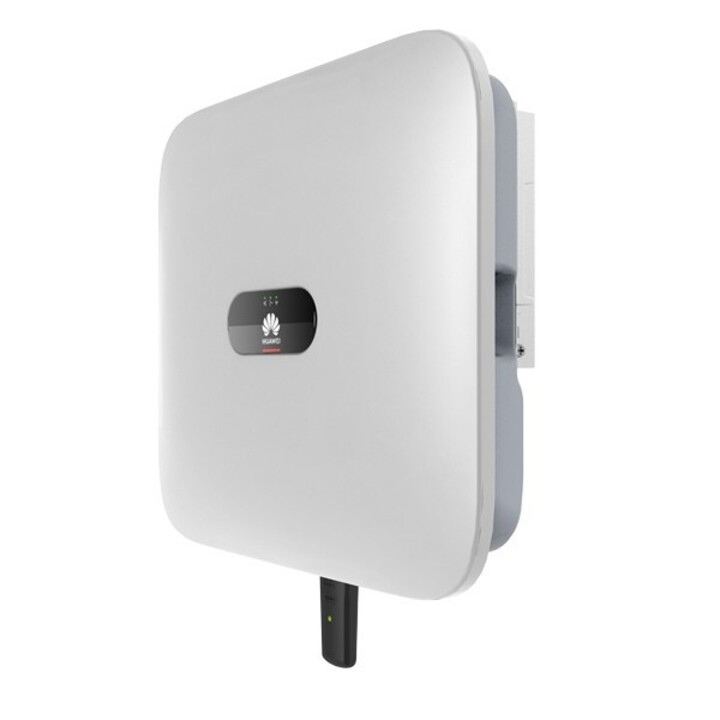

The Huawei SUN2000-10KTL-M1-HC is a high-performance 3-phase string inverter designed for residential and commercial solar installations. With a rated output power of 10 kW, it supports two MPPT trackers capable of handling high current inputs up to 20A per string, making it ideal for high-power modules and bifacial panels. The inverter features built-in RS485 communication and can be connected to WLAN via an optional Smart Dongle for remote monitoring and firmware updates.

Safety and reliability are enhanced with an integrated DC disconnect switch, eliminating the need for an external DC isolator. The inverter achieves a maximum efficiency of 98.6% and a European efficiency of 98.1%, ensuring optimal energy yield. Its compact and lightweight design simplifies installation, while the natural convection cooling ensures silent operation. The device is compatible with Huawei's FusionSolar monitoring platform for comprehensive system management.

Rated Output Power10,000 W
Max. Apparent Power11,000 VA
Max. Input Voltage1,100 V
MPPT Voltage Range200 V – 1,000 V
Number of MPPT Trackers2
Max. Input Current per MPPT20 A
Max. Short Circuit Current per MPPT30 A
AC Grid Connection3-phase, 400 V (L/N/PE)
Max. Efficiency98.6%
European Efficiency98.1%
CommunicationRS485, WLAN (via Smart Dongle)
DC DisconnectIntegrated
Protection ClassIP65
Operating Temperature Range-25°C to +60°C
Dimensions (W x H x D)525 x 470 x 146 mm
Weight18.5 kg

  • Brand
  • Reference
    SUN2000-10KTL-M1-HC
  • In stock
    12 Items
  • Condition
    New
  • EAN13
    5905515609968
  • MPN
    SUN2000-10KTL-M1-HC

Brand HUAWEI
Country China
Address of origin G1, Huawei Industrial Base, Bantian, Distrito Longgang, Shenzhen 518129
EU responsible person Huawei Technologies Co., Ltd.
Address Huawei Technologies Düsseldorf GmbH, Hansaallee 205, Düsseldorf, Germany, 40549
Email [email protected]
Phone 4921197519400
