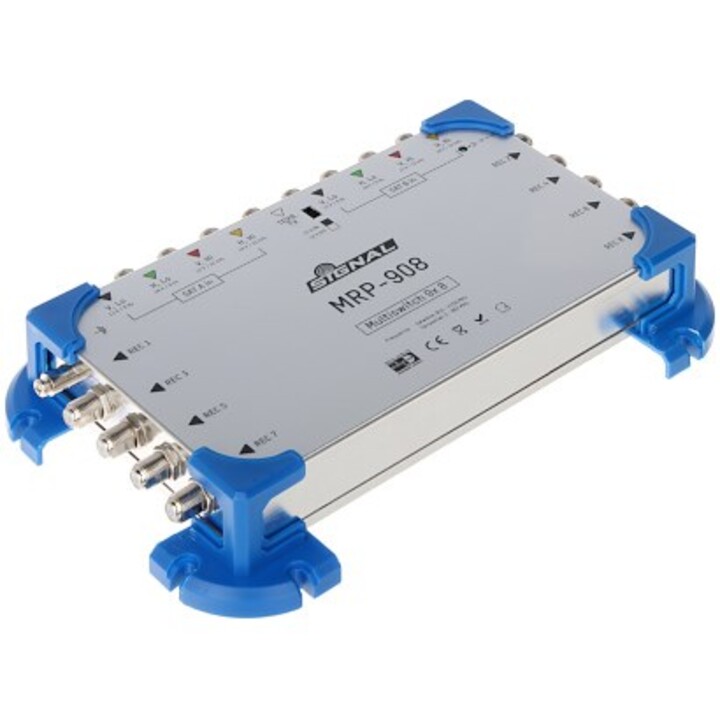

MRP-908 Multiswitch, 9 signal inputs / 8 signal outputs
MRP-908 Multiswitch, 9 signal inputs / 8 signal outputs
The Signal MRP-908 is a professional-grade multiswitch designed for distributing satellite IF, terrestrial, and FM signals to multiple receivers. With 9 inputs (8 for satellite IF and 1 for terrestrial/FM) and 8 outputs, it enables efficient signal routing in multi-room installations. The unit supports a wide frequency range from 5 to 2400 MHz, covering all common satellite and terrestrial bands.
Featuring a low noise figure of less than 1 dB typical, the MRP-908 ensures minimal signal degradation. High isolation between outputs (>25 dB) prevents interference between connected devices. The multiswitch is powered via an external power supply and is compatible with DiSEqC control protocols for automated switching. Its compact design allows for easy mounting in distribution racks or on walls.
| Number of Inputs | 9 (8 satellite IF, 1 terrestrial/FM) |
| Number of Outputs | 8 |
| Frequency Range | 5 - 2400 MHz |
| Noise Figure | < 1 dB (typical) |
| Output Isolation | > 25 dB |
| Control Protocol | DiSEqC 1.0/2.0 |
| Power Supply | External 12V DC |
| Dimensions | 280 x 130 x 45 mm |
| Weight | 0.8 kg |
-
Brand
-
ReferenceMRP-908
-
ConditionNew
-
EAN135907634599205
-
MPNMRP-908
-
Consumo500 mA máx.
| Brand | Signal |
|---|---|
| Country | Poland |
| Address of origin | Dipol Sp.j., ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| EU responsible person | Dipol Sp.j. |
| Address | ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| [email protected] | |
| Phone | +48 12 644 29 13 |
