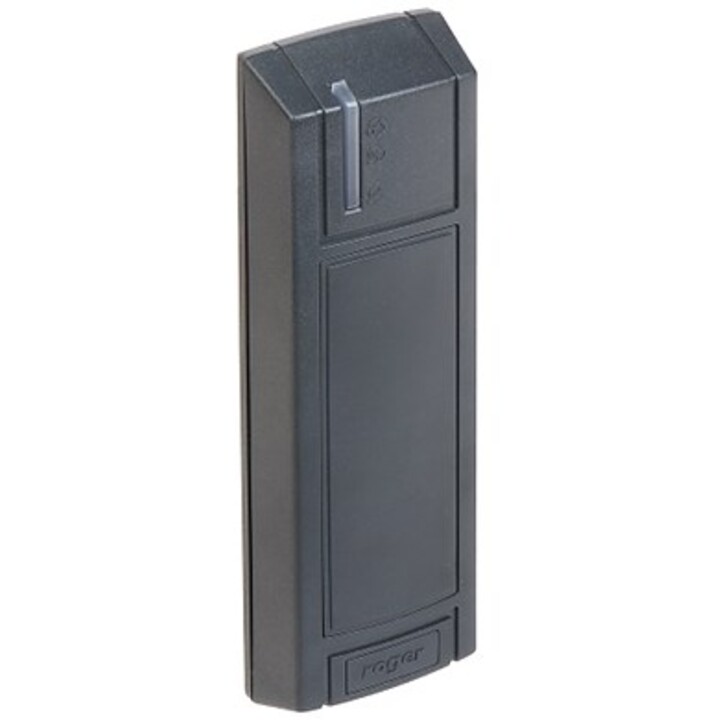

Access Controller PR312EM-BK-G

The Roger PR312EM-BK-G access controller is designed for robust and flexible security management. Featuring RS-485 communication and the ability to connect up to two XM-2 I/O extension modules, it supports a wide range of configurations for standalone operation. This controller accommodates up to 4000 indexed users and stores up to 32000 events, ensuring comprehensive access tracking.

It supports unique EM 125kHz card reading with a maximum range of 15 cm and offers multiple identification modes including card only, PIN only, or a combination of both. The device also allows integration with biometric readers (RFT1000 option) for enhanced security.

With programmable inputs and outputs, including NO/NC lines, transistor outputs, and relay outputs, the PR312EM-BK-G can be tailored to various access control scenarios. It supports 99 time schedules, 250 access groups, and features tamper protection with LED and sound signaling.

Operating within a temperature range of -25 °C to 60 °C and relative humidity of 10% to 95% (non-condensing), this controller is suitable for diverse environments. Its compact dimensions (152.5 x 46 x 23 mm standard enclosure) and lightweight design (0.18 kg) make it easy to install.

System management is flexible via WAN/LAN networks or COM/USB serial ports, with options to divide the system into subsystems. The device supports dual-user and dual identification modes, door mode configurations, and integration with alarm systems through I/O lines, making it a comprehensive solution for access control needs.
