Allnet MSR Zentrale ALL5000V2 Included. 16 Sensor Ports and 19 for IP Device Automation

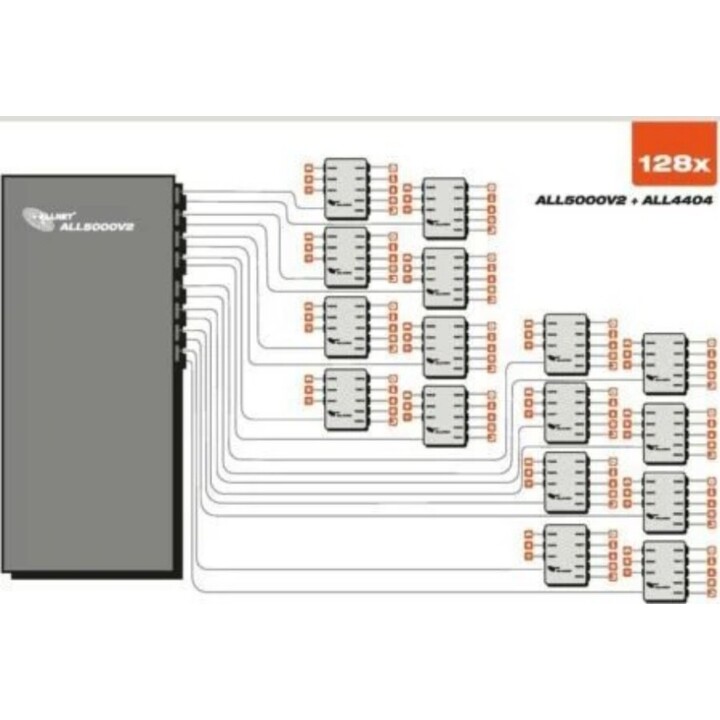

The Allnet MSR Central Unit ALL5000V2 (code 4038816206213) is the main control server for IP building automation, equipped with 16 RJ45 I2C ports for sensors and actuators supporting up to 128 devices via ALL4404 multiplexing hubs, designed to monitor temperature, humidity, pressure, and execute switching commands. Its 19" 1U chassis (440 x 230 x 44 mm) includes a two-line LCD display for status/IP, a front USB port for optional dongles, and a redundant 12V DC power supply with a base consumption under 3 W, facilitating centralized management via the web from any network-connected device.

The open-source Linux operating system allows unlimited scenarios such as lighting/ventilation control based on ambient conditions, automatic irrigation, gas/water alarms, or room heating regulation, accessible globally via internet/smartphone regardless of the physical location of the devices. It supports relays, contacts, and third-party modules via standard protocols, with an intuitive web interface for scheduling, thresholds, and conditional logic without complex programming.

Operates from 5°C to 40°C with 10-85% humidity (non-condensing), CE/RoHS certifications, and 10/100 Mbps Ethernet for integration into existing networks, modular expansion for complex commercial or residential buildings. It comes with rack mounting accessories and manual, transforming measurements into smart automation through graphical trend displays and push alerts.
