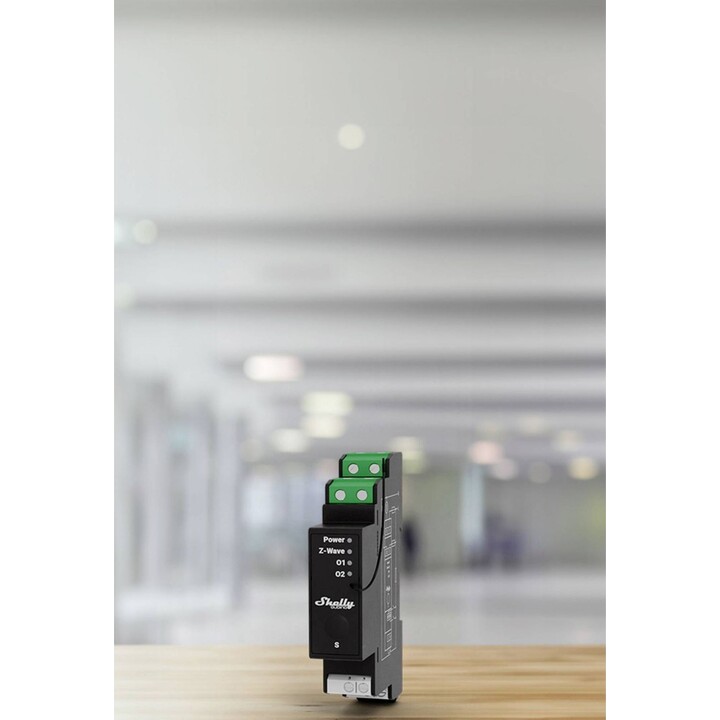

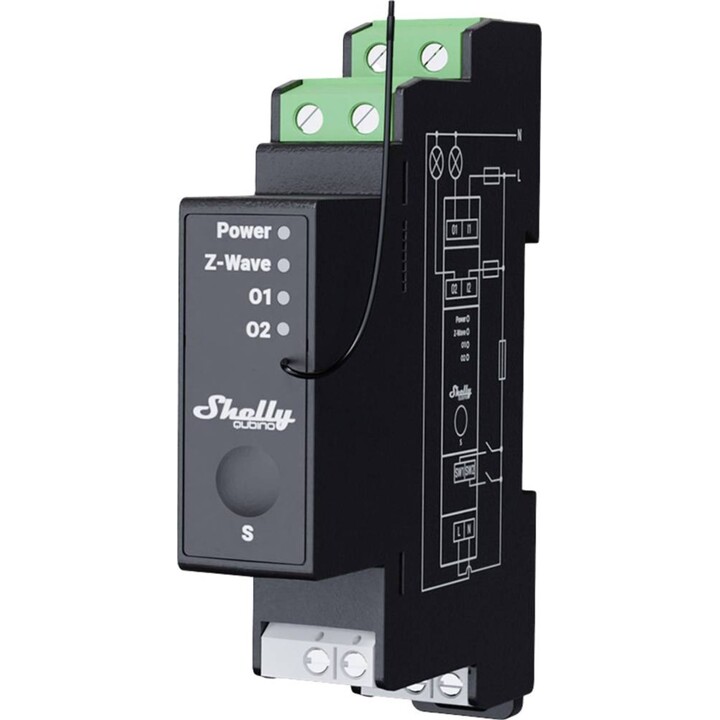

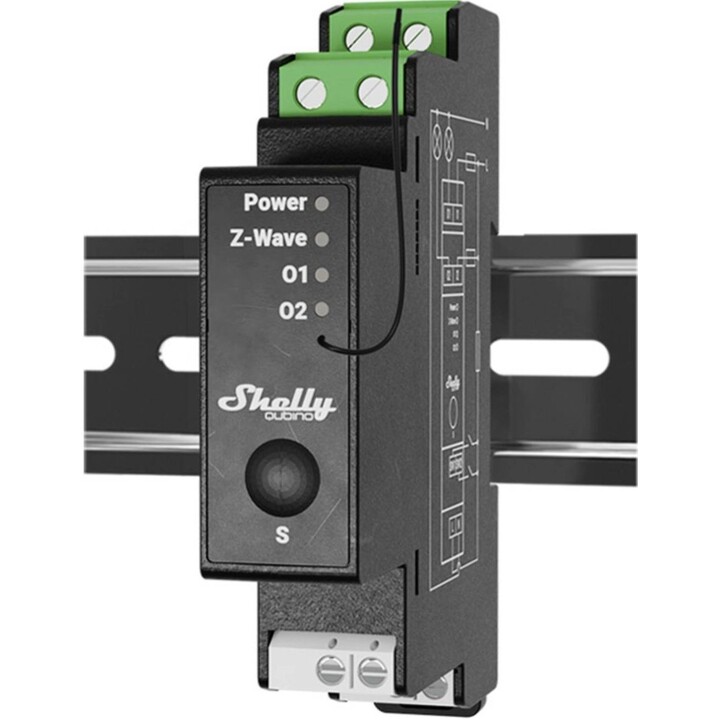

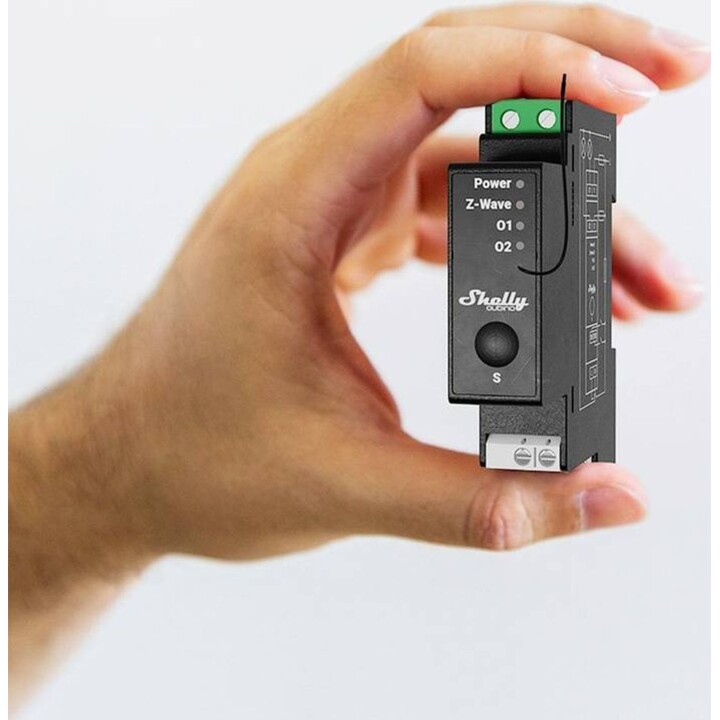

Shelly Relais "Wave Pro 2PM" max 25A Z-Wave DIN-Rail
Shelly Relais "Wave Pro 2PM" max 25A Z-Wave DIN-Rail
The Shelly Wave Pro 2PM is a professional-grade Z-Wave smart relay designed for DIN rail installation in electrical panels. It features two independent channels, each capable of switching up to 25A, making it suitable for controlling heavy loads like water heaters, pumps, or large lighting circuits. With built-in power monitoring, you can track energy consumption in real-time, including voltage, current, power, and cumulative kWh.
This device is Z-Wave Plus certified, ensuring reliable and secure communication with a wide range of Z-Wave hubs and controllers. The DIN rail form factor simplifies integration into existing electrical setups, while the compact design saves space. The Wave Pro 2PM also includes overload protection and can be used for both resistive and inductive loads, offering flexibility for various automation scenarios.
| Brand | Shelly |
| Model | Wave Pro 2PM |
| Product Type | Z-Wave Smart Relay |
| Mounting | DIN Rail |
| Number of Channels | 2 |
| Max Current per Channel | 25A |
| Max Voltage | 240 VAC |
| Power Monitoring | Yes (W, VA, V, mA, kWh) |
| Wireless Protocol | Z-Wave Plus (800 series) |
| Frequency | 868.4 MHz (EU) / 908.4 MHz (US) |
| Range | Up to 40 m indoors |
| Overload Protection | Yes |
| Operating Temperature | -20°C to 40°C |
| Dimensions | 18 x 90 x 69 mm |
| Weight | 60 g |
| Certifications | CE, Z-Wave Plus |
-
Connected productYes
| Brand | Shelly |
|---|---|
| Country | Bulgary |
| Address of origin | 1407 Sofia, 51 Cherni vrah Blvd., building 3, floor 2-3 |
| EU responsible person | Shelly Group |
| Address | 103 Cherni vrah Blvd, Sofia, Bulgaria, 1407 |
| [email protected] | |
| Phone | 35924933366 |
