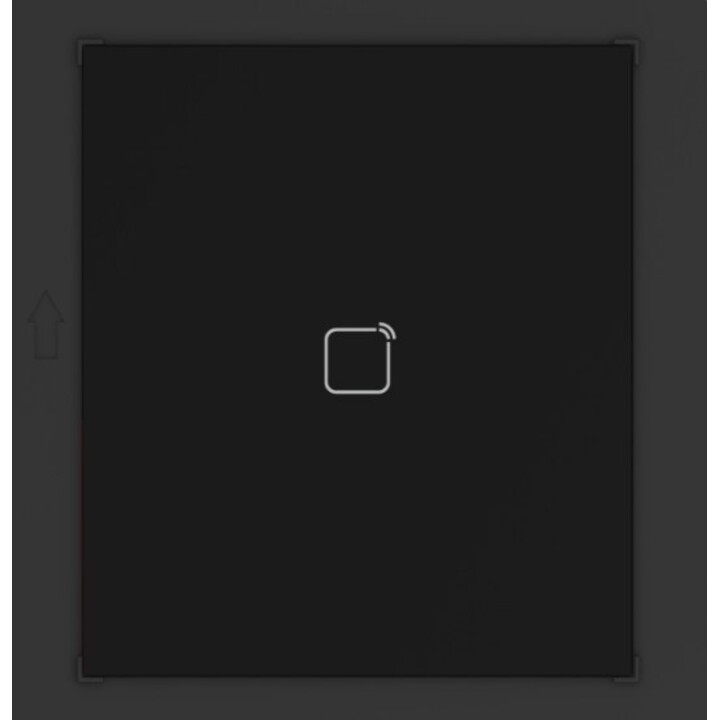

HIKVISION DS-KD-M reader module

The Hikvision DS-KD-M is a card reader module designed for the KD8 series video intercom system. It operates at 13.56 MHz using MIFARE technology, providing a read range of up to 5 cm. The module is intended for outdoor use with an IP65 rating, ensuring resistance to water and dust. It requires connection to a compatible camera module (DS-KD8003-IME1 or DS-KD8003-IME2) for power and functionality.

This module supports Hikvision DS-K7M102-M identification cards and can be integrated with up to 8 modules in a single intercom setup. It features a simple black plastic design and operates reliably in temperatures from -40°C to 60°C and humidity levels of 10-95%. The module measures 98.5 mm x 100 mm x 33.7 mm and weighs 170 g.
