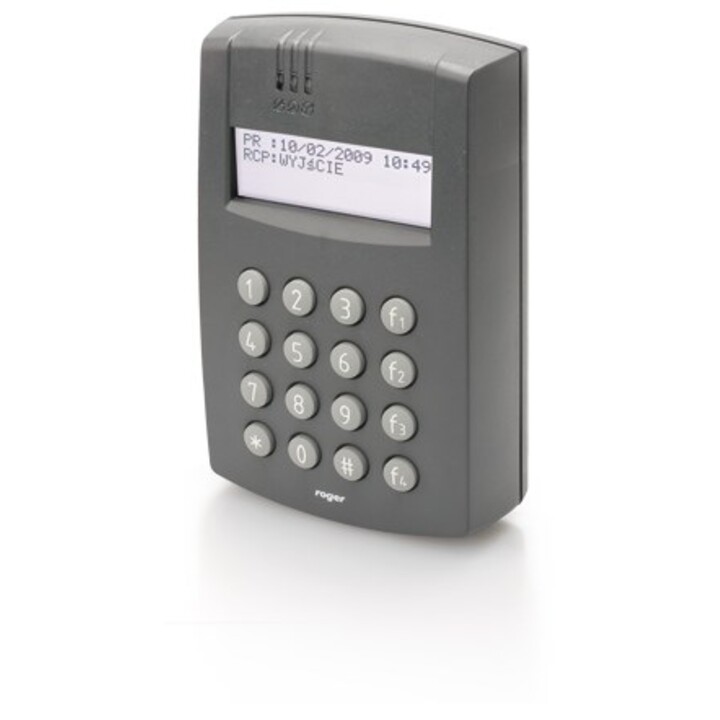

Roger PR602LCD-DT-I Access Controller

The Roger PR602LCD-DT-I (model 3485) is a professional access controller designed for secure and efficient access management. Featuring a clear 4-line LCD display and a silicone keyboard, it supports multiple identification modes including card, PIN, or a combination of both, ensuring flexible security options.

This device operates at 12 VDC with a current consumption of 100 mA in standby mode. It supports up to 4000 users and includes a relay output with a maximum load of 1.5 A/30 V. The RFID reading range is up to 12 cm, compatible with 125 kHz frequency cards. The controller also features an event buffer capable of storing 250,000 events.

Designed for outdoor use, it meets environmental class IV standards, operating reliably in temperatures from -25°C to +60°C and relative humidity of 10-95% (non-condensing). The unit is equipped with a sabotage contact and has a compact size of 170 x 110 x 41.2 mm, weighing approximately 410 grams.

Every product includes a receipt, and customers can request an invoice if needed. The Roger PR602LCD-DT-I is a robust and versatile solution for access control systems, suitable for standalone operation or integration into larger systems.
