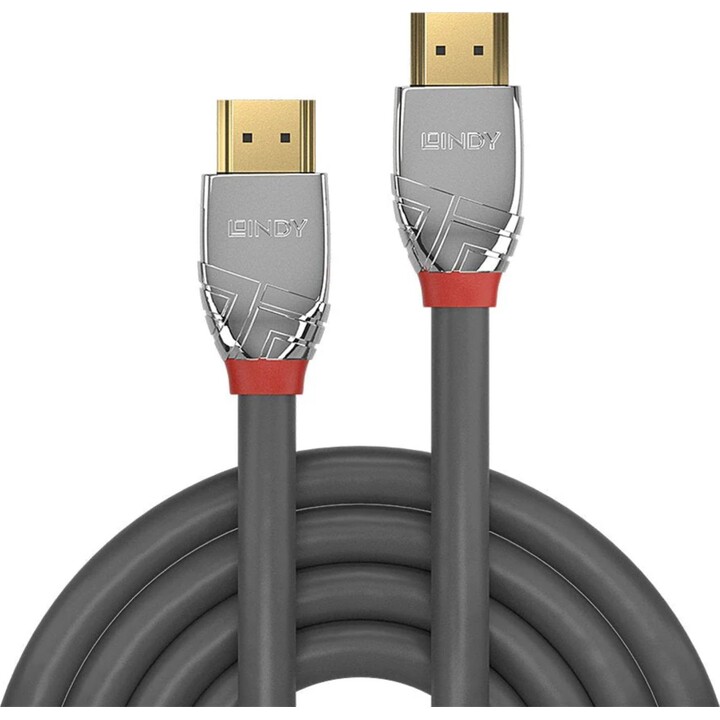

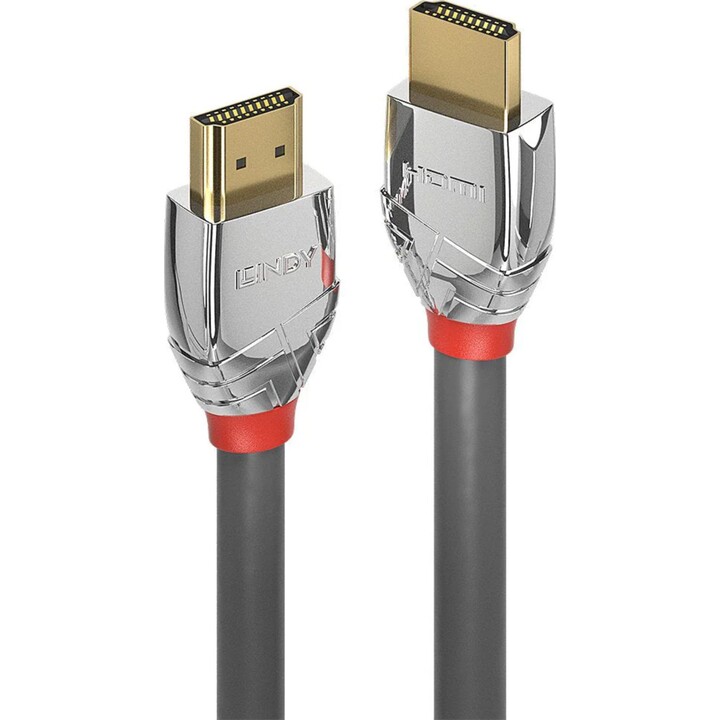

7.5m standard hdmi cable chrome line

From the Lines cable connectivity concept developed by Lindy, Cromo Line Standard HDMI® cables are high performance, designer connections that combine premium construction materials with striking connector architecture.

Cromo Line Standard HDMI® cables feature triple shielded construction with 26AWG tinned copper conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Cromo Line HDMI® cables are also capable of transmitting 32 channel audio and Dolby® True HD.

Cromo Line cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.

The HDMI® specification is supported for 10.2Gbps bandwidth capacity in cable lengths above 5m. Any cables below 5m are classified as high speed, any lengths above 5m are standard cables.

Cromo Line HDMI® cables are available in lengths from 0.3m to 10m.

Connectors

Connector A: HDMI® Type A Male

Connector B: HDMI® Type A Male

Housing Material: Chrome Plated ABS Plastic

Connector Plating: 24K Gold 3µm

Pin Construction: Phosphor Copper

Pin Plating: 24K Gold 15µm

Dimensions, HDMI® Connector (approx.) WxDxH: 21.4x41.4x12.7mm (0.84x1.63x0.5in)

Cable Construction

Length: 7.5m (24.61ft)

Standard: Standard HDMI® with Ethernet

Colour: Grey

Type: Round

Jacket Diameter: 8.5mm (0.33in)

Jacket Material: PVC

Conductor Material: Tin plated copper

Conductor Gauge: 26AWG

Shielding: Copper Braid, 85%

Specifications

Supported Bandwidth: 10.2 Gbps

Maximum Resolution: 4096x2160@60Hz 4:2:0 8bit

Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB

Minimum Bend Radius: 60mm (2.36in)

Operating Temperature: -10°C - 80°C (14°F - 176°F)

Storage Temperature: -10°C - 80°C (14°F - 176°F)

ATC Approved: Yes
