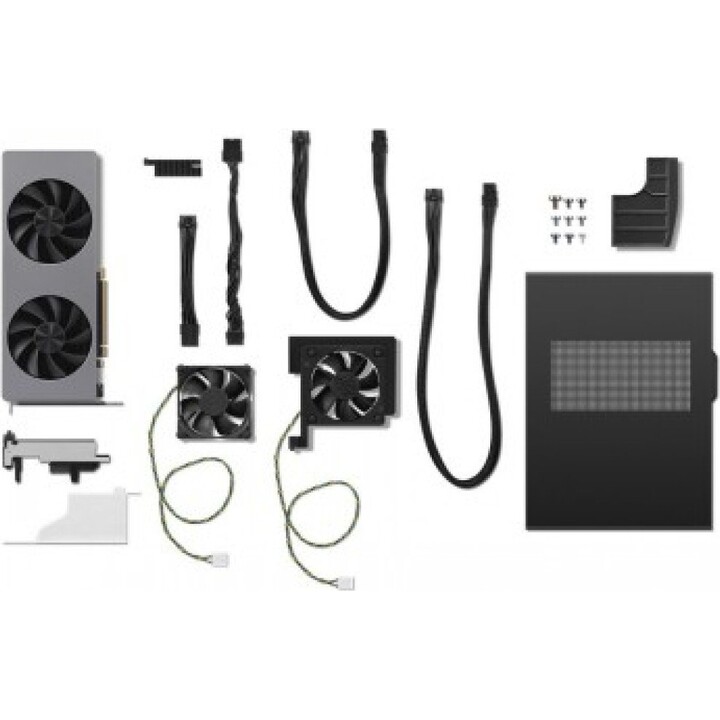

NVIDIA GeForce RTX 5070 12 GB GDDR7

GPU, memory and power

• Uses a GeForce RTX 5070 with support for DirectX 12 Ultimate, OpenGL 4.6, NVIDIA G-SYNC and VR, ready for modern gaming and virtual reality applications.

• Includes 12GB of GDDR7 over 192-bit bus, with maximum bandwidth of 672GB/s, providing a very high data feed for heavy textures and 4K work.

• Supports maximum 7680×4320 (8K) resolution and up to 4 simultaneous displays, suitable for multi-monitor work and gaming setups.

Connectivity and form factor

• Video outputs: 3× DisplayPort + 1× HDMI, all supporting 4K/8K, HDR and HDCP 2.3 for protected playback.

• PCI Express 5.0 x8 interface, ensuring plenty of bandwidth on modern motherboards and good compatibility with Lenovo workstations (ThinkStation P2/P3/P5/P7/P8) and other systems.

• 2-fan design with active cooling, dimensions approx. 268.6 × 104.9 × 50 mm and weight 1.08 kg, typical dual-slot card form factor.

Power consumption and requirements

• Maximum power consumption 250 W, with power supply recommendation of at least 650 W, which makes it reasonable for many mid-to-high-end power supplies you already use in your builds.

• Maximum operating temperature of 90°C, with full certifications (CE, FCC, RoHS, etc.), intended for heavy use in ThinkStation workstations and enthusiast PCs.
