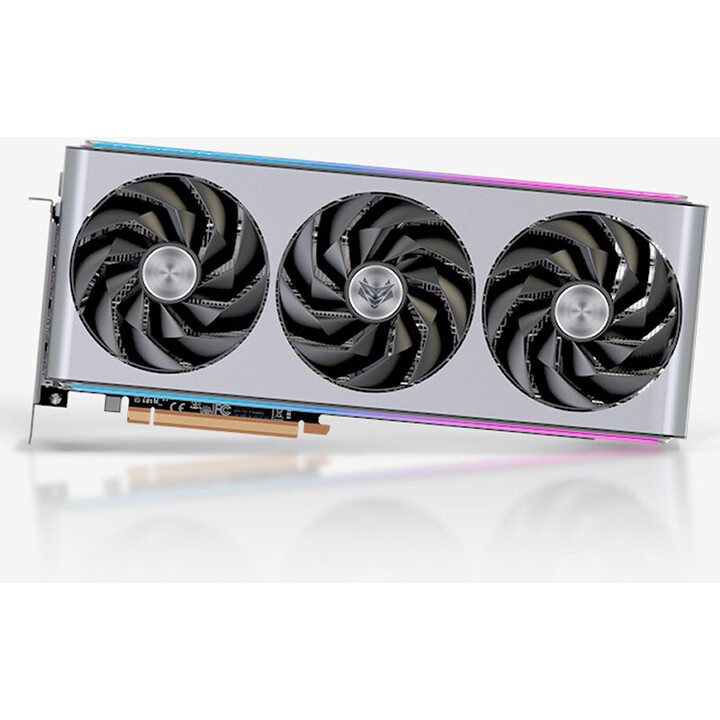

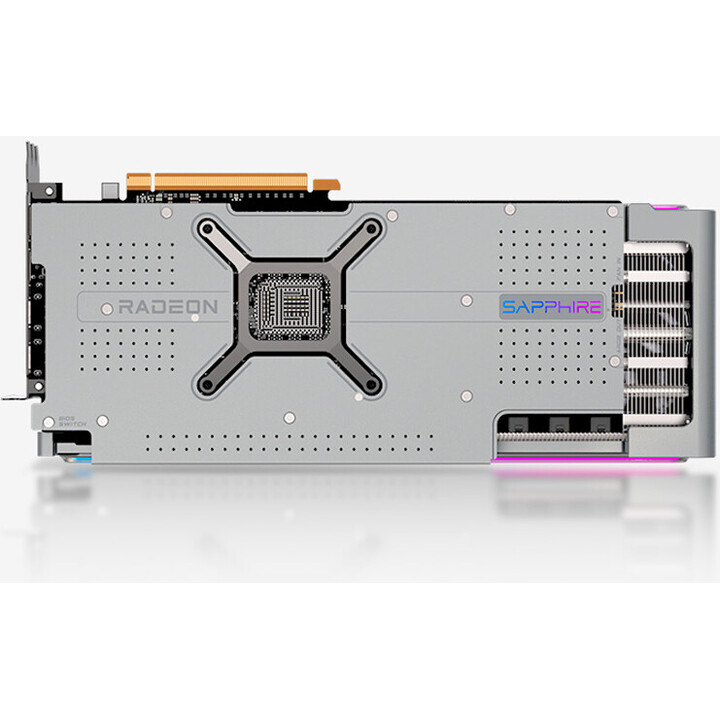

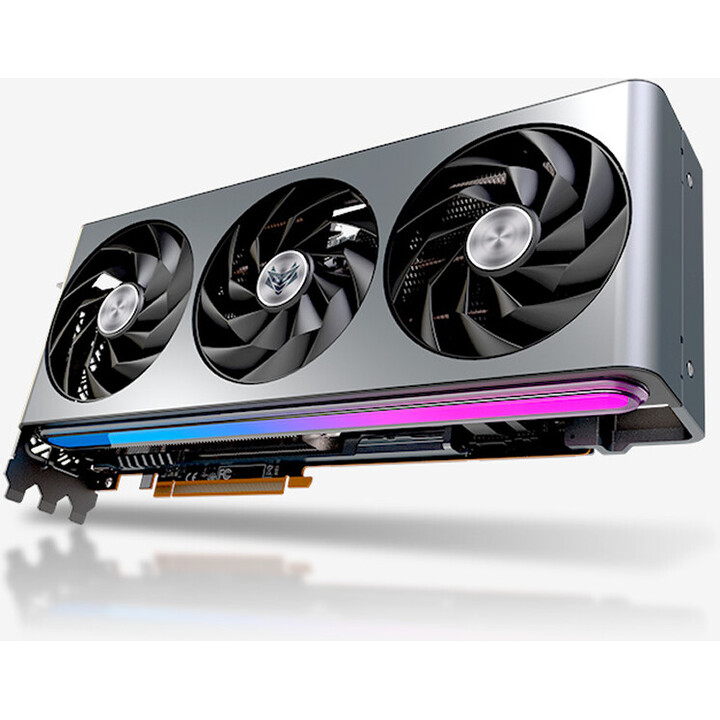

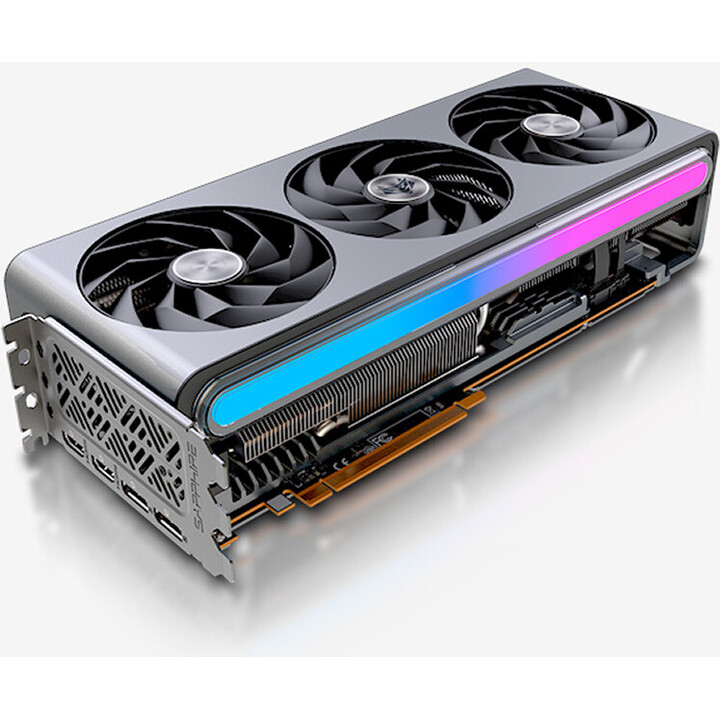

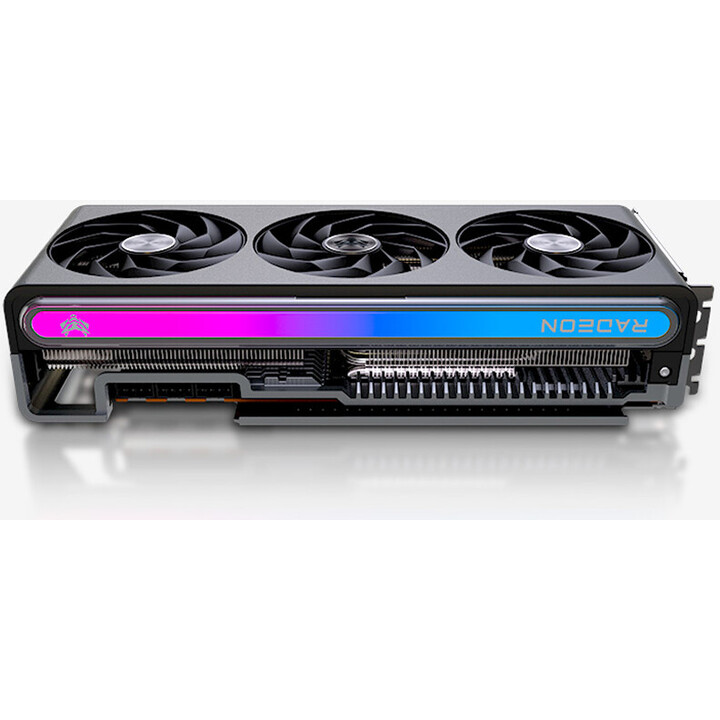

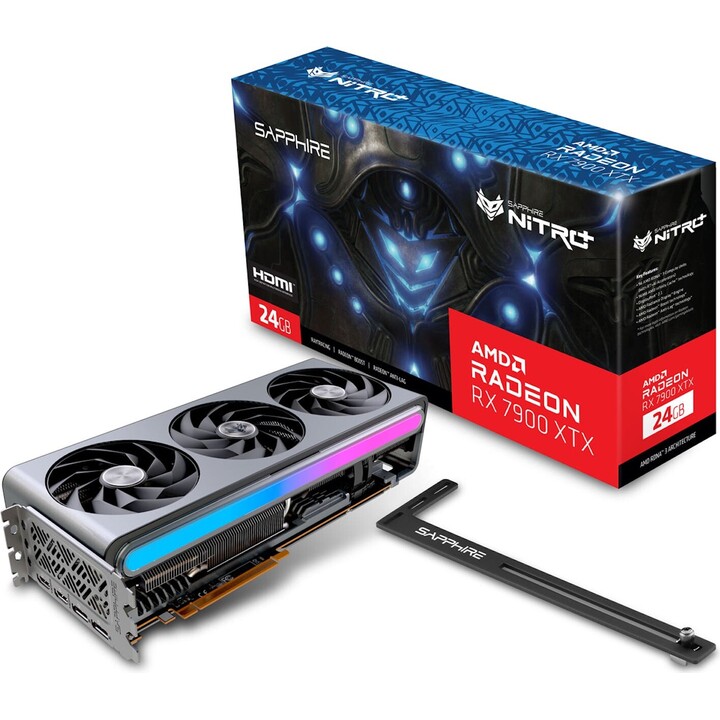

Sapphire Nitro+ Radeon RX 7900 XTX Gaming OC Vapor-X 24GB GDDR6

Features

GPU

• AMD Radeon? RX 7900 XTX graphics card
• 5nm GPU
• AMD RDNA? 3 Architecture

Engine Clock

• Boost Clock: up to 2680 MHz
• Game clock: up to 2510 MHz

Stream Processors

• 6144

counting units

• 96 CU (with RT+AI boosters)

Infinity Cache

• 96 MB

lightning accelerators

• 96

Memory/Bus size

• 24 GB/384 bits GDDR6

memory clock

• 20 Gbps effective

screens

• Maximum 4 screens

Resolution

• HDMI: 7680?4320
• DisplayPort 2.1: 7680 4320

Interface

• PCI Express 4.0 x16

Output

• 2xHDMI
• 2 display ports

BIOS support

• Dual UEFI

game index

• 4K

Sapphire Features

• dual bios
• TriXX Softswitch
• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• fuse protection
• Tri-X cooling technology
• Vapor-X Cooling
• High TG Copper PCB
• Optimized Composite Heatpipe
• smart fan control
• Precision fan control
• Metal back plate with ARGB
• Dual ARGB Light Bar
• Fans with two ball bearings
• Angular velocity fan blade
• Assist System Fan Control
• Die-cast aluminum-magnesium alloy frame
• Faceplate Heat Sink for VRM
• Wavy fin design
• V-shaped fin design for GPU cooling
• TriXX-compatible
• fan check
• Quick fan connection
• TriXX Impulse
• nitro glow
• External RGB LED MB Sync
• graphics card supporter
• ARGB extension cable

AMD features

• AMD RDNA? 3 Gaming Architecture
• 96 AMD RDNA? 3 compute units (with RT+AI accelerators)
• 96MB AMD Infinity Cache? Technology
• DisplayPort? 2.1
• Motor AMD Radiance Display?
• AMD Radeon? Boost Technology*
• AMD Radeon? Anti-Lag Technology**
• 24 GB GDDR6 on 384-bit memory bus
• PCI? Express 4.0 Ready
• AMD FidelityFX? Technologies*
• AMD FidelityFX? Super Resolution Technology*
• Microsoft DirectX? 12 latest
• Microsoft Direct Storage
• Vulkan? optimized
• AMD Intelligent Technologies*
• AMD Software: Adrenalin Edition? Application
• AMD noise suppression*
• AMD Privacy View*
• AMD Radeon? Super Resolution Technology*
• Link AMD*
• AMD FreeSync? technology

Cooling

• 3 fans
• Vapor-X Cooling

form factor

• 3.5 slot, ATX
• Dimension: 320(L) X 135.75(W) X 71.6(H)mm

power consumption

• Total power of the plate of 420 W

SO

• Linux?, Windows 10 and Windows 11. A 64-bit operating system is required

System Requirements

• 800 watt minimum power supply
• 3 8-pin power connectors.
• A PCI Express? based PC with an available X16 lane graphics slot on the motherboard is required.
• Minimum 8GB of system memory.±16GB is recommended.
