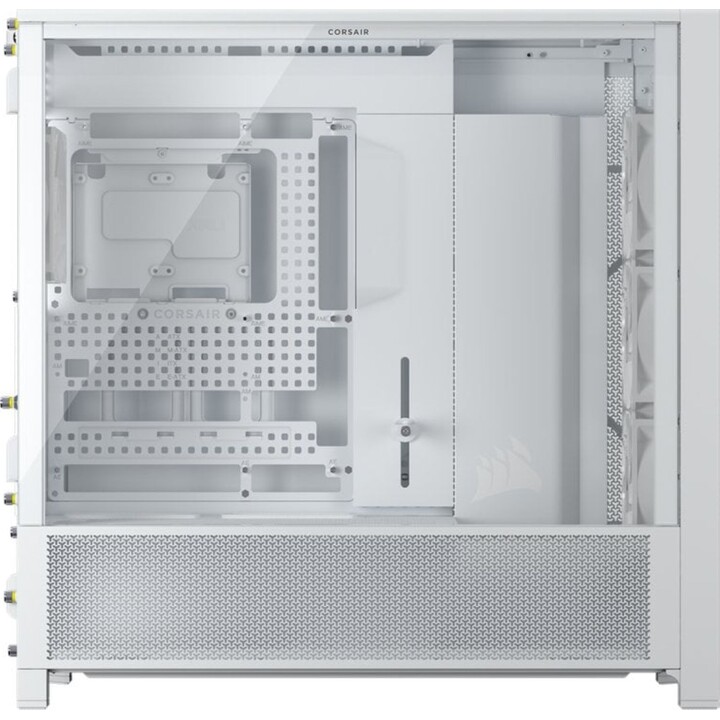

Corsair FRAME 5000D RS PC Tower E-ATX Tempered Glass USB-C Tower White

Create the high-airflow, low-temperature PC of your dreams with the CORSAIR FRAME 5000D High Airflow Chassis, featuring the innovative FRAME modular chassis system and offering unprecedented flexibility to customize your PC to perfection. The InfiniRail mounting system simplifies fan installation, while support for up to a 420mm radiator and a new 3D Y-pattern airflow front panel ensure cool air is precisely directed where it's needed most. Increased width and length ensure compatibility with the most powerful graphics cards and cooling options, as well as reverse-connect motherboards. We provide the chassis. You create the art.

Characteristics

• FRAME Modular Chassis System: The revolutionary FRAME system gives new meaning to customization. This groundbreaking modular chassis system redefines personalization. Options include modifying the motherboard tray with aluminum bars, replacing the front I/O panel with different USB ports, and swapping the front input panel for a different look. This chassis evolves with your needs, offering numerous options for future upgrades and aesthetic changes.
• Clean lines or turbo cooling: the internal side panel near the motherboard tray can be used as a cable cover for a sleek finish, or it can be removed to mount fans on the side instead and increase cooling potential.
• 3D Y-pattern airflow panel: optimized for high airflow and minimal restrictions, with a three-dimensional perforated steel front panel and a Y-pattern that provides a low resistance path for cold air.
• 420mm top radiator support: Take your cooling to the next level with a 420mm top radiator and space for 360mm radiators at the front or side.
• InfiniRail Fan Mounting Options: Mount up to 14 120mm fans simultaneously for fast and efficient cool air intake and hot air exhaust, or easily adjust the InfiniRail fan brackets to install 140mm or 200mm fans. The combinations are endless.
• Four RS140 fans included: The RS140 PWM fans feature daisy-chain connections for easy mounting. Magnetic dome bearings minimize friction to deliver the perfect combination of high airflow and quiet operation.
• Compatible with reverse-connect motherboards: ASUS BTF, MSI Project Zero and Gigabyte Project Stealth validated with numerous openings for connectors and cables, and cable ties to keep things neat even where they're out of sight.
• Versatile connectivity: The FRAME 5000D chassis offers four USB 3.2 Gen1 Type-A ports and a front USB 3.2 Gen2 Type-C I/O panel. I/O ports have also been relocated to the bottom of the chassis for easier connection of the PC to other devices.
• Drives, drives, and more drives: drive trays included for two 3.5” hard drives or four 2.5” SSDs, which can also be completely removed to make room for custom liquid cooling components and cables.
• A little bigger: GPUs are getting bigger and hotter, so the Frame 5000D was designed to be a little longer and wider than most mid-tower cases.
• Touches of elegance: The Frame 5000D chassis includes a number of features that showcase CORSAIR's attention to detail. These include external cable management points, captive screws that won't get lost, rivets, screws and plastic components with perfectly matched colors, an attractive Frost White option, and rotating PCI slots for easy vertical GPU mounting.
• RapidRoute 2.0: The FRAME 5000D chassis comes with CORSAIR's next-generation cable routing hardware, featuring a motherboard tray with a perforated plate design that allows for custom mounting points for cable ties and buckles. It also comes with several types of cable clips, but you can 3D print your own if you prefer. Six cable tie straps and two pairs of flexible tubing are included to provide additional cable lengths and a tidy interior.

Corsair FRAME 5000 RS ARGB specifications

• Dimensions (mm): 556 x 250 x 542 mm
• Material: Steel, tempered glass
• Ventilation
  • Front: 3 x 120mm, 3 x 140mm, 2 x 200mm (3 RS140 fans included)
  • Upper: 3 x 120 mm, 3 x 140 mm
  • Side: 3 x 120 mm, 3 x 140 mm
  • PSU Cover: 2 x 120 mm
  • Lower: 2 of 120 mm
  • Rear: 1 x 120mm, 1 x 140mm (1 RS140 fan included)
• Radiator
  • Front: 360mm, 280mm, 240mm
  • Top: 420mm, 360mm, 280mm, 240mm
  • Side: 360mm, 280mm, 240mm
  • Lower: none
  • PSU Cover: None
  • Rear: 120 mm, 140 mm
• Expansion slots (main): 8 horizontal/ 3 vertical
• Motherboard (main): Mini-ITX, Micro-ATX, ATX, E-ATX (305 mm x 277 mm)
• Storage
  • 6x 2.5" SSDs
  • 2x 3.5" HDDs
• Spaces
  • PSU: 250 mm
  • CPU cooling: 175 mm
  • GPU: 450 mm
• Dust filters: Front, bottom, right, left
• Front I/O
  • 4 USB 3.2 Gen1 Type-A
  • 1 USB 3.2 Gen2 Type-C
  • 1 headset/microphone
  • Feeding
