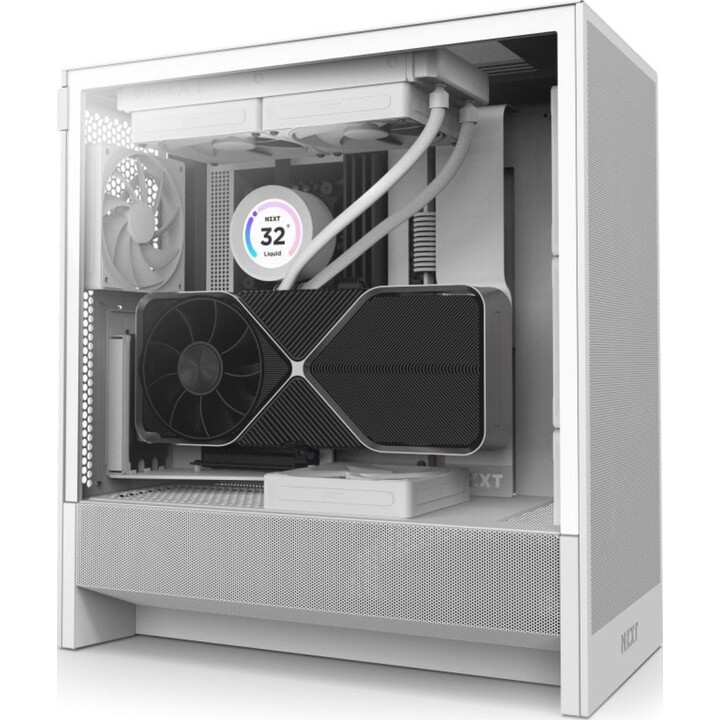

NZXT H5 Flow 2024 Midi Tower E-ATX Tempered Glass USB-C PC Tower White

TheH5 Flow?improves airflow and GPU cooling with its perforated power supply shroud, mesh panels, and large radiator support, all in a compact mid-tower form factor.

Characteristics

• H5 Flow. °Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
• More airflow for the GPU. The power supply mesh shroud maximizes airflow for two bottom-mounted 120mm fans (not included).
• It accommodates large radiators. It supports a 360mm radiator at the front and a 240mm radiator at the top for powerful liquid cooling setups.
• Optimized for airflow. ?Ultra-fine mesh panels facilitate exceptional airflow and help filter out annoying dust particles.
• Easy cable management. ?Route and conceal cables effortlessly using wide channels, hooks, and straps.
• Tool-free access. ?Easily open the front, side, and top panels without tools.
• Strong and elegant. ?Made with thick steel and tempered glass for lasting quality.

NZXT H5 Flow?Specifications

• Design
  • Form factor: Midi Tower
  • Type: PC
  • Product color: White
  • Supported motherboard form factors: ATX, EATX, micro ATX, Micro-ITX
  • Number of ports 3.5": 1
  • Number of 2.5'' bays: 2
  • Number of expansion slots: 7
  • Side window: Yes
  • Suitable for: Gaming
  • Lighting: No
  • Tempered glass panel(s): Yes
  • Dust filter: Yes
  • Cable management: Yes
  • Power button: Yes
  • Maximum CPU height for cooler: 17.5 cm
  • Maximum graphics card length: 41 cm
  • Maximum PSU length: 20 cm

• Power supply
  • Power supply included: No

• Ports and Interfaces
  • Audio input: Yes
  • Audio output: Yes
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) Type A ports: 1
  • Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1

• Cooling
  • Front fans installed: 1x 120 mm
  • Number of front fans supported (max.): 3
  • Supported front fan diameters: 120, 140 mm
  • Rear fans installed: 1x 120 mm
  • Number of rear fans supported: 2
  • Supported rear fan diameters: 120, 140 mm
  • Number of bottom fans supported (max.): 2
  • Diameter of supported secondary bottom fans: 120 mm
  • Fan speed: 1350 - 1700 RPM
  • Maximum airflow: 50.1 cfm
  • Maximum airflow of fan 2: 60.2 cfm
  • Maximum air pressure: 1.27 mmH2O
  • Maximum air pressure of fan 2: 1.05 mmH2O
  • Liquid cooling capacity: Yes
  • Compatible sizes for the front radiator: 360 mm
  • Compatible sizes for the top radiator: 240 mm

• Storage media
  • Supported hard drive sizes: 2.5", 3.5"

• Package contents
  • User manual: Yes

• Weight and dimensions
  • Width: 225 mm
  • Depth: 430 mm
  • Height: 465 mm
  • Weight: 7.43 kg
