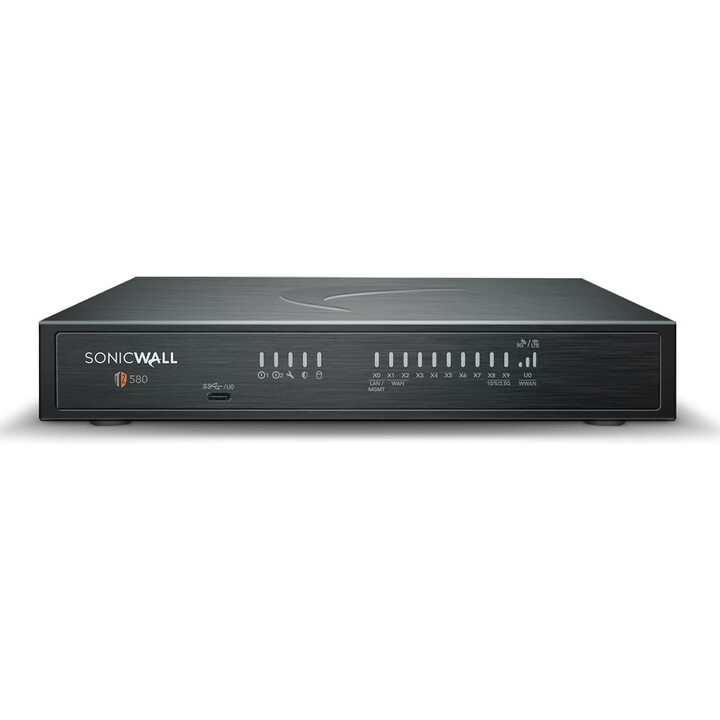

SonicWall TZ580 High-Performance Next-Generation Firewall Security Appliance

SonicWall TZ580 Firewall

The 03-SSC-1837 (0758479318378) is a professional-grade network security hardware unit engineered to provide high-fidelity data distribution and integrated threat oversight within a durable Black metallic industrial design. Driven by high-performance Gen 8 multi-core hardware architecture and the specialized SonicOS 8.0 operating system, this system utilizes a 4.5 Gbps firewall throughput threshold to manage data-intensive security multitasking and high-frequency digital workflows with total fluidity. The hardware features a specialized multi-gigabit interface array including 10G SFP+ and 2.5G/5G ports, providing a clear and precise technical workspace for secure local data processing and collaborative hardware oversight across diverse SMB, branch office, and distributed enterprise environments. Equipped with Real-Time Deep Memory Inspection (RTDMI™) and integrated SD-WAN capabilities, the system ensures rapid responsiveness and stable performance for complex network infrastructures requiring consistent signal integrity and advanced zero-day threat prevention. Housed in a durable 190 x 135 x 35 mm desktop chassis with optional redundant power supply synchronization, the unit includes professional-grade TLS 1.3 decryption and specialized ZTNA connector protocols for superior signal integrity during critical high-bandwidth technical operations. Featuring specialized Capture ATP cloud-based sandboxing and a 750 Mbps DPI-SSL inspection threshold for high-speed technical utility, this reliable hardware serves as a sophisticated centerpiece for any high-performance professional infrastructure requiring robust structural integrity and efficient security bandwidth delivery.

Technical Specifications

- Model: TZ580

- Part Number: 03-SSC-1837

- EAN: 0758479318378

- Operating System: SonicOS 8.0

- Firewall Inspection Throughput: 4.5 Gbps

- Threat Prevention Throughput: 2.2 Gbps

- Application Inspection Throughput: 2.5 Gbps

- IPS Throughput: 2.5 Gbps

- TLS/SSL Inspection/Decryption: 750 Mbps

- IPSec VPN Throughput: 2.2 Gbps

- Network Interfaces: 8 x 1GbE Cu, 2 x 10G/5G/2.5G/1G SFP+, 1 Console (Micro-USB), 1 USB (Type-C)

- Connections per Second: 20,000

- Maximum Connections (SPI): 1,400,000

- Maximum Connections (DPI): 500,000

- Site-to-Site VPN Tunnels: 250

- Encryption/Authentication: AES (128/192/256-bit), MD5, SHA-256, SHA-384, TLS 1.3

- PoE Support: Yes (Integrated PoE/PoE+ on select ports)

- Power Supply: 100-240 VAC, 50-60 Hz (12V/1.34A Adapter)

- Maximum Power Consumption: 15.6 W

- MTBF: 30.7 Years

- Dimensions: 190 mm x 135 mm x 35 mm

- Finish: Black
