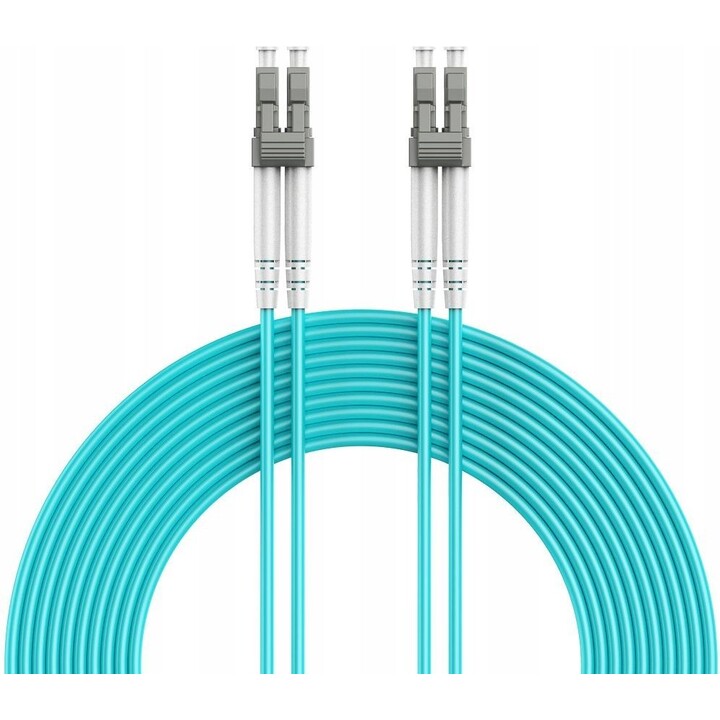

Multimode cable duplex OM4 50/125,LC/LC,7.5m

The GEMBIRD CFO-MDOM4-LC/LC-7.5M is a high-performance multimode duplex fiber optic patch cable designed for 10/40/100G network applications. With OM4 50/125µm fiber and LC/UPC connectors on both ends, it ensures reliable connectivity and minimal signal loss in data centers, enterprise networks, and high-speed computing environments.

This cable supports data rates up to 100 Gb/s and operates at wavelengths of 850/1300 nm. Its low insertion loss (≤0.3 dB) and high return loss (≥20 dB) guarantee efficient signal transmission. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in case of fire, making it suitable for enclosed spaces.

With a length of 7.5 meters and a turquoise color for easy identification, this duplex cable is ideal for connecting switches, servers, and storage area networks. It is tested for durability with pull-in and pull-out tests (1000 times) showing less than 0.3 dB change.

Características principales

• OM4 multimode fiber, 50/125µm core/cladding diameter
• Duplex transmission with LC/UPC to LC/UPC connectors
• Supports 1 Gb/s, 10 Gb/s, 25 Gb/s, 40 Gb/s, and 100 Gb/s Ethernet
• Insertion loss ≤0.3 dB, return loss ≥20 dB
• Attenuation: 3.0 dB/km at 850 nm, 1.0 dB/km at 1300 nm
• LSZH fire rating for low smoke and halogen-free safety
• Operating temperature range: -20°C to 60°C

Especificaciones

Preguntas frecuentes

What data rates does this cable support?

It supports 1 Gb/s, 10 Gb/s, 25 Gb/s, 40 Gb/s, and 100 Gb/s Ethernet, making it suitable for high-speed network applications.

What is the connector type?

The cable features LC/UPC connectors on both ends, ensuring a secure and reliable connection.

Is this cable suitable for outdoor use?

The operating temperature range is -20°C to 60°C, but it is designed for indoor use. The LSZH jacket is safe for enclosed spaces.

What is the length of the cable?

The cable is 7.5 meters long, providing flexibility for various setups.

Es para ti si...

• You need a high-speed multimode fiber patch cable for 10G/40G/100G networks.
• You require LC to LC connectivity with low insertion loss.
• You value safety with LSZH fire-rated jacket.
• You need a 7.5-meter cable for data center or enterprise connections.
