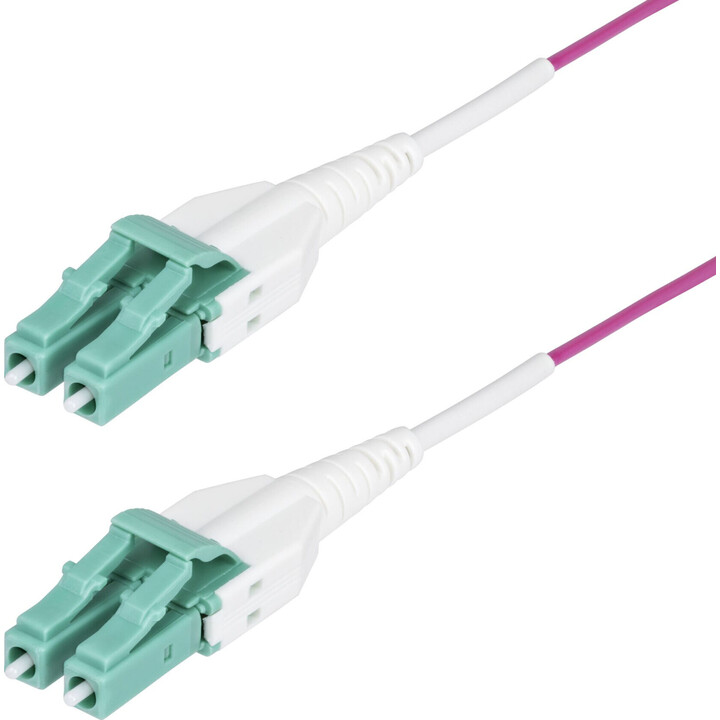

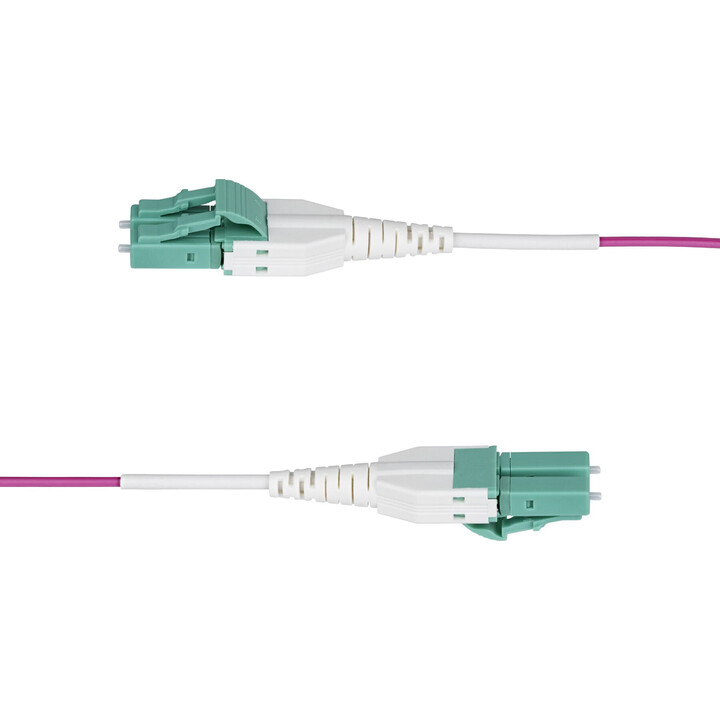

StarTech.com 10m (33ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable, Erika Violet, 50/125µm, 40G/100G, LOMMF/VCSEL, Uniboot F

This StarTech.com OM4 fiber optic cable provides reliable connectivity for 40 and 100 Gigabit networks. The Erika Violet jacket, standardized by TIA for OM4, distinguishes it from OM3/Aqua cables, eliminating guesswork in critical network setups. The compact uniboot connector design allows easy insertion and removal in high-density installations.

Built with laser-optimized multimode fiber (LOMMF), this cable is ideal for VCSEL and LED sources at 850nm and 1300nm. Precision ceramic ferrules maintain exact fiber alignment to minimize insertion loss. The LC to LC UPC polished ends significantly improve return loss characteristics compared to older PC polishing techniques.

With an OFNR (Optical Fiber Nonconductive Riser) rating, this cable is designed to minimize vertical flame propagation between building floors, supporting fire code compliance in multi-story structures. It is backward compatible with OM3 and 1/10/40 Gbps networks, ensuring reliable data transmission in legacy fiber environments.

Características principales

• 10 meters (33ft) length, LC to LC connectors
• OM4 multimode fiber, 50/125µm core/cladding
• Supports 40G/100G networks, full duplex
• Erika Violet jacket (TIA standard for OM4)
• Uniboot design for high-density installations
• OFNR riser-rated, PVC jacket
• RoHS and CE compliant

Especificaciones

Preguntas frecuentes

Is this cable compatible with 40G and 100G networks?

Yes, this OM4 cable supports data transfer rates up to 100 Gbit/s and is designed for 40G/100G networks.

What is the difference between OM4 and OM3?

OM4 has a higher modal bandwidth (2000 MHz/km at 850nm) and supports longer distances for 40G/100G. This cable is backward compatible with OM3.

Is this cable suitable for high-density installations?

Yes, the uniboot design allows for easy insertion and removal in high-density patch panels and switches.

What is the jacket rating?

The cable has an OFNR (Riser) rating, which minimizes flame propagation and is suitable for vertical runs between floors.

Es para ti si...

• You need reliable 40G/100G connectivity in data centers or enterprise networks.
• You require high-density cable management with uniboot connectors.
• You want clear identification of OM4 cabling with the Erika Violet jacket.
• You need riser-rated cable for vertical installations.
