Fanvil i501 SIP intercom for video intercom

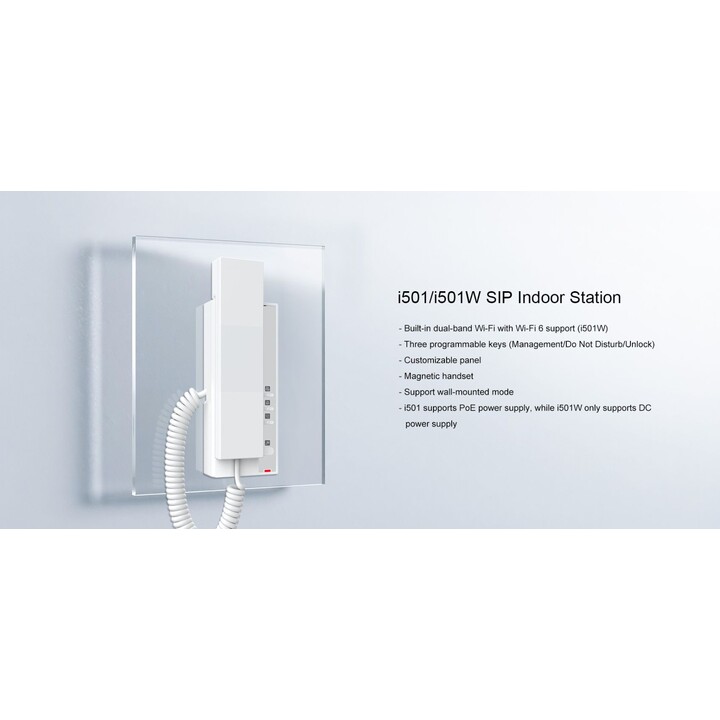

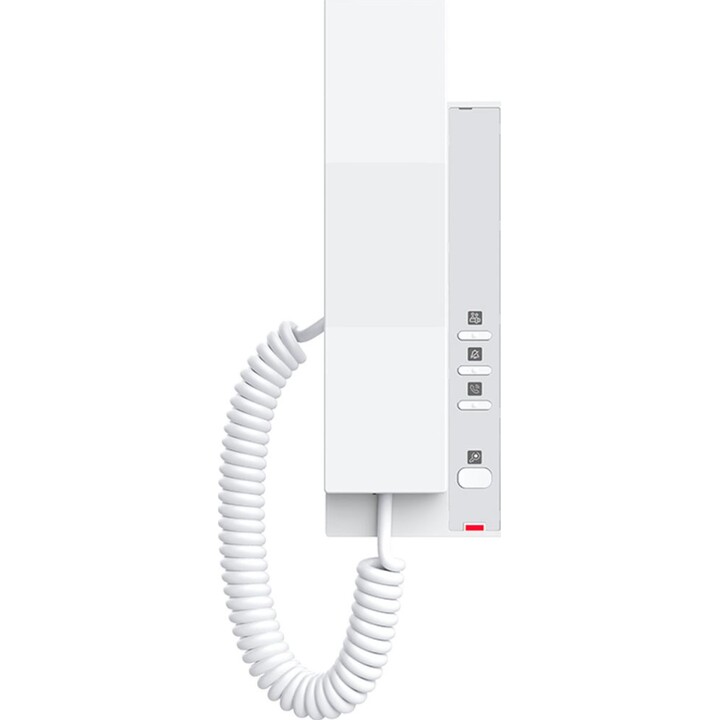

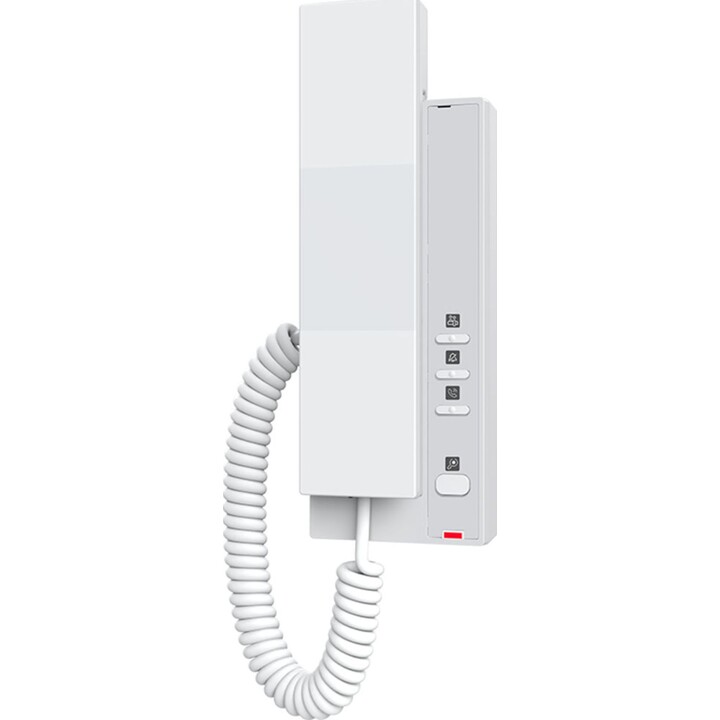

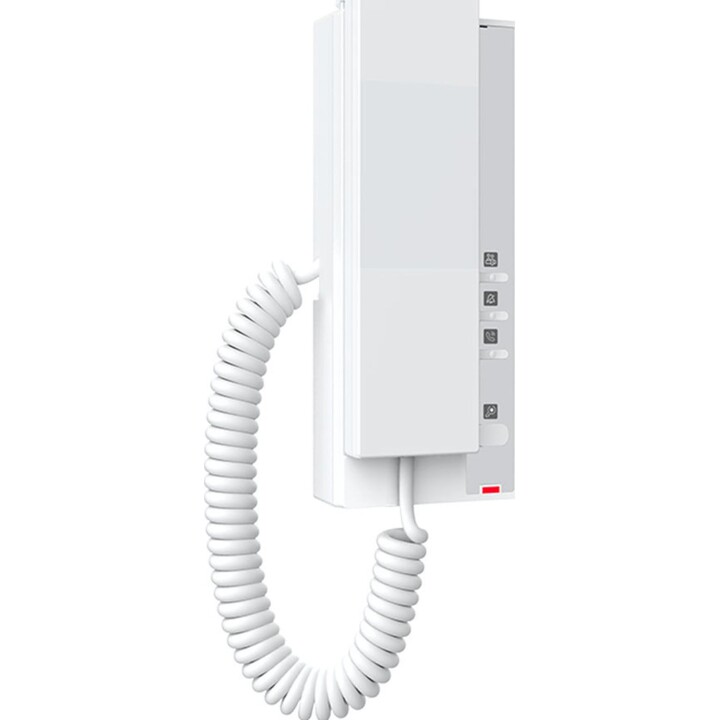

Fanvil i501/i501W SIP Indoor Station
Built-in 2.4G & 5G, supports Wi-Fi 6 (Only i501W Supported)
Supports wall mounting
High-definition audio, supports wideband codecs G.722 and Opus.
i501 supports PoE and power supply
Built-in 1W speaker and AEC algorithm, it achieves high-quality two-way
hands-free calling
The Fanvil i501/i501W SIP Indoor Station is designed to provide secure, smart, and convenient access control for residential and commercial environments. Featuring a magnetic handset and one-touch remote door unlocking, it ensures seamless visitor communication and easy access management.
With support for 2 SIP lines and a short-circuit input, this indoor station is ideal for homes, offices, hotels, and community buildings. It delivers clear audio communication and reliable performance, enhancing both security and user experience.
Key Features

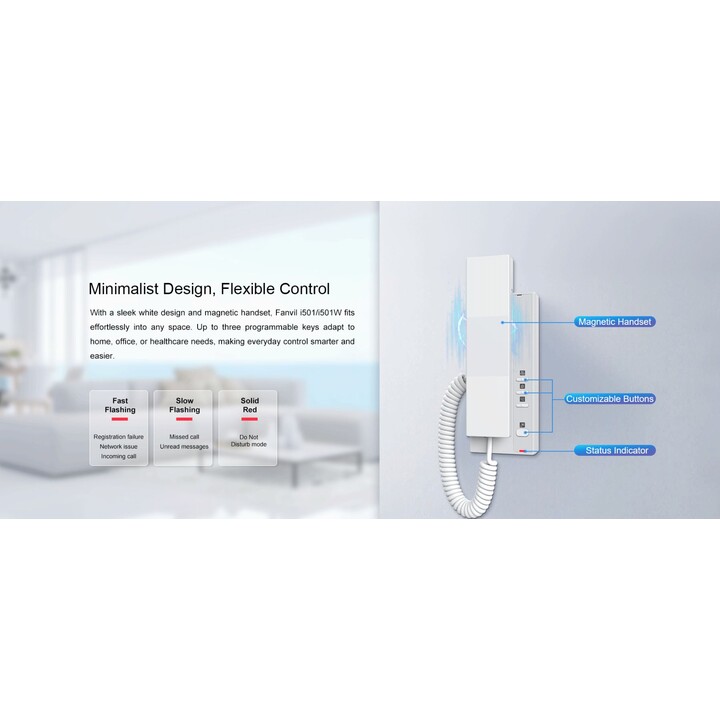

- Magnetic handset with intuitive operation
- One-touch remote door unlocking
- Supports 2 SIP lines
- Built-in 1W speaker with Acoustic Echo Cancellation (AEC) for high-quality hands-free communication
- High-definition audio with wideband codecs (G.722 and Opus)
- Wall-mount installation support
- i501 supports PoE and power supply
- i501W supports power supply only

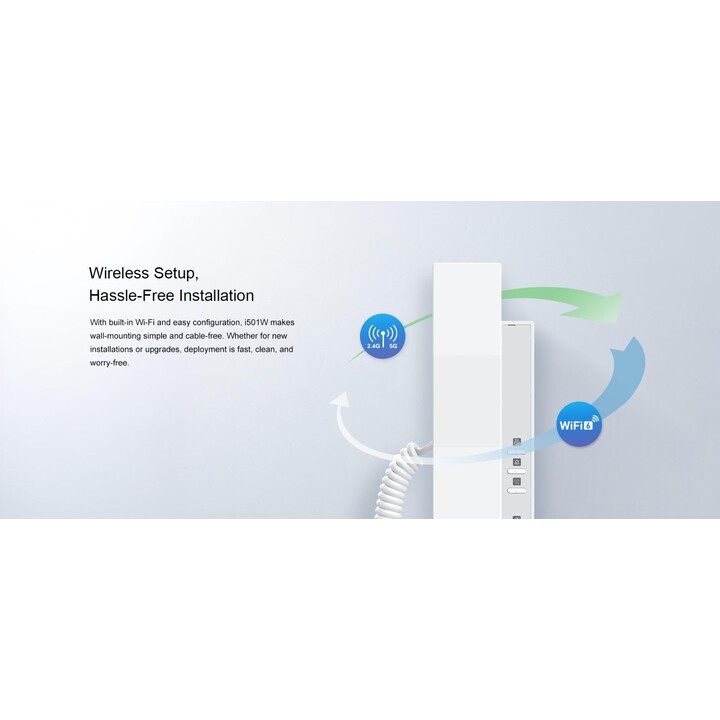

- Dual-band Wi-Fi (2.4G & 5G) with Wi-Fi 6 support (i501W only)
| Specification | Details |
|---|---|
| Panel Type | Community, Hotel, Villa |
| Screen | / |
| Body Material | ABS |
| Speaker | 1W |
| Wi-Fi | 2.4G & 5G, Wi-Fi 6 (i501W only) |
| Interface | 1 × Short circuit input |
| Network | 10/100 Mbps adaptive |
| Power Supply | DC 5V / 1A, PoE 802.3af |
| Power Consumption | i501: PoE 1.44W–2.7Wi501W: Adapter 0.9W–1.7W |
| Working Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 50°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 195 × 181 × 30 mm |
| Installation | Desk or Wall-mounted |
| Feature | Details |
|---|---|
| Supported Protocols | SIP 2.0 (UDP / TCP / TLS) |
| Audio Codecs | Narrowband: G.711A/U, G.723.1, G.726, G.729AB, iLBCWideband: G.722, OPUS |
| Audio Features | Full-duplex hands-free calling with AEC |
| DTMF | In-band, RFC2833, SIP Info |
| Do Not Disturb | Supported with customizable schedule |
| Additional Features |
Custom ringtones, remote door unlocking |
| Item | Details |
|---|---|
| Net Weight (CTN) | i501: 7.065 kgi501W: 8.28 kg |
| Gross Weight (CTN) | i501: 7.71 kgi501W: 8.925 kg |
| Gift Box Dimensions | i501: 105 × 58 × 226 mmi501W: 105 × 58 × 266 mm |
| Outer Carton Dimensions | i501: 340 × 315 × 245 mm (15 pcs)i501W: 340 × 315 × 285 mm (15 pcs) |
Ideal Applications
- Residential buildings and apartments
- Hotels and hospitality environments
- Office access control systems
- Community and building entrance management
-
