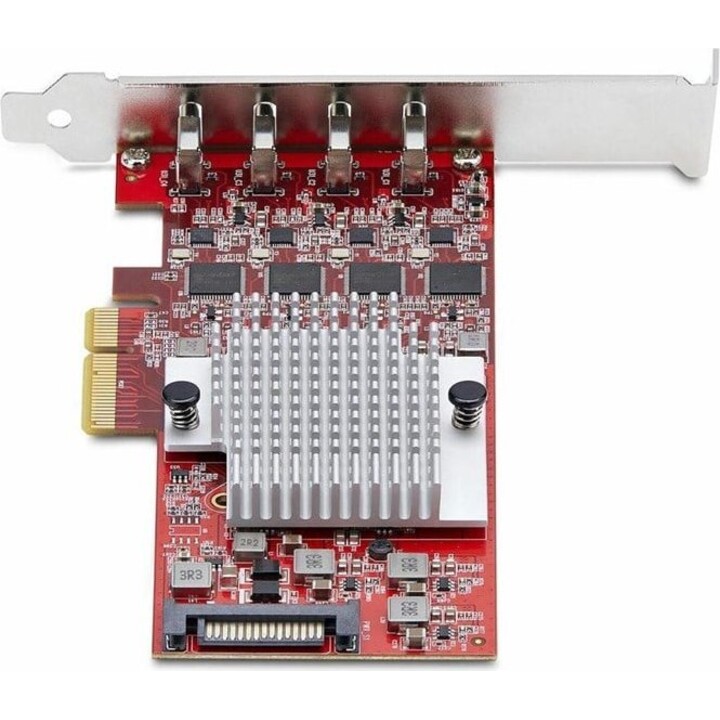

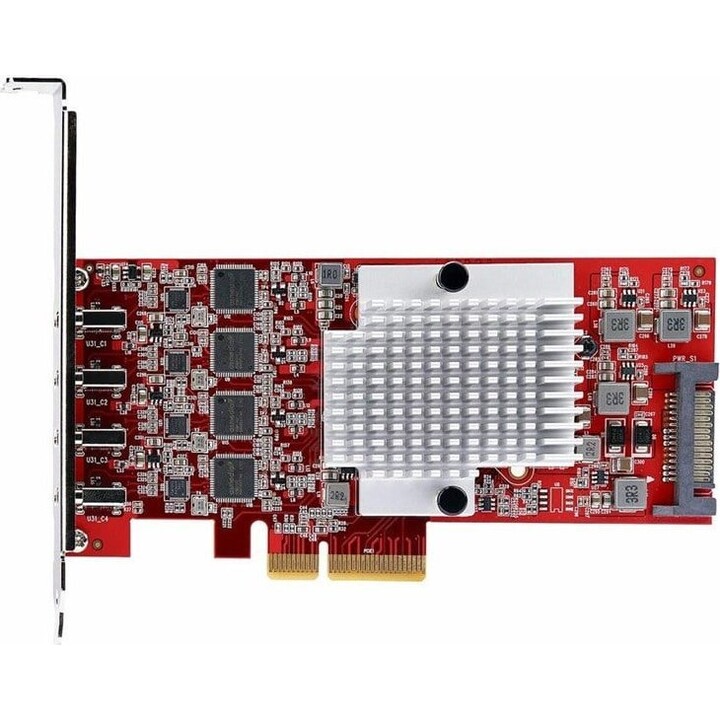

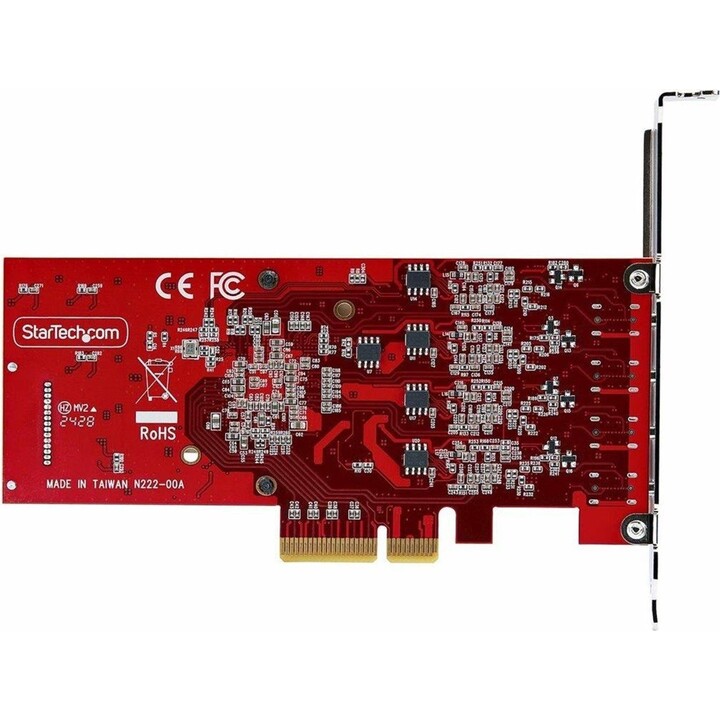

Startech.com P10q4c USB Card, Internal USB Type-C Interface Card/Adapter

Key Specifications

• Interface: PCI Express 3.0 x4, supporting x4, x8 and x16 slots; enough bandwidth to deliver true 10 Gbps per port thanks to 4 dedicated USB controllers.

• Ports: 4 × external USB-C (USB 3.2 Gen 2, up to 10 Gbps), supporting 10/5 Gbps, 480/12/1.5 Mbps speeds and UASP for better performance with external SSDs.

Power and power

• Can supply up to 5V / 3A (15W) per port, enough to power and charge many USB-C devices (external drives, bus-powered docks, capture devices, etc.).

• Includes SATA auxiliary power connector: if the PCIe bus does not provide enough power, you can connect a SATA cable from the source to ensure maximum power delivery to all ports.

Compatibility and form factor

• Supports Windows 10/11, Windows Server 2019/2022, Linux (2.6.31+ LTS) and recent macOS (Sonoma, Sequoia, etc.), with plug-and-play installation without additional drivers in most cases.

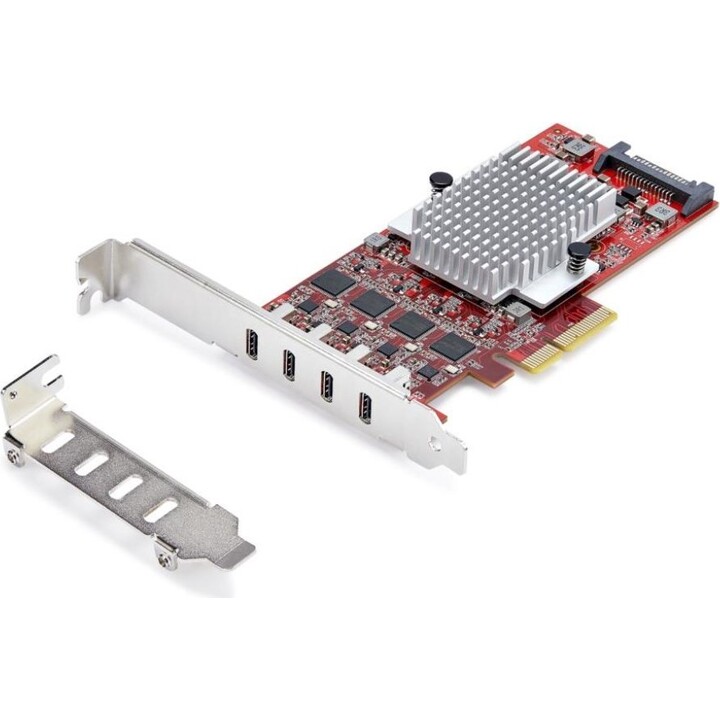

• It comes with pre-installed low-profile bracket and comes with standard height bracket, so it is suitable for both ATX towers and SFF/rack 2U equipment.
