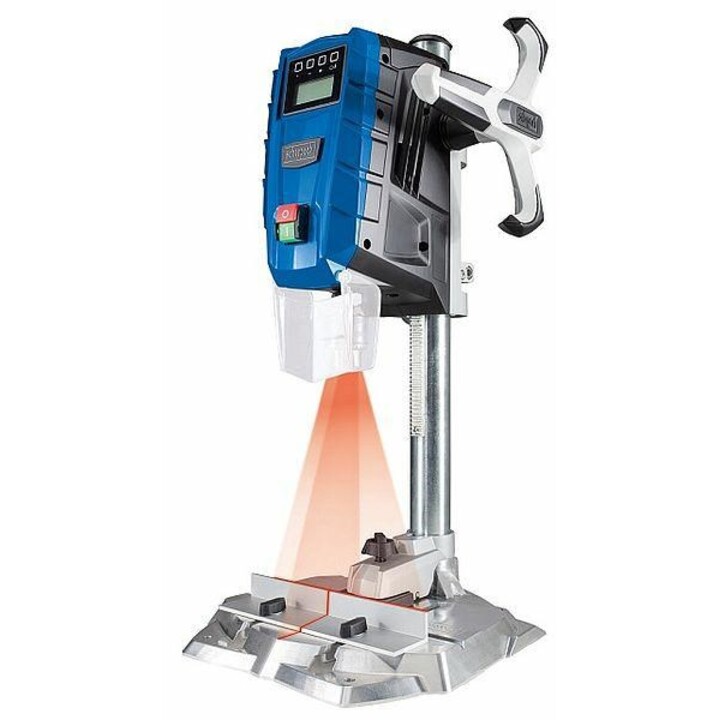

Scheppach DP55 bench drill electronic display
- Power: 550W motor with 5-speed pulley system (250-2500 rpm)
- Drilling capacity: 16 mm in steel, 25 mm in wood
- Chuck: 1.5-16 mm keyless chuck
- Throat depth: 140 mm
- Spindle travel: 60 mm
SCHEPPACH DP55 BENCH DRILL ELECTRONIC DISPLAY
The Scheppach DP55 is a robust bench drill designed for precision drilling in metal, wood, and plastic. Equipped with a 550W motor and a 5-speed pulley system, it offers variable speeds from 250 to 2500 rpm, allowing you to match the speed to the material. The electronic display provides accurate speed readout and depth stop indication, enhancing control and repeatability.
With a drilling capacity of 16 mm in steel and 25 mm in wood, the DP55 handles a wide range of tasks. The keyless chuck (1.5-16 mm) enables quick bit changes, while the adjustable work table tilts 45° left and right for angled drilling. The sturdy cast-iron base and column ensure stability, and the built-in laser guide improves accuracy. Safety features include a spindle lock and emergency stop switch.
| Motor power | 550 W |
| Speed range | 250 - 2500 rpm (5 speeds) |
| Drilling capacity (steel) | 16 mm |
| Drilling capacity (wood) | 25 mm |
| Chuck type | Keyless, 1.5-16 mm |
| Throat depth | 140 mm |
| Spindle travel | 60 mm |
| Table size | 200 x 200 mm |
| Table tilt | 45° left/right |
| Column diameter | 60 mm |
| Base dimensions | 360 x 240 mm |
| Weight | 28 kg |
| Display | Electronic speed and depth display |
| Laser guide | Yes |
| Spindle lock | Yes |
| Emergency stop | Yes |
