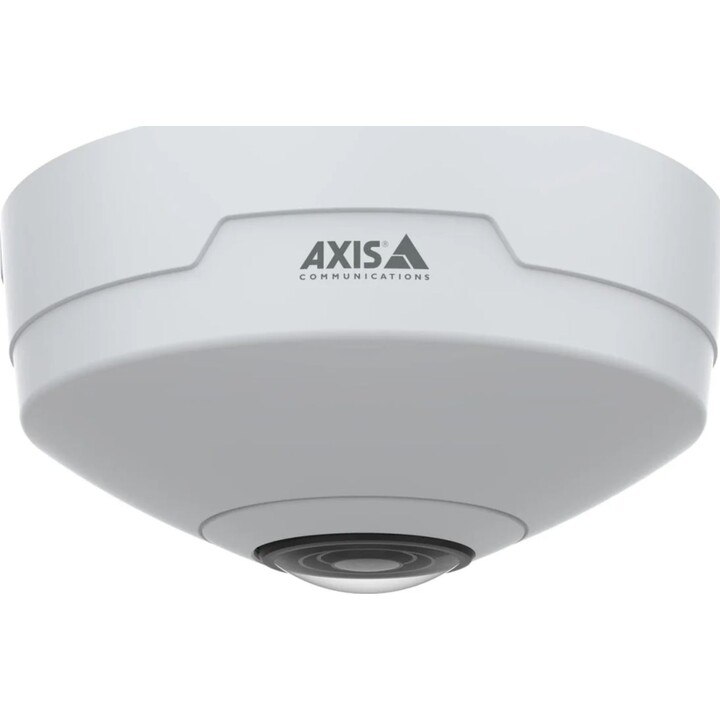

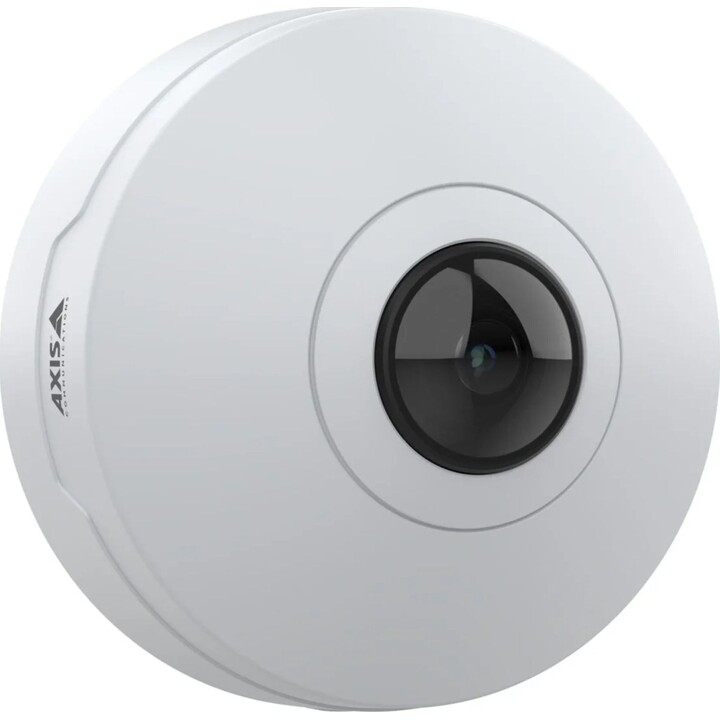

Axis M4328-P Indoor IP Security Camera Pad 2992 x 2992 Pixels Ceiling/Wall

Description

Axis M4328-P Indoor IP Security Camera 2992 x 2992 Pixels Ceiling/Wall Mount

Axis M4328-P, IP security camera, Indoor, Wired, Digital PTZ, Preset point, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish,..., Ceiling/wall

Key product points

Indoor IP Security Camera

CMOS 25.4 / 2.3 mm (1 / 2.3") 12 MP 2992 x 2992 pixels

Wired Ethernet

Ceiling/wall pad

Black, White

300 g

Performance

Type: IP Security Camera

Supported placement: Indoor

Connectivity Technology: Wired

PTZ Control: Yes

PTZ Modes: Digital PTZ, Preset Point

Wide Dynamic Range (WDR): Yes

Day/Night Mode: Yes

Infrared cut filter: Yes

Number of languages: 20

Supported languages: Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese

Design

Form Factor: Pad

Mounting type: Ceiling/wall

Product color: Black, White

LED indicators: Yes

Housing material: Plastic

Camera

Minimum illumination: 0.04 lx

Lens angle of view, horizontal: 182°

Lens angle of view, vertical: 182°

Shutter speed: 1/8100 - 1/2 s

Image sensor

Number of sensors: 1

Optical sensor size: 25.4 / 2.3 mm (1 / 2.3")

Progressive Scan: Yes

Sensor type: CMOS

Lens system

Number of lenses: 1

Fixed focus: Yes

Fixed focal length: 2.2 mm

Video

Maximum resolution: 2992 x 2992 pixels

Total megapixels: 12 MP

Supported video formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4

Supported graphics formats: 256 x 144, 384 x 288, 2048 x 1536 (QXGA), 2560 x 1920, 2880 x 2880, 3840 x 2160

Frame rate: 30 fps

Video streaming: Yes

Noise reduction: Yes

Noise reduction technology: 2D noise reduction, 3D noise reduction

Image quality adjustment: Brightness, Contrast, Saturation, Sharpness

Overlay text: Yes

Bit Rate Control: Variable Bit Rate (VBR)

Audio

Audio system: 2-way

Connection

Ethernet: Yes

Ethernet interface type: Fast Ethernet

Network standards: IEEE 802.3af, IEEE 802.3at

Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR

Quality of Service (QoS) support: Yes

Broadcast Mode: Multicast

Storage media

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Flash Memory: 8192 MB

Internal memory: 2048 MB

Ports and Interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Password protection: Yes

Video motion detection: Yes

Active tamper alarm: Yes

IP Address Filter: Yes

Supported security algorithms: 256-bit AES-XTS, EAP-TLS, TLS

HTTPS Encryption: Yes

Alert Notification Type: Email

Privacy Protection: Yes

Pixel counter: Yes

Target classification as vehicles and people: Yes

Digest Authentication: Yes

Management Features

Behavior Analysis: Line Crossing Detection

Power control

Power: PoE

Power consumption: 3.5 W

Power consumption (max): 5.1 W

Environmental conditions

Operating temperature range: 0 - 40°C

Storage temperature range: -40 - 65 °C

Relative humidity range for operation: 10 - 85%

Relative humidity range during storage: 5 - 95%

Weight and dimensions

Width: 101 mm

Depth: 101 mm

Height: 51 mm

Weight: 300 g

Sustainability

Certificates of conformity: RoHS

Package contents

Number of cameras: 1

User Manual: Yes

Other features

Does not contain: PVC/BFR
