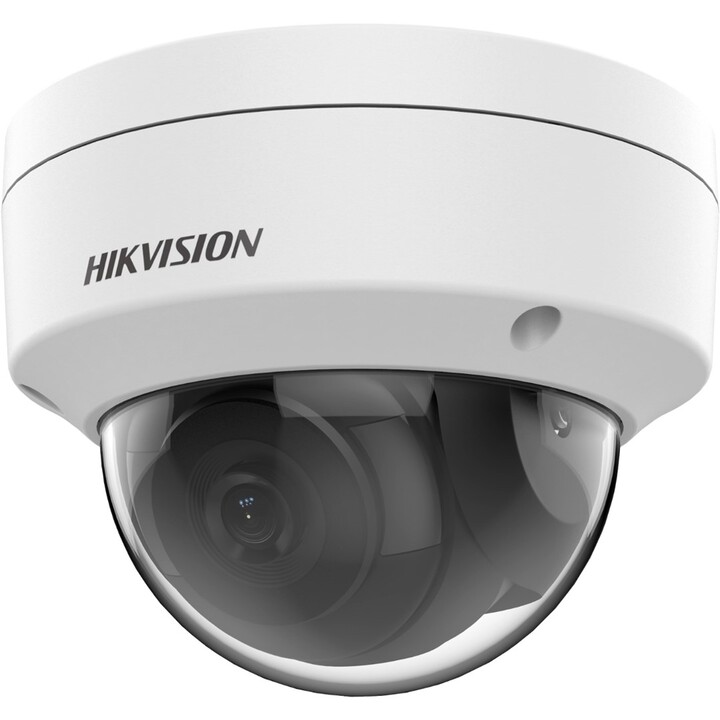

Hikvision Dome IR DS-2CD2143G2-IU(2.8mm) 4MP
Reference:
DS-2CD2143G2-IU(2.8mm)
EAN:
6941264070894
Condition:
New
Price:
€174.48
VAT included
Without tax:
€144.20
- 4MP resolution (2688 × 1520) at 25 fps
- 2.8mm fixed lens, horizontal FOV 103°
- 30m IR range for night vision
- H.265+ compression for efficient bandwidth
- IP67 weatherproof and IK10 vandal-resistant
Photographic camera
Lens angle of view, diagonal
122 Ω
Camera tilt control
Yeah
Lens angle of view, horizontal
103 Ω
Shutter speed
1/3 - 1/100000 s
Lens angle of view, vertical
55 Ω
Camera pan control
Yeah
Tray reach
0 - 355 Ω
Rotation angle
355 Ω
Tilt angle
0 - 75 Ω
Energy control
Power Consumption (Power over Ethernet, PoE)
6.5 W
DC output amperage
0.4 A
DC output voltage
12
Feeding
CC, PoE
Power consumption (max)
5 W
Performance
Number of languages
33
Infrared cut filter
Yeah
Day/night mode
Yeah
Supported placement
Abroad
Connectivity technology
Wired
Wide Dynamic Range (WDR)
Yeah
Guy
IP security camera
Video
Frame rate
30 pps
Image quality adjustment
Sharpness, Brightness, Saturation, Contrast
Bit rate
32 Kbps - 8 Mbps
Backlight Compensation (BLC)
Yeah
Region of Interest (ROI) Encoding
Yeah
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy Mask
Yeah
High Beam Compensation (HLC)
Yeah
Supported graphic formats
640 x 360, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 1280 x 720 (HD 720), 2688 x 1520
Noise reduction technology
3D noise reduction
Noise reduction
Yeah
Maximum resolution
2688 x 1520 Pixels
Total megapixels
4 MP
Video compression formats
H.264+, H.265+, H.264, H.265, M-JPEG
Video broadcast
Yeah
Security
Mirror
Yeah
Features of Intelligent Video Surveillance System (IVS)
Face detection
HTTPS Encryption
Yeah
Beat
Yeah
Motion detection in video
Yeah
Anti-flicker
Yeah
IP address filter
Yeah
Password protection
Yeah
Audio
Audio output channels
1 channels
Voice Codecs
G.711ulaw, G.711alaw, G.726, MP2L2, G.722.1
Audio input channels
1 channels
Sampling frequency
48 kHz
Supported audio formats
MP3, PCM, AAC
Night vision
Infrared wavelength
850 nm
LED Type
GO
Night vision
Yeah
Night vision distance
30 m
Image sensor
Optical sensor size
25.4 / 3 mm (1 / 3")
Progressive Scan
Yeah
Sensor type
CMOS
Number of sensors
1
Weight and dimensions
Weight
530 g
Package height
108 mm
Package weight
720 g
Package width
134 mm
Package depth
134 mm
Lens system
Number of lenses
1
Fixed focal length
2.8 mm
Maximum opening
1.6
Administration Features
Behavioral analysis
Intrusion Detection, Line Crossing Detection
Web browser
Yeah
Web-based administration
Yeah
Restore button
Yeah
Design
Mounting type
Ceiling/wall
IK code
IK10
Case material
Aluminum
IP Code (International Protection)
IP65
Form factor
Pad
Product color
White
Technical details
Sustainability certificates
RoHS, REACH
Connection
Number of users
32 user(s)
Quality of Service (QoS) support
Yeah
Ethernet interface type
Fast Ethernet
Bluetooth
No
Ethernet
Yeah
Network standards
IEEE 802.1x, IEEE 802.3af
Wifi
No
Package contents
Number of cameras
1
Storage media
Maximum memory card size
256 GB
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash), MicroSDXC, MicroSDHC
Integrated reading card
Yeah
Environmental conditions
Storage temperature range
-30 - 60 °C
Operating temperature range
-30 - 60 °C
Relative humidity range for operation
0 - 95%
Relative humidity range during storage
0 - 95%
Ports and Interfaces
Ethernet LAN (RJ-45) ports number
1
-
Brand
-
ReferenceDS-2CD2143G2-IU(2.8mm)
-
In stock1 Item
-
ConditionNew
-
EAN136941264070894
-
MPNDS-2CD2143G2-IU(2.8mm)
| Brand | HikVision |
|---|---|
| Country | China |
| Address of origin | No. 555 Qianmo Road, Distrito Binjiang, Hangzhou, Zhejiang 31005 |
| EU responsible person | Hikvision Europe B.V. |
| Address | Willem Einthovenstraat 5, Hoofddorp, Netherlands, 2342 BH |
| [email protected] | |
| Phone | 31235657200 |
