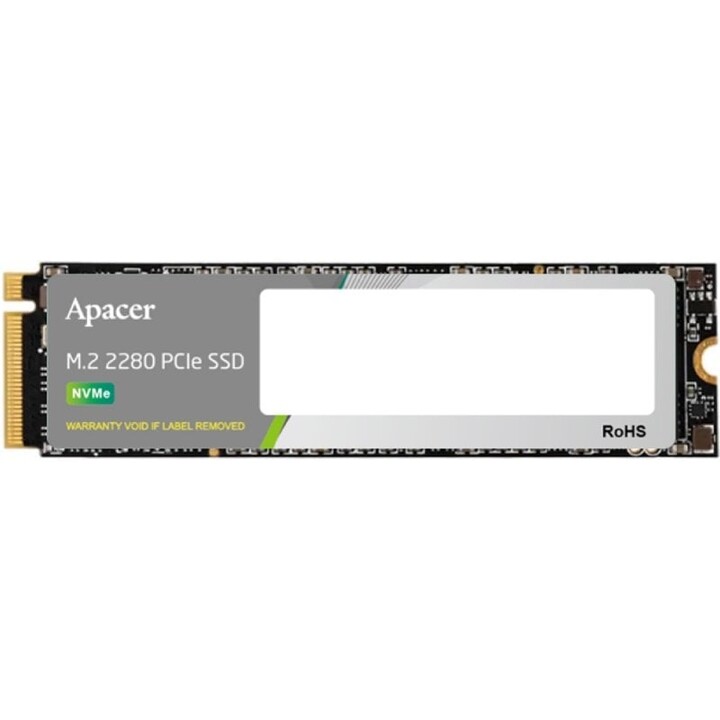

Apacer PC3480 256GB/ M.2 2280 PCIe Gen3/ Full Capacity SSD Disk

PC3480 M.2 PCIe Gen3 x4

• The PCIe Gen3 x4 interface is fully compliant with the NVMe 1.4 standard.
• Sequential read/write performance up to 3500/2550 MB/s.
• It offers capacity options up to 2 TB and provides greater efficiency and reliability.
• The data protection mechanism offers consistent performance.

Specs

Performance and storage

Available capacities: 128 GB / 256 GB / 512 GB

Interface: PCI Express 3.1 x4

NVMe compatibility: NVMe 1.3

NAND Memory: 3D TLC

Sequential read speed:

256 GB: Up to 3200 MB/s

Sequential write speed:

256 GB: Up to 2500 MB/s

4K random read IOPS:

256 GB: Up to 470K

4K random write IOPS:

256 GB: Up to 380K

Management and technologies

Bug fixes: LDPC

Wear Management: Global Wear Leveling

Bad block management: Compatible

Flash Translation Layer: Page Mapping

Power failure management: Compatible

SMART: Compatible

TRIM: Compatible

Hyper Cache Technology: Supported

Strength and reliability

MTBF: More than 2,000,000 hours

TBW:

256 GB: 200 TBW

Impact resistance: 1500 G

Vibration:

20 Hz ~ 80 Hz / 1.52 mm

80 Hz ~ 2000 Hz / 20 G

Consumption and food

Voltage: 3.3V ±5%

Maximum consumption:

256 GB: 4000 mW

Standby power consumption: 700 mW

Heat dissipation: Heat spreader

Temperature and operation

Operating temperature: 0°C to 70°C

Storage temperature: -40 °C to 70 °C

Design and dimensions

Format: M.2 2280

Connector: 75-pin M.2 module

Dimensions: 80 x 22 x 2.25 mm

Certifications

RoHS compliant: Yes

Warranty: 3 years or TBW limit, whichever comes first
