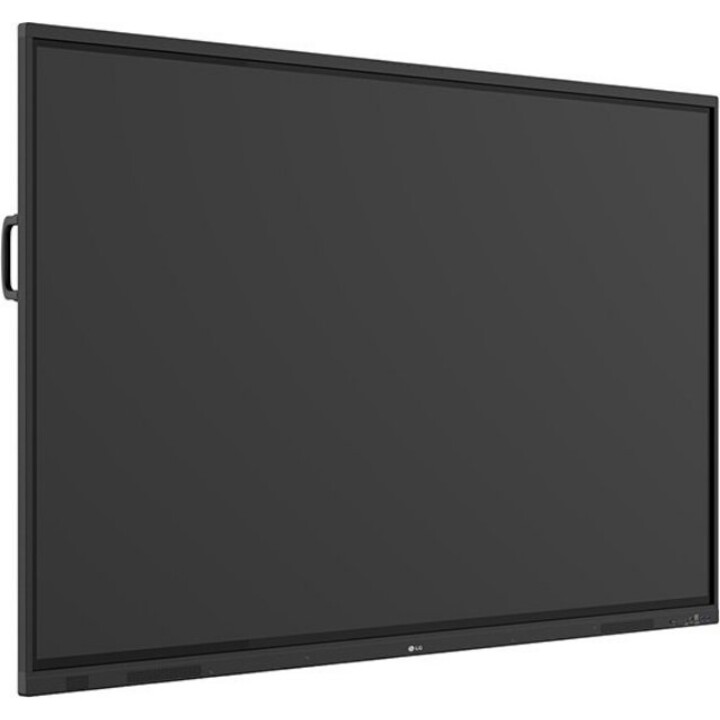

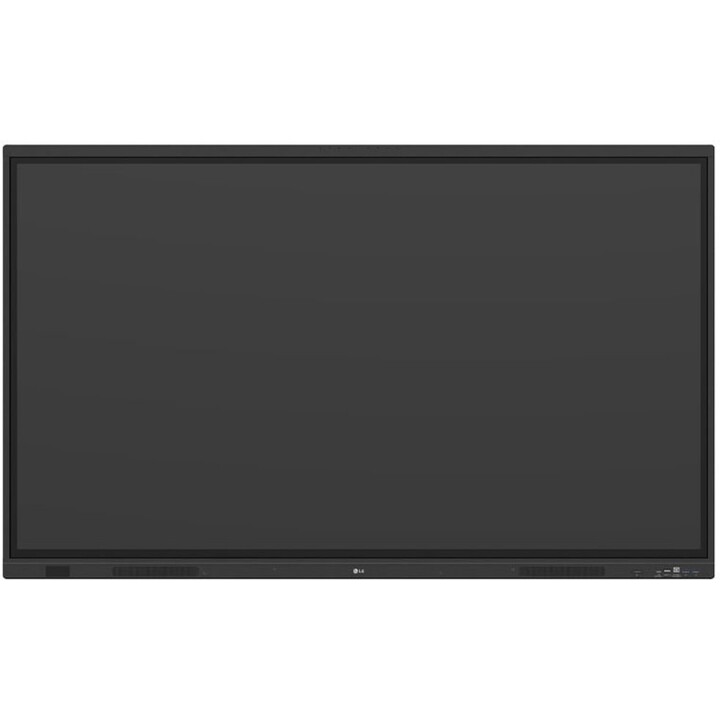

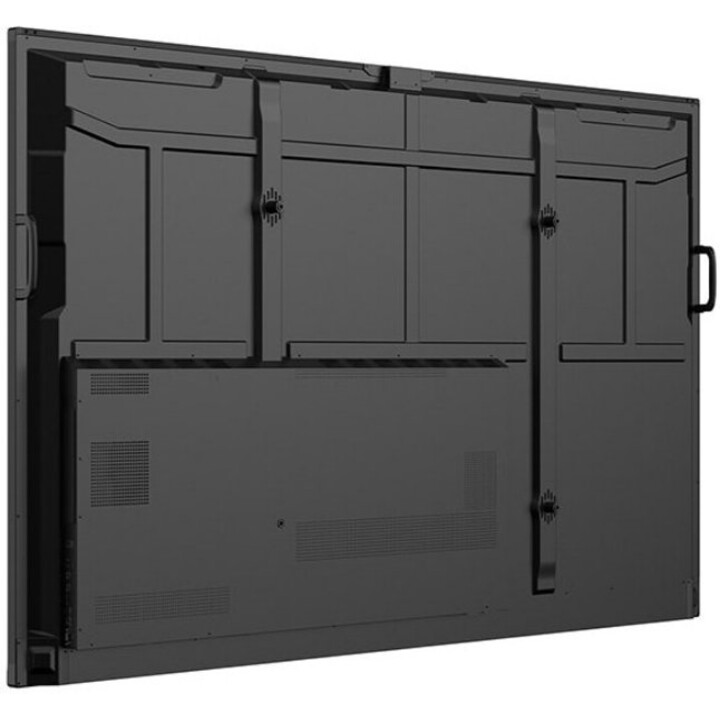

LG CreateBoard 55TR3DQ 55" UHD VA 400nit 50pt multitouch Android 14 EDLA interactive signage

LG CreateBoard Standard 55TR3DQ - Black (8806096421246)

The LG CreateBoard Standard 55TR3DQ is a 55-inch interactive digital display featuring 4K UHD (3840 x 2160) resolution. Designed for educational and corporate environments, it utilizes an IPS panel to provide wide viewing angles and consistent color reproduction. The screen supports up to 40 simultaneous touch points using infrared (IR) technology, enabling multiple users to interact with the surface at once. It features a built-in Android-based operating system, providing access to collaborative tools, a web browser, and an integrated media player without the immediate need for an external PC. The display is protected by 3.2mm tempered glass with an anti-glare coating to minimize reflections and a specialized treatment to reduce ghosting. Connectivity includes front-mounted ports for easy access and a dedicated slot for an optional Open Pluggable Specification (OPS) computer.

Technical Specifications

* Model: 55TR3DQ

* Screen Size: 55-inch

* Resolution: 3840 x 2160 (UHD)

* Panel Type: IPS (Direct LED)

* Brightness: 390 nits (Typical)

* Refresh Rate: 60Hz

* Touch Technology: Infrared (IR)

* Multi-Touch: Up to 40 Points (Windows), Up to 32 Points (Android)

* Internal OS: Android 11

* CPU: Quad-Core (A55)

* Storage: 32GB eMMC

* Interface (Input): 3x HDMI, 1x Audio In, 1x RS-232C, 1x RJ45 (LAN), 4x USB 3.0 Type-A, 1x USB 2.0 Type-A, 1x USB Type-C

* Interface (Output): 1x HDMI Out, 1x Audio Out, 1x Optical Out, 2x Touch USB

* Speakers: Built-in 2x 15W

* VESA Mount: 400 x 200 mm

* Dimensions: 1271 x 774 x 87 mm

Key Features

* 40-Point Multi-Touch: Enables highly responsive and fluid multi-user collaboration, making it suitable for interactive lessons and brainstorming sessions.

* Integrated Android 11 Platform: Offers a standalone software environment with built-in educational and productivity applications, reducing reliance on external hardware.

* LG CreateBoard Share: Supports wireless screen mirroring for up to nine simultaneous displays on the board, compatible with Windows, macOS, Android, and iOS.

* Front-Access Design: Features a localized front I/O panel with HDMI, USB, and Touch ports to facilitate quick connectivity for guest devices.

* Secure and Manageable: Includes features like Screen Lock and USB Lock to prevent unauthorized access and protect sensitive data in shared spaces.
