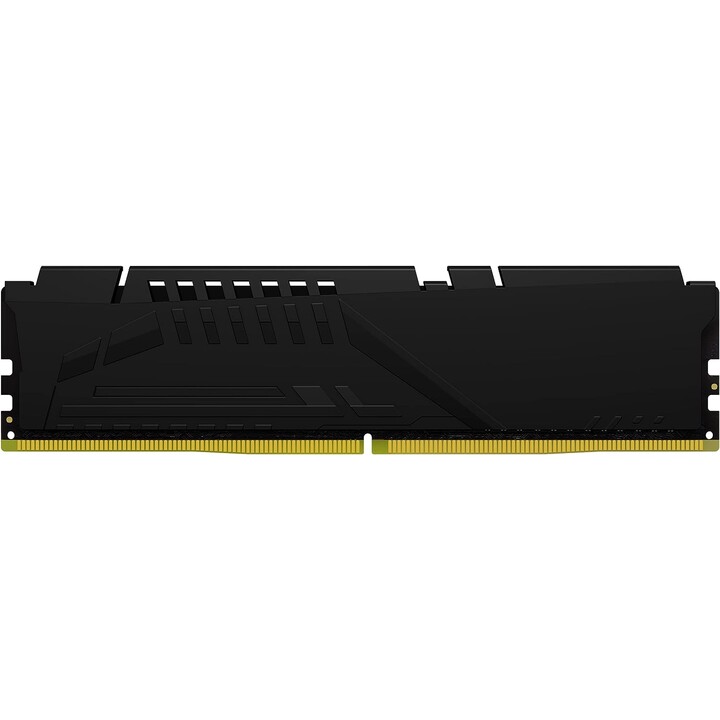

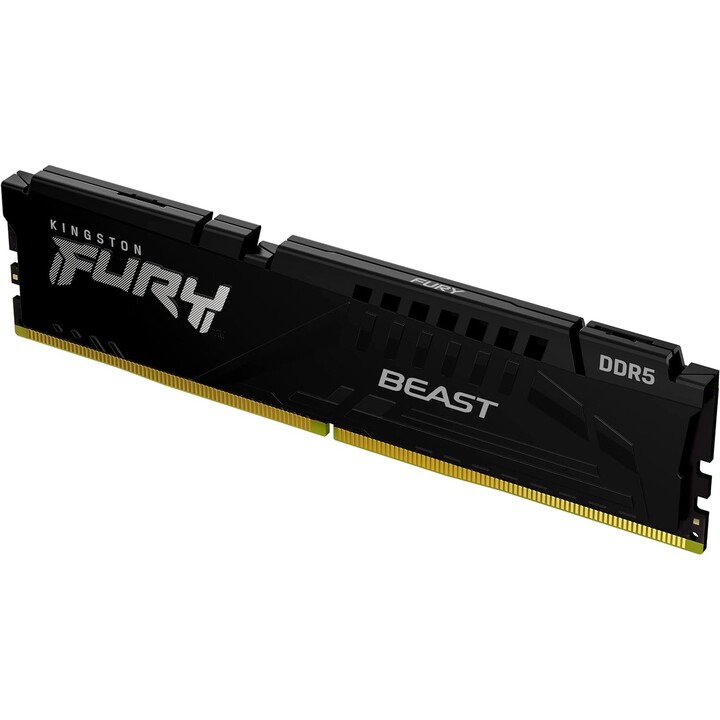

RAM memory module Kingston FURY Beast 32GB (1 x 32GB) DDR5 5200 MHz
- 32GB (1 x 32GB) DDR5 5200MHz memory module for desktop PCs
- 288-pin DIMM form factor with low-profile black heat spreader
- Intel XMP 3.0 and AMD EXPO support for easy overclocking
- On-Die ECC for improved stability and data integrity
- 1.25V, CL40 latency, and gold lead plating for reliable performance
The Kingston FURY Beast is a single 32 GB DDR5 memory module running at 5200 MT/s, aimed at anyone building or upgrading a desktop PC who wants a large amount of fast memory in one stick. It is a 288-pin DIMM with a low-profile heat spreader, so it fits into a standard desktop build without getting in the way of large CPU coolers. If you need capacity and speed without filling every slot, this is a straightforward choice.
Highlights
- 32 GB in a single module: one 1 x 32 GB DIMM gives you plenty of headroom for demanding programs and leaves the other slots free for a future upgrade.
- 5200 MT/s DDR5 speed: a high data transfer rate for a next-generation desktop platform, with a CAS latency of 40.
- On-die ECC: error correction built into the module helps keep data integrity while you push performance.
- Intel XMP 3.0 support: pre-optimised profiles for speed, timings and voltage make overclocking settings easier to apply in the BIOS.
- Low-profile heat spreader: the module measures 133.3 mm deep and 34.9 mm high, so it stays clear of most large air coolers.
- Unbuffered, non-ECC design: a standard 288-pin DIMM for desktop PCs, running at 1.25 V.
- JEDEC standard compliant: works to an established memory standard, with gold-plated contacts for a reliable connection.
Technical specifications
Features
| On-Die ECC | Yes |
|---|---|
| CAS latency | 40 |
| Internal memory | 32 GB |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 5200 MT/s |
| Component for | PC |
| Memory form factor | 288-pin DIMM |
| ECC | No |
| Buffered memory type | Unregistered (unbuffered) |
| Memory ranking | 2 |
| Memory voltage | 1.25 V |
| Module configuration | 4096M x 64 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel Extreme Memory Profile (XMP) version | 3.0 |
| Programming power voltage (VPP) | 1.8 V |
| Cooling type | Heatsink |
| Lead plating | Gold |
| JEDEC standard | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 85 °C |
|---|---|
| Storage temperature (T-T) | -55 - 100 °C |
Weight & dimensions
| Width | 6.62 mm |
|---|---|
| Depth | 133.3 mm |
| Height | 34.9 mm |
| Weight | 34.59 g |
Packaging data
| Package width | 57.1 mm |
|---|---|
| Package depth | 14 mm |
| Package height | 171.4 mm |
| Package weight | 54.1 g |
Other features
| Country of origin | China, Taiwan |
|---|
Manufacturer technical data.
Frequently asked questions
Is this one stick of 32 GB or two sticks?
It is a single module: 1 x 32 GB. That means you install one DIMM and keep the remaining slots free if you want to add more memory later.
Will it work with my Intel or AMD desktop?
It is a 288-pin unbuffered DDR5 DIMM for desktop PCs, and it supports Intel XMP 3.0. Check your motherboard's list of supported memory before buying to be sure of compatibility.
Do I need to change anything in the BIOS?
The module is JEDEC standard compliant, so it will run at its default settings. To use the 5200 MT/s speed and the 40 CAS latency, enable the Intel XMP 3.0 profile in your motherboard's BIOS.
Will the heat spreader fit under a large CPU cooler?
The module is 34.9 mm high and 133.3 mm deep, with a low-profile heat spreader designed to leave room for large coolers. Check the clearance in your case and around the CPU socket before installing.
-
