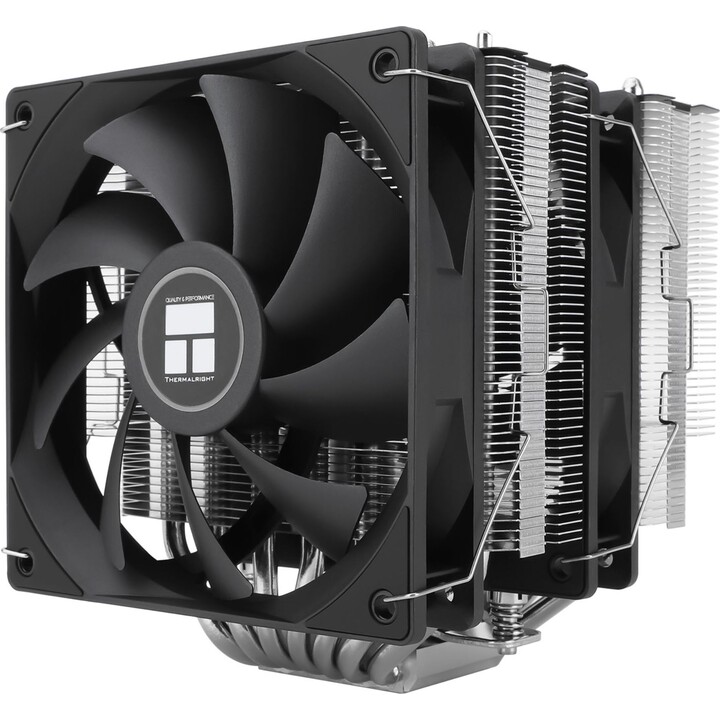

ThermalRight Phantom Spirit 120 SE CPU cooler black

Efficient thermal performance
The nickel-plated C1100 copper base maximises heat transfer from the IHS, while the 7 x 6mm heat pipes distribute thermal energy throughout the heatsink. The result is fast and stable evacuation under sustained loads.

Compactness and compatibility
At 154mm high, 125mm wide and 110mm long, it fits into a variety of mid-tower towers without compromising the RAM area in most standard configurations.

Controlled ventilation
The TL-C12B V2 (120 mm) offers PWM control up to 1,500 rpm, with 66.17 CFM of flow and 1.53 mmHO of peak static pressure to pass through the dense fin pack while keeping noise at 25.6 dBA (max).

Heatsink

• Dimensions: 110 × 125 × 154 mm (L × W × H)

• Weight: 765 g

• Heat pipes: 7 × 6 mm

• Base: Pure copper C1100, nickel plated

Fan (TL-C12B V2)

• Dimensions: 120 × 120 × 25 mm

• Weight: 135 g

• Nominal speed (max.): 1,500 rpm ±10 %Nominal speed (max.): 1,500 rpm ±10

• Flow rate (max.): 66.17 CFM

• Static pressure (max.): 1.53 mmHO

• Noise (max.): 25.6 dBA

• Power consumption: 0.20 A

• Connector: 4 pins PWM

• Bearing: S-FDB (fluid dynamic bearing)
