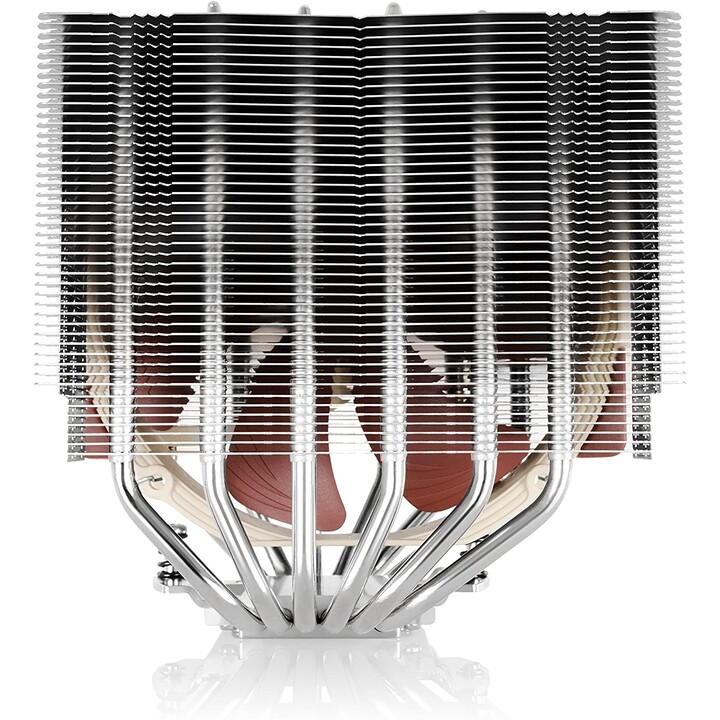

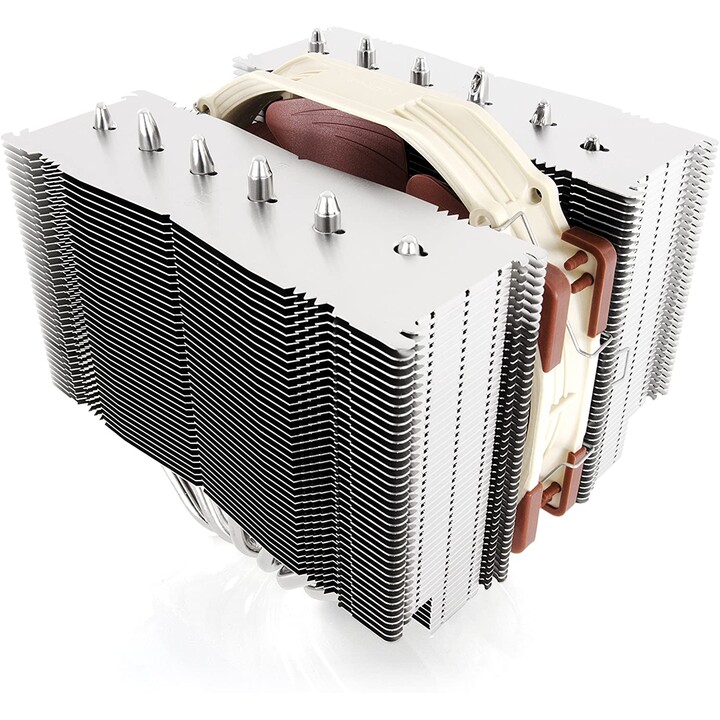

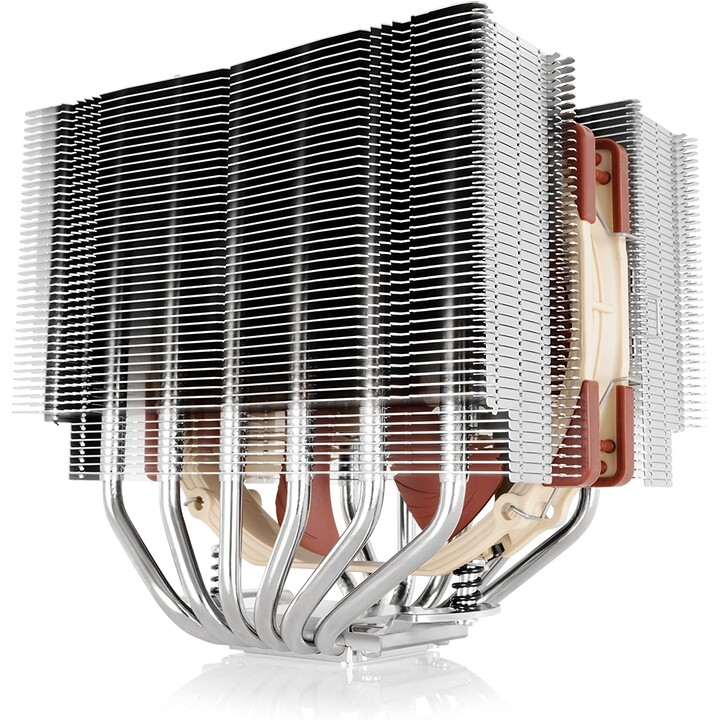

Noctua Nh-D15S Multisocket Intel/Amd Cpu Cooler

Designed to offer superior RAM and PCIe compatibility, the NH-D15S is a single-fan asymmetrical version of Noctua s award-winning and popular NH-D15 model. Thanks to its asymmetric design, the NH-D15S clears the top PCIe slot on most ATX and ATX motherboards. At the same time, this model with a single fan and lower fins ensures 10100%AM compatibility with memory modules up to 65mm in height. Users with enough space can also upgrade the cooler with a 120mm fan or a round 140mm fan at the front of the fin set for improved performance in dual-fan mode. Coupled with the reliable and professional SecuFirm2? multi-socket mounting system, award-winning NT-H1 thermal compound and a 6-year manufacturer s warranty, the NH-D15S is a complete, high-quality solution that combines the efficiency of dual tower with excellent compatibility and flexible upgrade options.

Highly compatible version of the NH-D15
Compared to the award-winning NH-D15, the S version has a sloping, asymmetrical design and features a single NF-A15 fan instead of two. This allows the NH-D15S to offer excellent heatsink performance while maintaining superior RAM and PCIe compatibility.

Excellent RAM compatibility
Thanks to its lower fins, the NH-D15S provides 65mm clearance for the tallest memory coolers, making it compatible with most modules on the market. Since the lower fins are on both sides of the heatsink, you get excellent compatibility not only on the LGA115x and AMD, but also on the LGA2011, where there are RAM slots on both sides of the socket.

Asymmetric design for better PCIe compatibility
Because many current motherboards have the top PCIe x16 slot close to the socket, larger coolers tend to block it. Thanks to its asymmetrical design, the NH-D15S s fin assembly is angled toward the top edge of the motherboard when installed in a standard orientation. This allows you to clear the top PCIe x16 slot on most ATX and ATX motherboards.

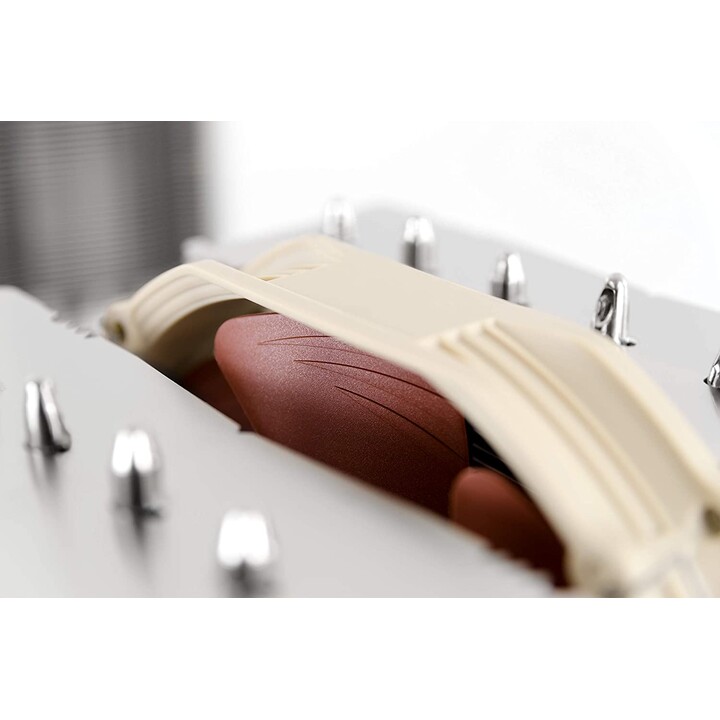

NF-A15 140mm fan
Featuring Noctua s AAO frame and advanced aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has built a reputation as one of the best 140mm fans on the market. button

Dual fan mode ready
Using the supplied additional fan clips, the NH-D15S can be upgraded with a second 140mm round-frame fan with 120mm mounting holes (like the NF-A15) for maximum performance, or with a standard 120mm fan. 120mm (like the NF-F12) to improve performance while maintaining compatibility with RAM modules up to 45mm in height.

PWM support and Adapter for noise reduction
The high-quality NF-A15 fan supplied with the NH-D15S includes PWM support for convenient automatic speed control via the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm so that quieter operation can be achieved when using the Noise Reduction Adapter.

Excellent component cooling
Located at the bottom of the fin array, the large NF-A15 fan not only contributes to the NH-D15S s impressive CPU cooling capabilities, but also provides considerable airflow to the components surrounding the case. motherboard and heatsinks, thus ensuring excellent component cooling performance.

SecuFirm2? mounting system
Noctua s SecuFirm2? mounting systems have become synonymous with quality, safety and ease of use. Being compatible with Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011 (LGA2011-0, LGA2011-3) and AMD (AM3(+), AM2(+), FM1, FM2(+)), mounting of SecuFirm2?, included with the NH-D15S, ensures perfect contact pressure and maximum comfort on all sockets.

Compatibility with old and new sockets
Complying with SecuFirm? standards, the NH-D15S is compatible with older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit that Noctua offers free of charge. If technically possible, Noctua will also provide upgrade kits for the new sockets.

Thermal compound NT-H1
Receiving more than 100 awards and recommendations from trade journalists around the world, Noctua s NT-H1 establishes itself as a quality-proven, high-end thermal solution that provides minimal thermal resistance, great ease of use and outstanding reliability.

6 year warranty
Noctua products are known for their impeccable quality and outstanding longevity. Like all other Noctua fans, the NF-A15 offers a Mean Time Between Failures (MTBF) of over 150,000 hours and the complete NH-D15S package comes with a full 6-year manufacturer s warranty.


PERFORMANCE
Suitable for: Processor
Type: Cooler
Fan diameter: 14cm
Supported processor sockets: Socket AM2, Socket AM3, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+, LGA 2011-v3 (Socket R)
Supported Processor: Intel Core i3, Intel Core i5, Intel Core i7
Rotational speed (min): 300 RPM
Rotational speed (max): 1500 RPM
Noise level (high speed): 24.6 dB
air flow: 140.2 m³/h
Maximum air pressure: 2.08 mmH2O
mean time between failures: 150000 h

DESIGN
Color of product: Copper, Metallic
Material: Aluminum, Copper

ENERGY CONTROL
Power Consumption: 1.56W
Voltage: 12V
Thermal Design Power (TDP): 220 W

WEIGHT AND MEASUREMENTS
Width: 150mm
Depth: 190mm
Height: 165mm
Weight: 1.15kg
Package Width: 190mm
Package depth: 225mm
Package height: 235mm
Package Weight: 1.98kg
