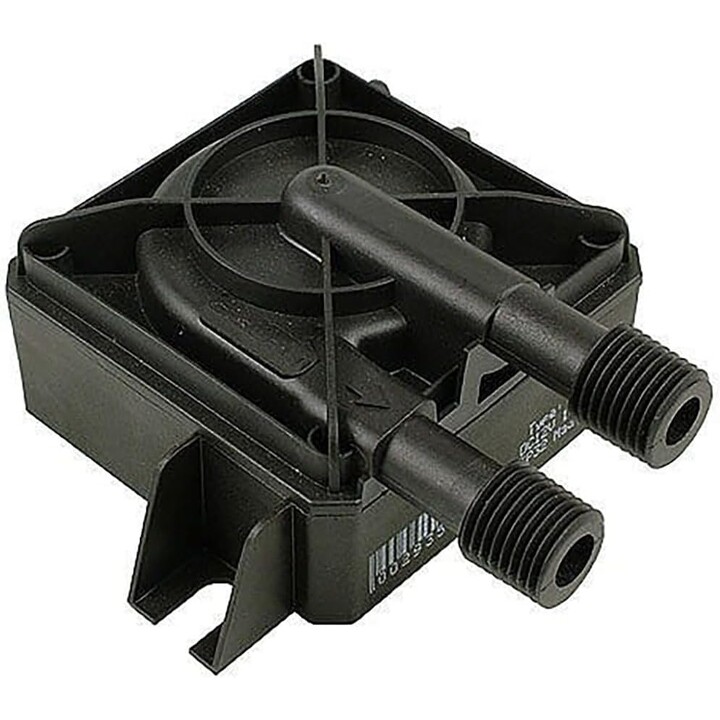

Advanced electronic spherical motor: Electronic commutation technology (DC brushless) with maximum speed of 4500 RPM, generating a maximum pressure of 4.7 metres of water head and flow up to 600 L/h, ideal for thick radiators and resistive blocks.
-
Standard G1/4" connections: Two G1/4" external threads (inlet/outlet) compatible with all 3/8" or 10/13 mm fittings and hoses on the watercooling market, facilitating plug-and-play integration into reservoirs or tops.
-
Simple and stable power supply: 12V DC nominal voltage (range 8-12V), 18W maximum power consumption (current ~1.5A), with 4-pin Molex or 3-pin tacho-signal connector (RPM monitoring on backplane or controllers).
-
Premium corrosion resistant materials: 1.4571 stainless steel fluid contact parts, reinforced PPS-GF40, aluminium oxide ceramic, hard carbon and EPDM seals, compatible with distilled water, glycol or coloured coolants without degradation.
-
Ultra-compact dimensions: Measures 91 x 88 x 40 mm (or 62 x 62 x 38 mm without connections) and light weight of 213 g, perfect for SFF cases or mounts in VRM blocks/reservoirs Apexu/D5 combos.
-
Wide operating temperature: Supports up to 60°C in the coolant system and 10-50°C ambient, with expected lifetime in excess of 50,000 hours under normal conditions, minimising maintenance.
-
Extreme pressure and flow: Capable of 0.43-0.47 bar maximum pressure, excellent for complex serial loops with high restrictions (heavy GPUs, delidded CPUs), maintaining stable flow rates >400 L/h under load.
-
Quiet and efficient operation: Low noise level (<30 dB in typical operation), no native PWM but voltage adjustable (step-down or DC drivers), optimising for stealth builds or sustained overclocking.
-
Integrated tachometer signal: 3-pin output for real-time monitoring via software (HWInfo, AIDA64) or BIOS, alerting to low-flux failures and facilitating diagnostics in custom setups.
-
Workstation-proven design: First DDC series used in pre-assembled OEMs (HP/Dell), with reinforced metal buffers (TT1CWX-01 BP36) for zero vibration and reliability in 24/7 environments.
