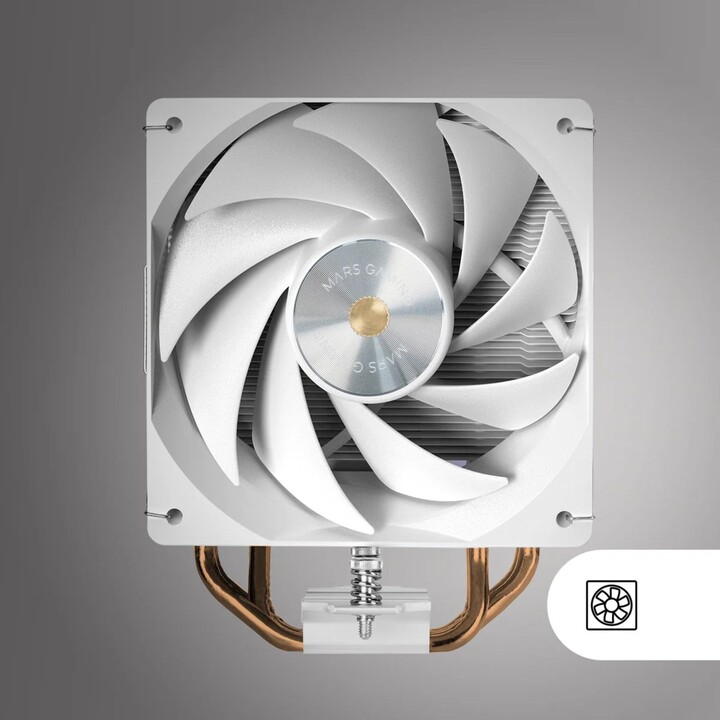

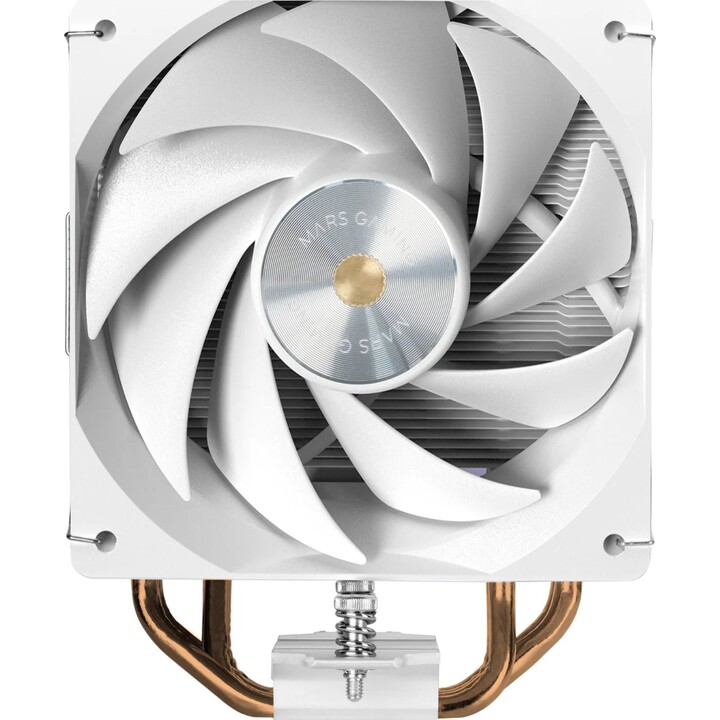

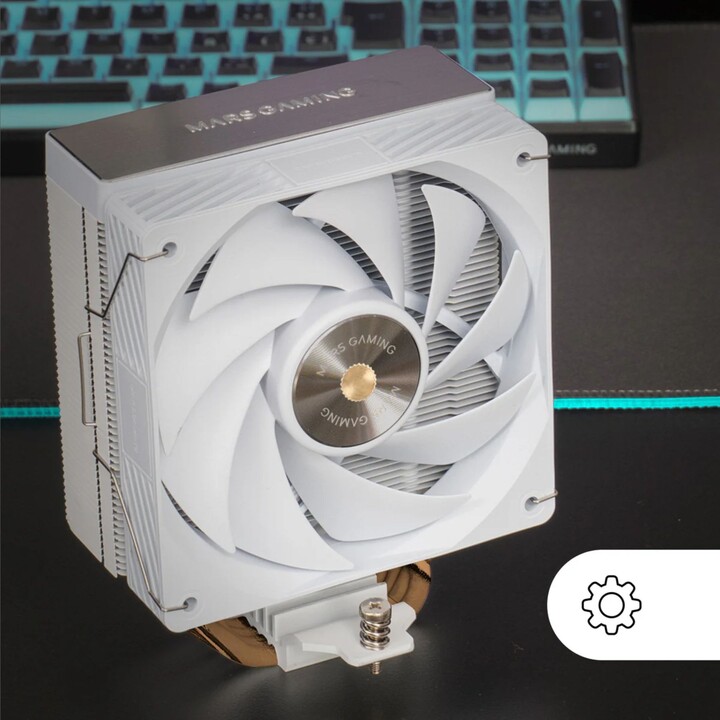

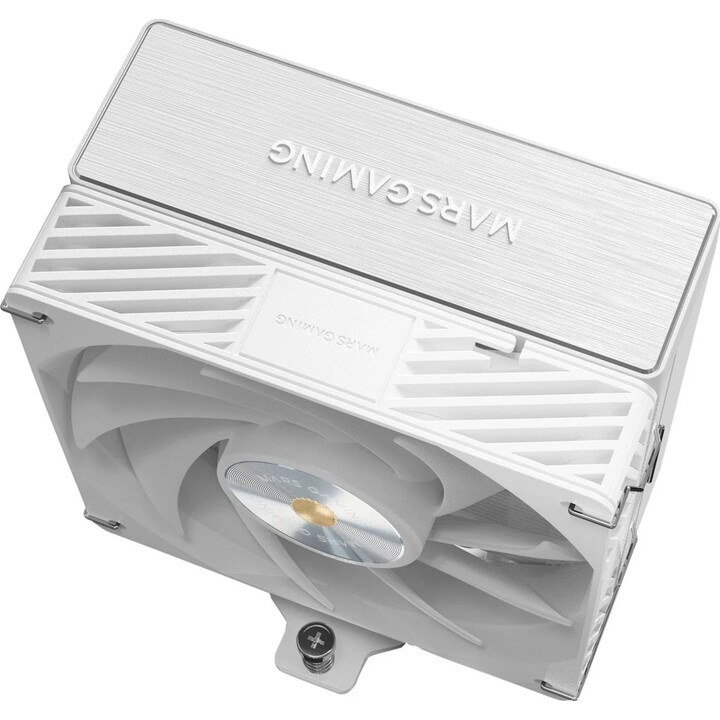

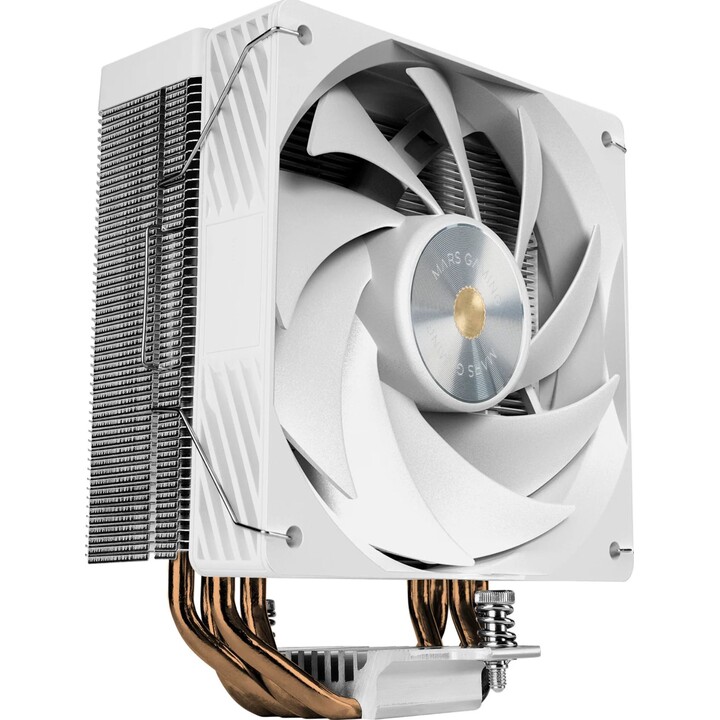

Mars Gaming MCPU-X4 Fan with Heatsink/ 12cm/ White

Description

Mars Gaming MCPU-X4W Processor Air Cooler 12 cm White 1 pc(s)

MCPU-X4 HEATSHINER

The MCPU-X4 heatsink redefines advanced cooling with a design focused on thermal power, extreme silence, and absolute control. Equipped with HCT copper heatpipes, an aluminum radiator, an ultra-quiet SI Extreme-Silence fan, and an optimized anti-vibration structure, this CPU cooler guarantees superior thermal performance even in the most demanding configurations. Perfect for high-performance PCs where efficiency and silence are a priority.

Ultra-quiet next-generation cooling

- 230W TDP

- 4 next-generation HCT Heatpipes

- SI Extreme-Silence PWM fan

- Ultra-quiet and vibration-free performance

UP TO 230W TDP

Designed for demanding systems, the MCPU-X4 supports up to 230W TDP, keeping your processor temperature under control even during intense gaming sessions or high-performance tasks. Professional thermal performance to take your PC to the next level.

HIGH-PERFORMANCE COOLING

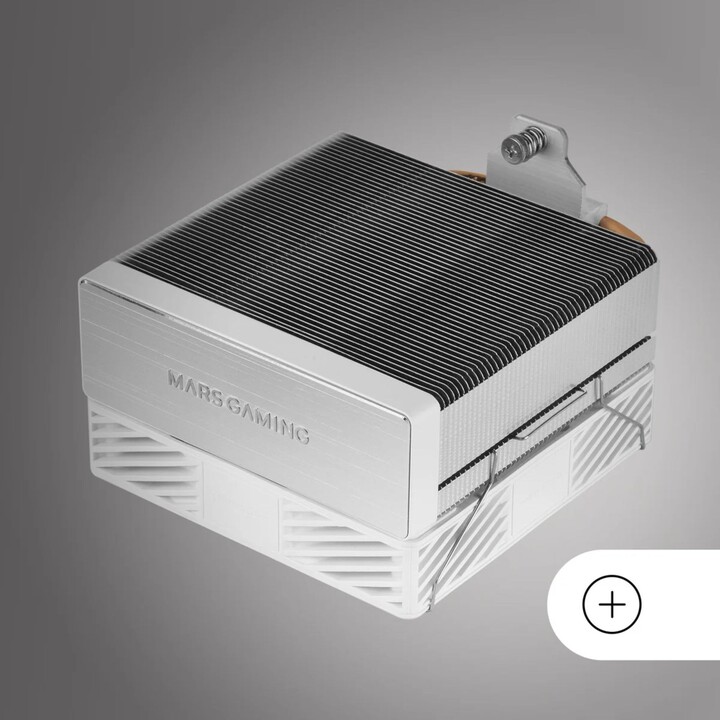

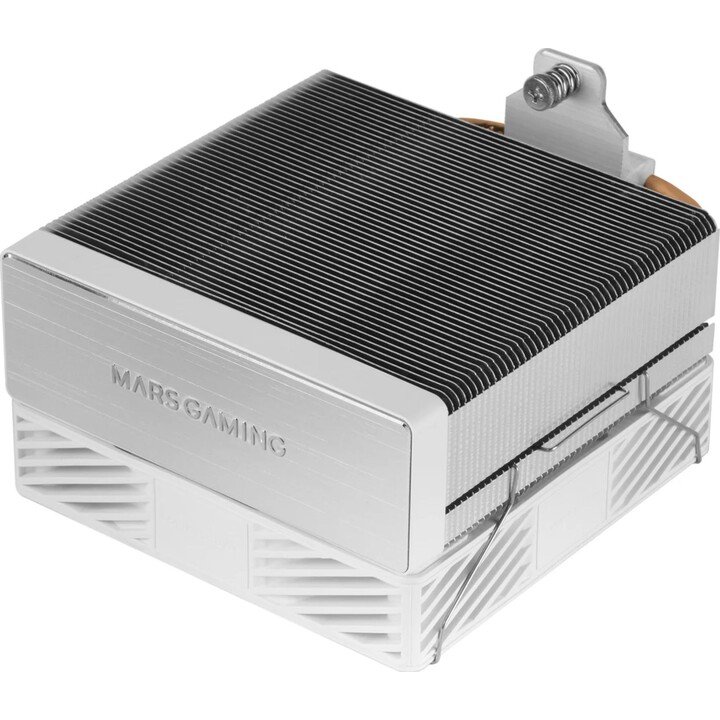

The MCPU-X4 guarantees exceptional heat dissipation thanks to its advanced structure with 4 HCT copper heatpipes and an optimized aluminum heatsink block. This combination maximizes contact with the CPU and accelerates heat transfer, ensuring fast and stable cooling.

EXTREME SILENCE WITH SI TECHNOLOGY

The 120mm SI Extreme-Silence fan combines a hyper-balanced copper core with FDB bearings and intelligent PWM control, offering fluid, silent cooling with exceptional durability. Its adjustable speed range from 800 to 2000 RPM allows efficient airflow with minimal noise, adapting to each moment of use.

ANTI-VIBRATION DESIGN: TOTAL STABILITY

Integrated foam pads eliminate unwanted vibrations, ensuring ultra-quiet operation and a firm fixation of the cooler. This design contributes to greater system stability and a cleaner, more professional user experience.

VERSATILE COMPATIBILITY

The MCPU-X4 is compatible with a wide variety of sockets, ensuring integration into Intel LGA 1851/1700/1200/1156/1155/1151/1150/1366 and AMD AM5/AM4, for easy installation and optimal adaptability in high-performance configurations.

Key product points

Air Cooler Processor 12 cm

Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 1851, Socket AM4, Socket AM5

78 cfm 1.31 mmH2O Hydraulic

Compatible with pulse width modulation (PWM)

120 x 120 x 25 mm

White

1 piece(s)

Performance

Proper location: Processor

Type: Air cooler

Fan diameter: 12 cm

Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 1851, Socket AM4, Socket AM5

Maximum airflow: 78 cfm

Minimum air pressure: 0.79 mmH2O

Maximum air pressure: 1.31 mmH2O

Pulse Width Modulation (PWM) Compatible: Yes

Support type: Hydraulic

Fan noise level (min.): 9 dB

Fan noise level (max.): 28 dB

Quantity per package: 1 piece(s)

Fan speed (min): 800 RPM

Fan speed (max): 2000 RPM

Fan mean time to failure (MTTF): 60,000 h

Design

Product color: White

Radiator material: Aluminum

Base plate material: Copper

Number of fans: 1 Fan(s)

Number of heat sink tubes: 4

Fan connector: 4 pin

Power control

Power supply: 3.36 W

Thermal Design Power (TDP): 230 W

Fan voltage: 12 V

Fan current: 0.28 A

Weight and dimensions

Width: 120 mm

Depth: 68 mm

Height: 154 mm

Weight: 551 g

Fan dimensions (W x H x D): 120 x 120 x 25 mm

Package width: 143 mm

Package depth: 98 mm

Package height: 194 mm

Package contents

Packaging Type: Box

Mounting kit: Yes

User Manual: Yes
