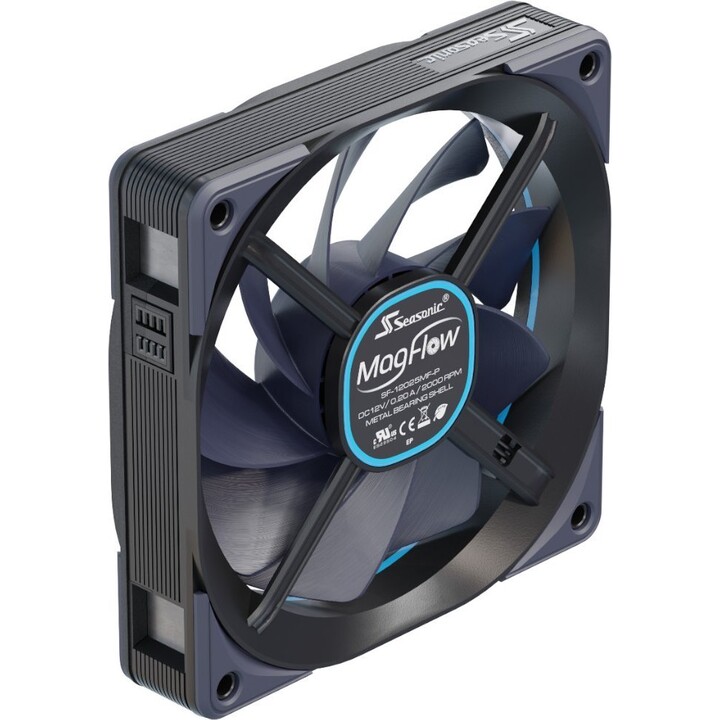

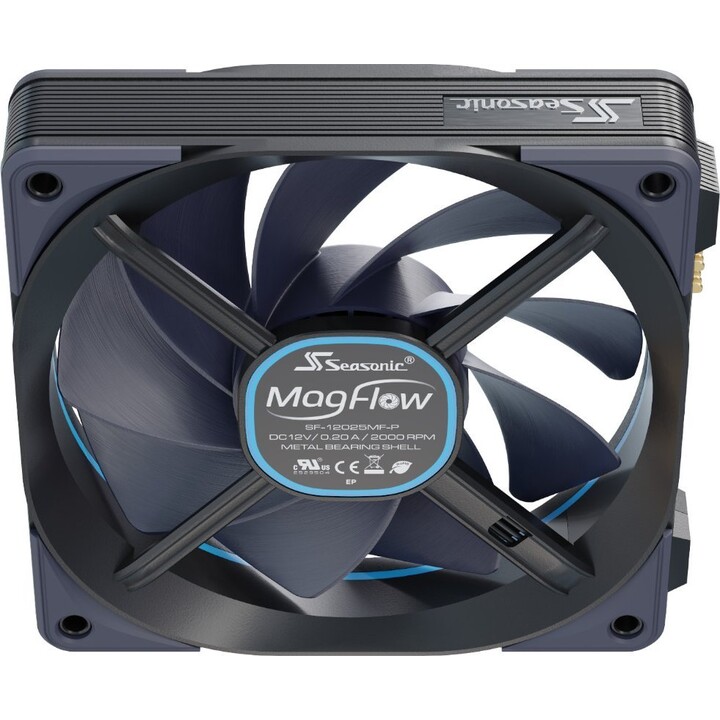

120mm Seasonic MagFlow 1225PWM -3Pack

Fan Specifications

• Model MagFlow 1225 PWM (SF-12025MF-P), dimensions 120.4 x 124.2 x 26.6 mm (including magnets and pads), voltage 12 VDC, rated current 0.10-0.20 A and power around 2 W, featuring a fluid dynamic bearing and MTBF of 100,000 hours.

• Speed range 600-2000 ±10% RPM, maximum airflow 63.33 CFM, static pressure 2.61 mmH₂O and noise level 9.9-33.78 dBA, making them suitable for intake/exhaust radiators as well as AIO/Custom radiators.

Magnetic System and Wiring

• They feature a "magnetic garland" system: the fans are connected by a physical mechanism with magnets that carry power and signal, eliminating most cables between them and simplifying clean assembly.

• The 4-pin PWM power cable is also magnetic and modular, attaching to any fan in the chain, facilitating 2-3 fan setups on a radiator without cable clutter.

Usage in Cases and Radiators

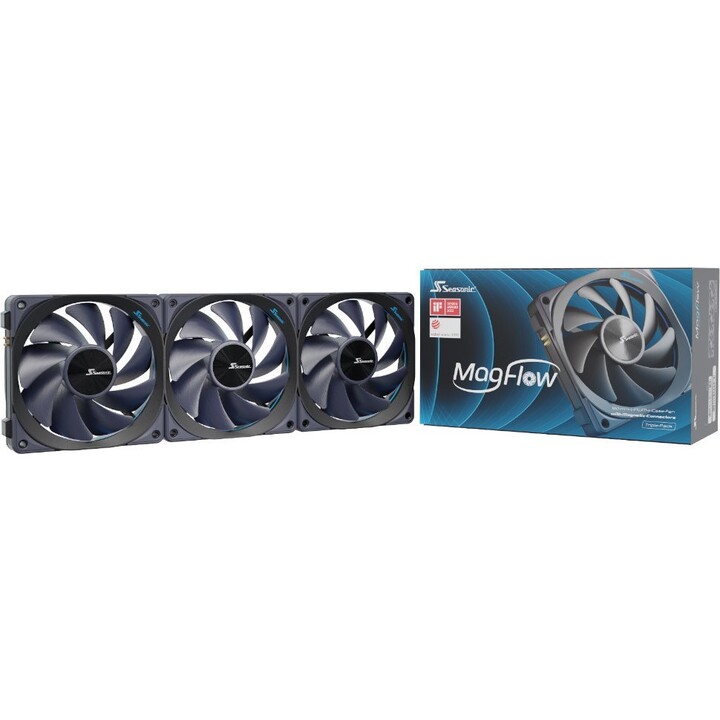

• The 3-pack kit is intended for:

  • Front intake or top exhaust with chain mounting.

  • 360 mm radiators, reducing alignment and bolting time (only 4 bolts per set).

• The combination of good static pressure and airflow makes it a solid choice for 240/360mm AIOs and cases with restrictive filters, matching your interest in liquid cooling and clean setups.
