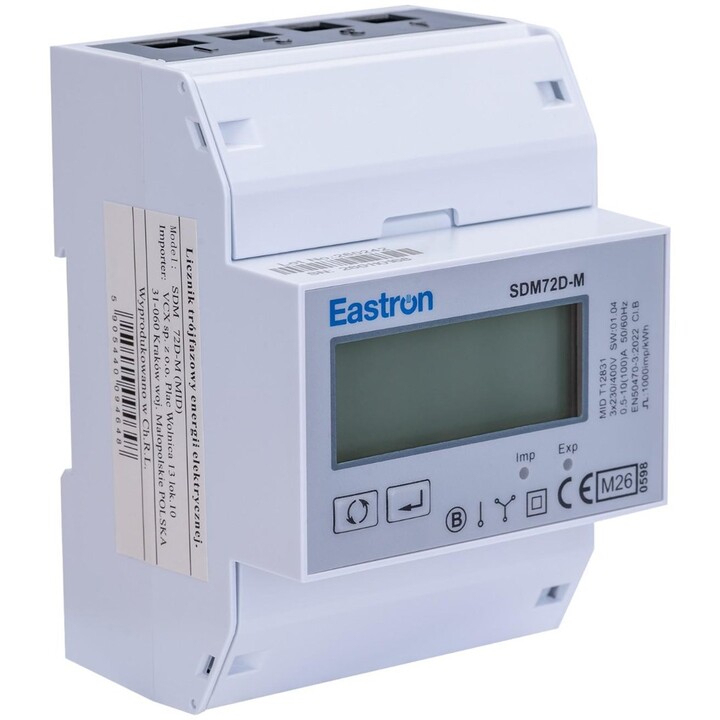

Modbus SDM 72 DM MID Three-phase energy meter
Reference:
SDM 72 DM MID
EAN:
5905440094648
Condition:
New
Price:
€97.21
VAT included
Without tax:
€80.34
- Three-phase energy meter with Modbus RTU communication
- Accuracy class 0.5 (active energy) per IEC 62053-21
- MID certified (Module B + D) for billing purposes
- Direct connection up to 100A (5(100)A)
- Measures kWh, kVarh, V, A, Hz, PF, MD, and more
Modbus SDM 72 DM MID Three-phase energy meter
The SDM 72 DM MID is a three-phase energy meter designed for sub-metering and billing applications. It features Modbus RTU communication (RS485) for integration into building management systems. With a direct connection rating of 5(100)A and accuracy class 0.5 for active energy, it provides reliable measurement of electrical parameters including voltage, current, frequency, power factor, and maximum demand.
This meter is MID certified (Module B + D), making it suitable for billing purposes in commercial and industrial installations. The backlit LCD display shows all measured values, and the device supports two tariffs via digital input. The compact DIN-rail housing allows easy installation in distribution boards.
| Brand | Eastron |
| Model | SDM 72 DM MID |
| Type | Three-phase energy meter |
| Communication | Modbus RTU (RS485) |
| Accuracy | Class 0.5 (active energy) |
| Current rating | 5(100)A direct |
| Voltage | 3x230/400V AC |
| Frequency | 50/60 Hz |
| MID certification | Yes (Module B + D) |
| Display | Backlit LCD |
| Tariff control | 2 tariffs via digital input |
| Measured parameters | kWh, kVarh, V, A, Hz, PF, MD, etc. |
| Mounting | DIN-rail |
| Dimensions | 72 x 90 x 65 mm |
-
