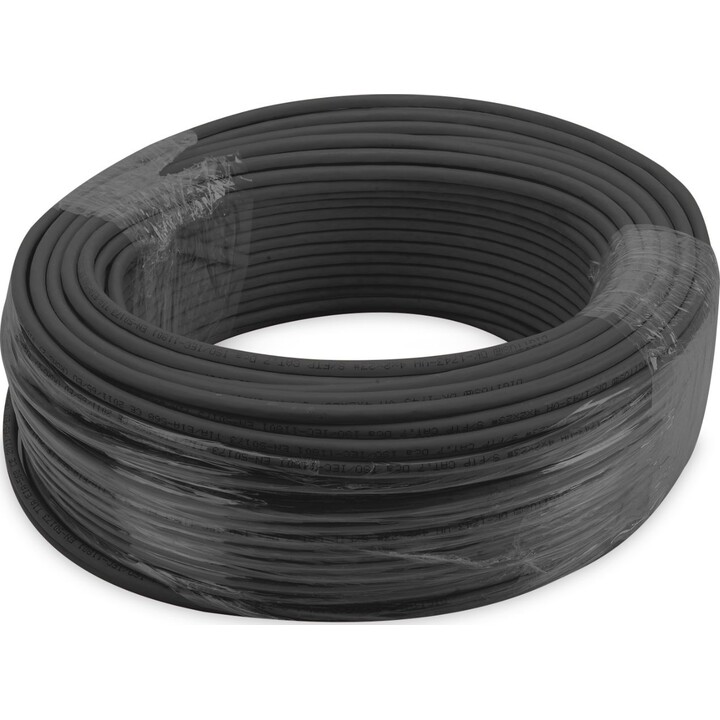

Digitus CAT 7 S/FTP Data Cable - Underground Installation Cable, 100 m, Simplex, PE

Description

The Digitus Professional Cat.7 S/FTP underground cable features a 4x2x AWG23/1 cable structure and a transmission frequency of up to 1200 MHz. The cable has a PE outer jacket and a halogen-free inner jacket and complies with IEC 60332-1, FRNC-B, LSZH-1, and BauPVO Euroclass Eca standards. It is suitable for installation in dry or damp locations, outdoors, or underground. It meets ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-4-1 standards.

Technical data

• Physical properties:
• Conductor: bare copper wire, AWG 23/1
• Insulation: SFS-PE (foamed polyethylene cover)
• Total number of insulated conductors: 8, twisted into 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Shielding of individual pairs: Aluminum laminated polyester film, covers 100%.
• General shielding: copper braiding
• Outer shell: PE (polyethylene); UV resistant
• Outer sheath thickness (nominal): 0.50 mm nominal
• Outer casing color: Black (RAL 9005)
• Mechanical properties:
• Tension relief: 150N max.
• Dynamic radius of curvature: 8x AD mm min.
• Static radius of curvature: 4x AD mm min.
• Transport and storage temperature: -20 °C to +60 °C
• Operating temperature: -50 °C to +60 °C
• Installation temperature range: 0 °C to +60 °C
• Simplex outer diameter (nominal): 8.5 mm (Eca)
• Weight (kg/km): 66.5 kg/km
• Electrical properties:
• Impedance: 100°5 Ohm @ 4-100 MHz; 100°25 Ohm @ 100-1200 MHz
• Capacitance: 45 pF/m nominal @ 1 KHz
• Capacitance imbalance (pair-to-ground): 1.6 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• DC Resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
• Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
• Operating voltage: 72 Vdc max.
• Coupling attenuation: AC-Type 1b
• Phase delay: 450 nS/100 m max.
• Timing: 15 nS/100 m max.
• Separation class: "d" according to EN 50174-2
• NVP: 79%

Attributes

• Range: Twisted pair installation cables
• Category: CAT 7
• Shielding: S-FTP, shielded pairs with metal foil and braiding
• CPR: Eca
• Length: 100 m
• Color: black
• Wrapping: PE
• Structure: 4 x 2 AWG 23/1, solid twisted pair

?
