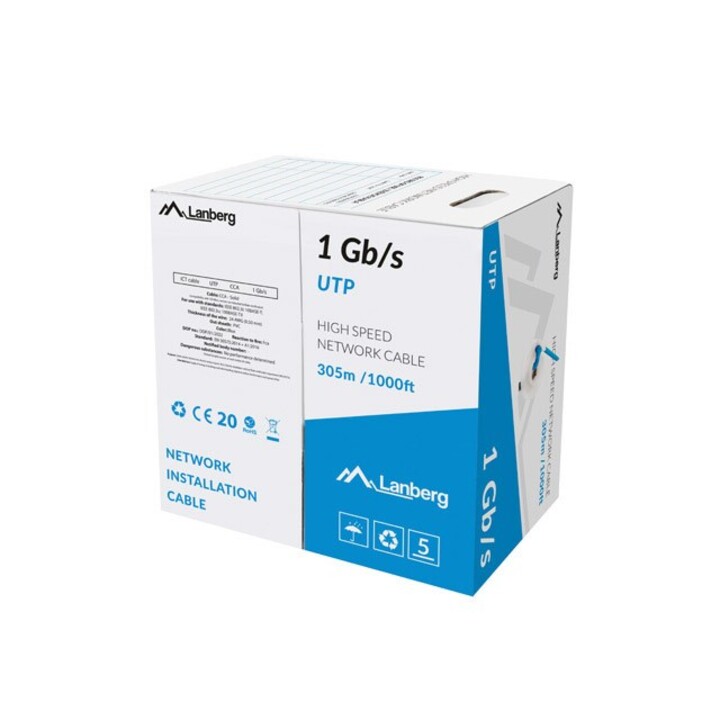

UTP network cable reel Lanberg LCU6-10CC-0305-B 305 m 1 Gb/s solid CCA blue
- Speed: 1GB/s
- Length: 305 meters
- Conductor: Solid Copper Clad Aluminum (CCA)
- Shielding: U/UTP
- Coating: PVC, Blue color
This Lanberg reel gives you 305 m of UTP Cat6 cable for wiring a home, an office or a small installation where you need to run several points from a single drum. It is solid-conductor CCA cable, so it is designed to be cut and terminated on site rather than moved around once installed. If you are planning a fixed network run and want enough length to cover the whole job, this is the format to choose.
Highlights
- 305 m on a single reel: enough cable to wire multiple rooms or workstations without joining shorter lengths.
- U/UTP construction with Cat6 performance: data transfer up to 1000 Mbit/s and a frequency of 250 MHz for everyday wired networking.
- 23 AWG solid CCA conductor: aluminium coated with copper, intended for permanent runs that are cut and terminated to length.
- PVC outer jacket with a 5.6 mm diameter: flexible enough to route through conduits and trunking during installation.
- Metre markings printed along the cable: you can measure and cut each run accurately as you work.
- Operating temperature range of -20 to 75 °C: suitable for installations in varied indoor environments.
- Blue jacket: helps you identify this cable among others in cabinets and cable trays.
Technical specifications
Features
| Product colour | Blue |
|---|---|
| Cable length | 305 m |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper-Clad Aluminium (CCA) |
| Cable fire class | Fca |
| AWG wire size | 23 |
| Data transfer rate | 1000 Mbit/s |
| Frequency | 250 MHz |
Operational conditions
| Operating temperature (T-T) | -20 - 75 °C |
|---|
Weight & dimensions
| Outer diameter | 5.6 mm |
|---|
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Packaging data
| Package width | 380 mm |
|---|---|
| Package depth | 240 mm |
| Package height | 380 mm |
| Package type | Box |
Manufacturer technical data.
Frequently asked questions
Does the reel come with connectors fitted?
No. The cable is supplied without connectors on either end, so you terminate it yourself with the plugs or outlets that suit your installation.
What length can I run in one go?
The reel holds 305 m of cable, and the working distance for the link is 100 m. The metre counter printed on the cable helps you cut each run to the length you need.
What is the conductor made of?
The conductor is CCA, aluminium coated with copper, with a 23 AWG gauge and a solid single-wire construction. The outer jacket is PVC and the conductor insulation is HDPE.
What speed and frequency does it support?
It handles data transfer rates up to 1000 Mbit/s at a frequency of 250 MHz, over a U/UTP (unshielded) cable.
-
ColourBlue
-
Cable lengthOver 10 m
| Brand | LANBERG |
|---|---|
| Country | Poland |
| Address of origin | Stanisława Lema 16 Street, Mosina, 62-050, Poland |
| EU responsible person | Lanberg Sp. z o.o. |
| Address | ul. Unii Europejskiej 18, Słupsk, Poland, 76-200 |
| [email protected] | |
| Phone | 48943742900 |
