CS-HB-45H Multifunction CCTV Tester

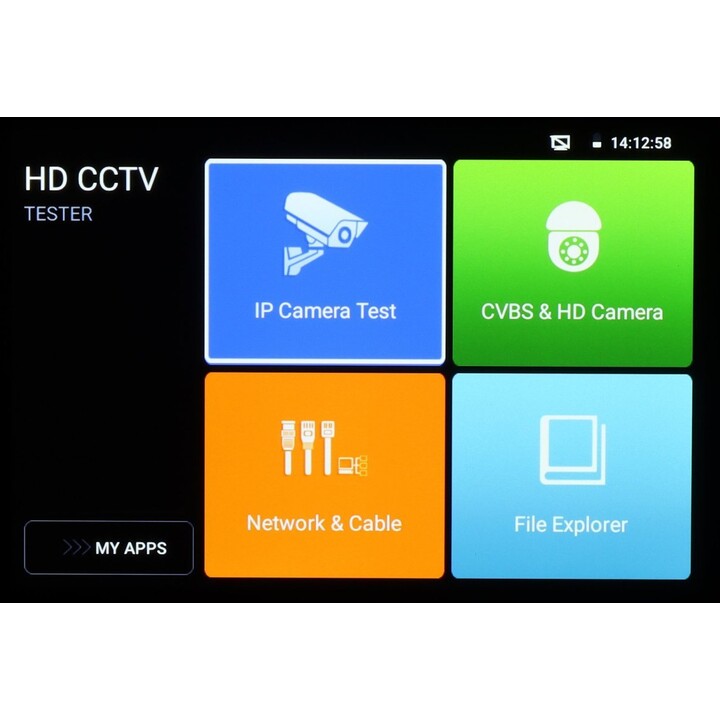

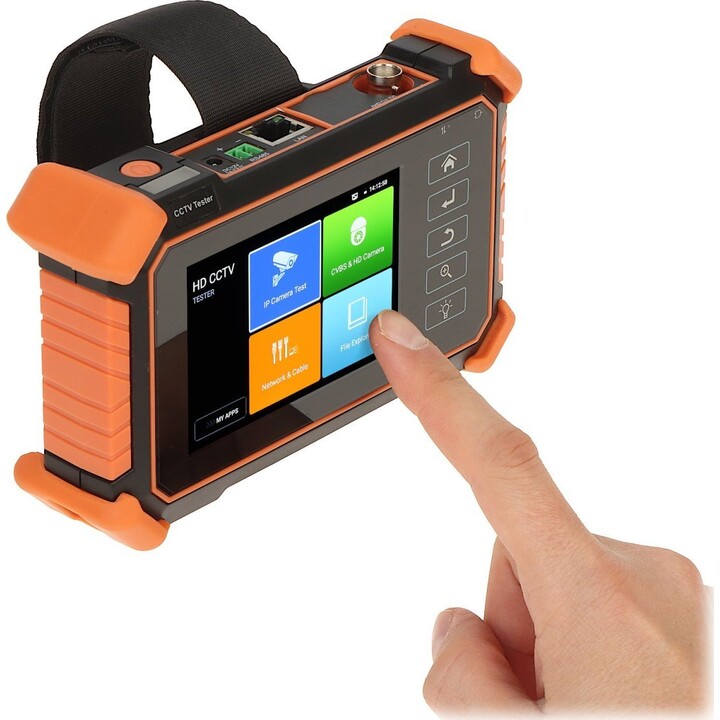

The CS-HB-45H is a professional multifunction CCTV tester designed for installers and technicians working with both IP and analog surveillance systems. It features a 7-inch LCD touchscreen with intuitive menu navigation, supporting H.265/H.264 video compression and up to 8MP resolution for IP cameras. The built-in PoE output provides 48V/24W to power cameras directly during testing, eliminating the need for separate power supplies.

This tester includes comprehensive PTZ control via RS232, RS485, and coaxial protocols, making it compatible with most PTZ cameras. It also offers cable tracing, network cable testing, and a digital multimeter function for voltage and resistance measurements. The device supports ONVIF protocol for automatic IP camera detection and configuration, and includes a 5V/12V DC output for powering analog cameras. With its rugged design and long battery life, the CS-HB-45H is an essential tool for efficient CCTV installation and maintenance.
