CS-H7-70H Multifunction CCTV Tester
Reference:
CS-H7-70H
EAN:
5902887004261
Condition:
New
Price:
€402.80
VAT included
€327.48
Without tax
- 7-inch IPS touchscreen, 1024x600 resolution
- Supports H.265/H.264, 4K HDMI input
- PTZ control (RS232/485, Pelco-D/P)
- PoE (48V, 25.5W) and TDR cable test
- WiFi connectivity and ONVIF support

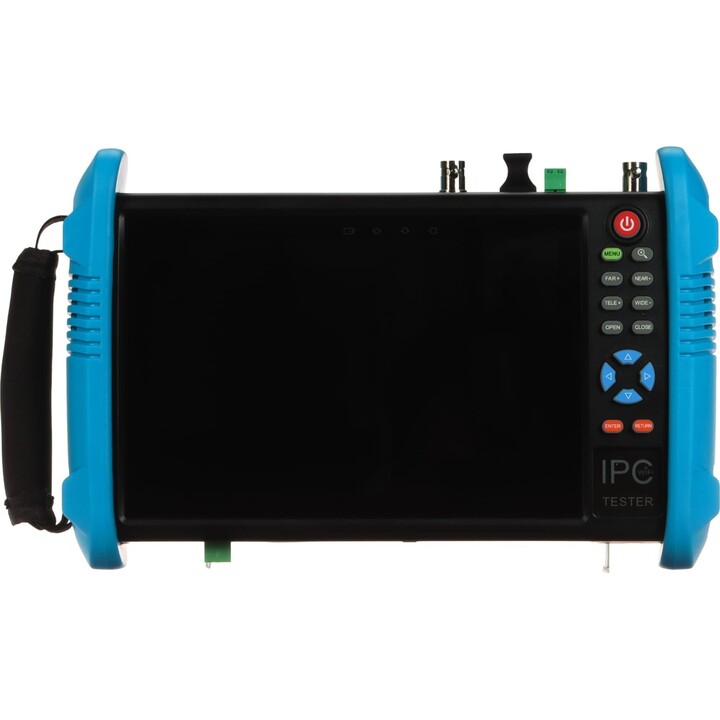

CS-H7-70H Multifunction CCTV Tester
The CS-H7-70H is a professional multifunction CCTV tester designed for security system installers and technicians. It features a 7-inch IPS touchscreen with 1024x600 resolution, supporting H.265/H.264 video decoding and 4K HDMI input for high-resolution camera testing. The device includes PTZ control via RS232/485 with Pelco-D/P protocols, PoE output (48V, 25.5W) for powering cameras, and TDR cable testing for fault detection.
With built-in WiFi and ONVIF support, the CS-H7-70H enables wireless network camera configuration and testing. It also offers a digital multimeter function, DC power output (12V/2A), and a rechargeable battery for field use. The tester is compatible with both IP and analog cameras, making it a versatile tool for CCTV installation and maintenance.
| Display | 7-inch IPS, 1024x600 |
| Video Support | H.265/H.264, 4K HDMI input |
| PTZ Control | RS232/485, Pelco-D/P |
| PoE Output | 48V, 25.5W |
| Cable Test | TDR, length measurement |
| Connectivity | WiFi, ONVIF |
| Multimeter | AC/DC voltage, resistance |
| DC Output | 12V/2A |
| Battery | Rechargeable Li-ion |
-
Brand
-
ReferenceCS-H7-70H
-
In stock5 Items
-
ConditionNew
-
EAN135902887004261
-
MPNCS-H7-70H
-
Tamaño de pantalla7 pulgadas
-
Resolución de pantalla1024x600
| Brand | Dipol |
|---|---|
| Country | Poland |
| Address of origin | Dipol Sp.j., ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| EU responsible person | Dipol Sp.j. |
| Address | ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| [email protected] | |
| Phone | +48 12 644 29 13 |
