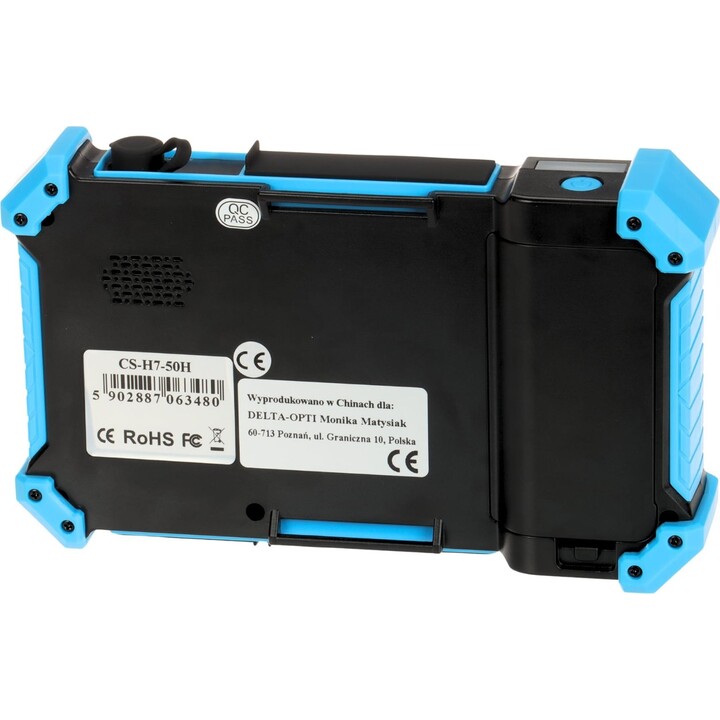

CS-H7-50H Multifunctional CCTV Tester
- 7-inch IPS touchscreen with 1920x1200 resolution
- Supports H.265+/H.265/H.264 IP cameras up to 4K
- Built-in PoE (48V/25.5W) for camera power and data
- PTZ control via RS485/RS232 and coaxial
- Cable tracing and TDR for coax and network cables
CS-H7-50H Multifunctional CCTV Tester
The CS-H7-50H is a professional all-in-one CCTV tester designed for IP and analog camera installation and maintenance. It features a 7-inch IPS touchscreen with 1920x1200 resolution, providing clear image preview. The tester supports H.265+/H.265/H.264 video decoding and can display 4K IP camera feeds. With built-in PoE (48V/25.5W), it powers cameras directly during testing, eliminating the need for separate power adapters.
This tester includes advanced cable tracing and TDR functions to locate and diagnose faults in coaxial and network cables. PTZ control is supported via RS485/RS232 and coaxial protocols, allowing full camera movement control. The device also offers network testing tools such as IP address scanning, ping, and port detection. Its rugged design and long battery life make it suitable for field use.
| Display | 7-inch IPS, 1920x1200 |
| Video Decoding | H.265+/H.265/H.264, up to 4K |
| PoE Output | 48V/25.5W, IEEE 802.3af/at |
| PTZ Control | RS485/RS232, coaxial (Pelco-D/P, etc.) |
| Cable Tester | TDR, cable tracing, length measurement |
| Network Tools | IP scanner, ping, port detection, DHCP |
| Battery | 7.4V/5000mAh Li-ion, 6-8 hours |
| Input Voltage | DC 12V/2A |
| Dimensions | 240 x 160 x 50 mm |
| Weight | 0.9 kg |
-
Brand
-
ReferenceCS-H7-50H
-
In stock17 Items
-
ConditionNew
-
EAN135902887063480
-
MPNCS-H7-50H
-
Resolución de pantalla1024x600
| Brand | Dipol |
|---|---|
| Country | Poland |
| Address of origin | Dipol Sp.j., ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| EU responsible person | Dipol Sp.j. |
| Address | ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| [email protected] | |
| Phone | +48 12 644 29 13 |
