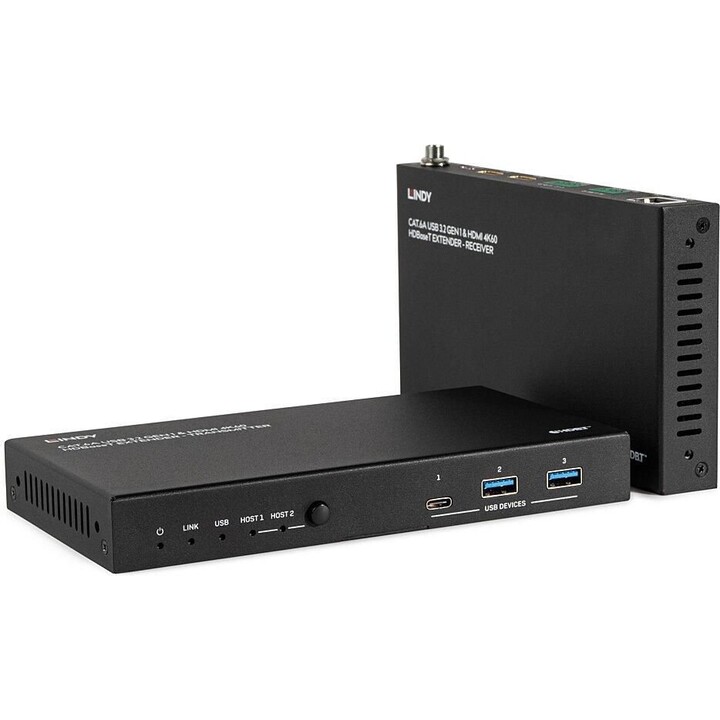

Network extender Network transmitter and receiver Black

Main function

• Extends the connection between 2 USB-C PCs/hosts and a remote console (2 HDMI + USB outputs for peripherals) up to 100m using a single HDBaseT over Cat.6A link.

• The TX unit has 2 switchable USB-C host ports, one with Power Delivery up to 100W, and the RX unit offers 2 HDMI 2.0 4K60, USB-A for keyboard/mouse/camera, audio and RS-232/FSYNC ports for industrial control.

Key Specifications

• Supports HDMI 2.0 18 Gbps, maximum resolution 3840×2160 @ 60 Hz 4:4:4 8-bit, HDCP 2.2, and USB 3.2 Gen1 up to 5 Gbps (backwards compatible with USB 2.0/1.1).

• Use Power over Cable (PoC): just connect the included power supply (multi-country) to the TX or RX, powering both devices through the same Cat.6A, with metal chassis and brackets for professional mounting.
