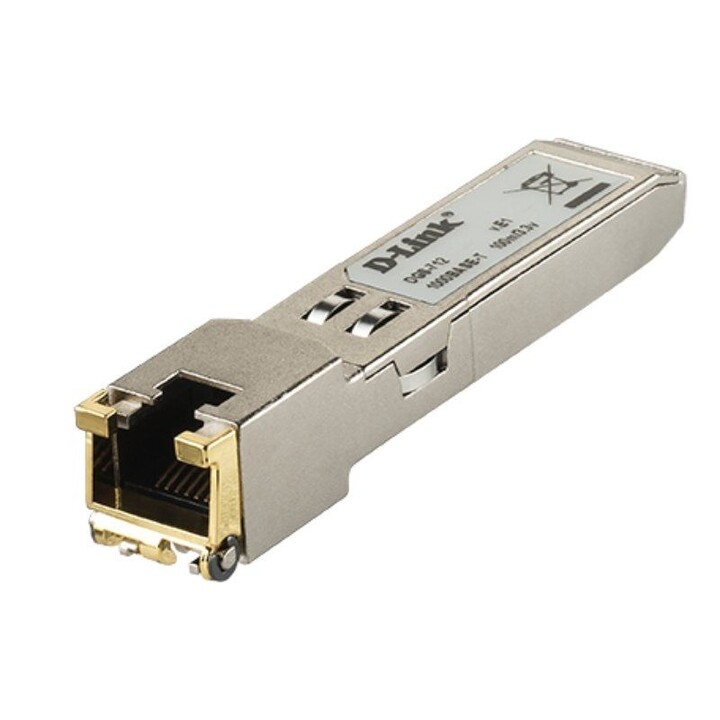

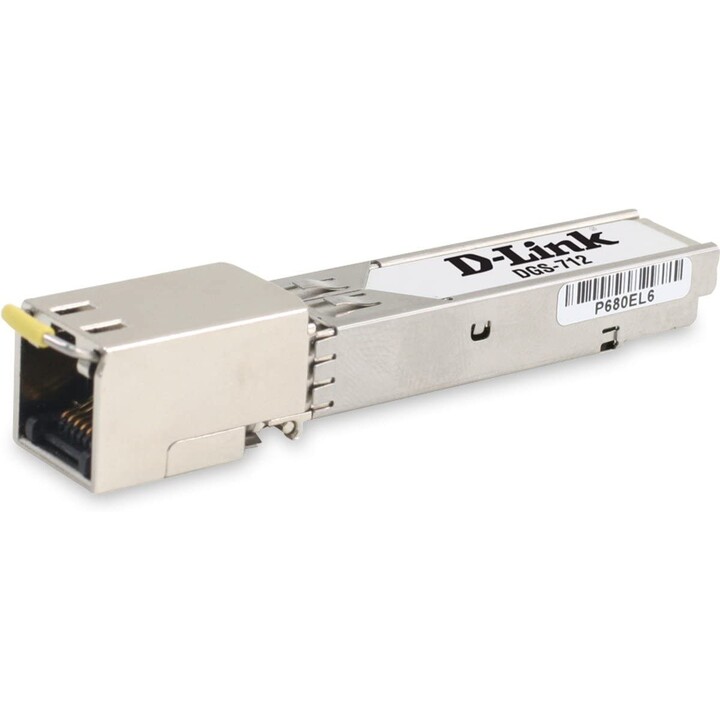

D-Link DGS-712 BASE-T Transceiver SFP Module

SFP 10/100/1000 BASE-T Copper Transceiver

Description The DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) Transceiver

of D-Links is based on the agreement of multiple sources SFP. It is compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3z and 802.3ab. The DGS-712 plugs into any standard SFP interface that allows Gigabit 1000Base-T transmission over standard Category 5 twisted-pair copper.

• specs

• Standard
• IEEE 802.3ab 1000BASE-T GigabitEthernet
• Meets the MSA SFP specification
• Transceiver type
• SFP (Small Form Factor Pluggable)
• connector
• RJ-45
• Auto MDI/MDIX
• Automatic crossover detection enabled
• No external crossover cable required
• Data speed
• 1000Mbps (IEEE 802.3 compliant)
• 10/100/1000 BASE-T operation requires the host system to have an SGMII interface without clocks. With a SERDES interface, this transceiver will work on 1000BASE-T only
• Type of cable
• Cat. 5 twisted pair wires
• Maximum cable distance coverage
• 100 meters
• supply current
• 350mA (typical)
• 400mA (maximum)
• 1.3W peak power over full voltage and temperature range
• Input voltage
• 3.1V (minimum)
• 3.3V (typical)
• 3.5V (maximum)
• Referenced to GND
• over current
• 30mA
• Hot Plug Above Steady State Current
• Dimensions (W x D x H)
• 0.47” x 2.95” x 0.47” (11mm x 75mm x 11mm)
• Weight
• 0.53lbs (0.2kg)
• Operating temperature
• 32° to 185°F (0° to 85°C)
• Storage temperature
• -40° to 185° F (-40° to 85° C )
