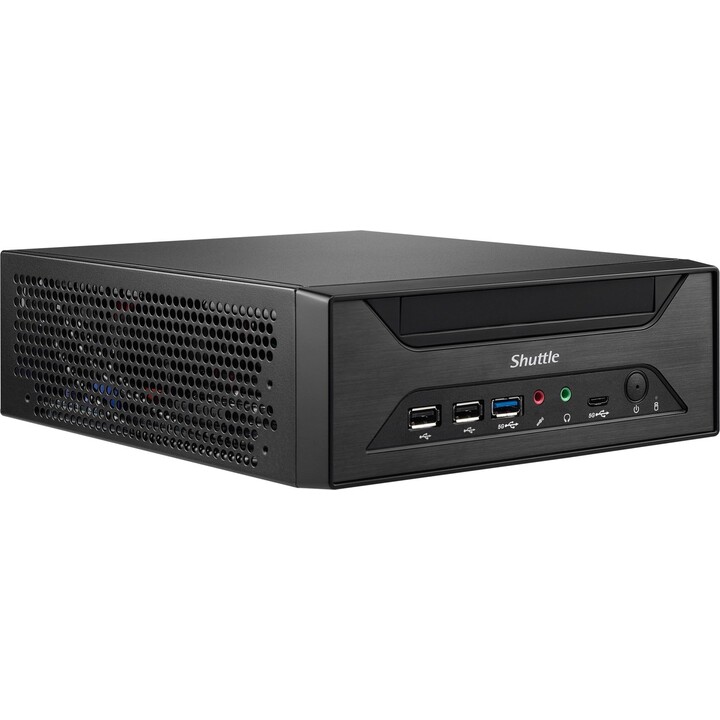

Slim black chassis 238 x 200 x 72.5 mm (3.5 L, 2.2 kg), VESA/horizontal/vertical mounting (with optional bracket), operation 0-50°C and Kensington lock for IT racks or behind screens without taking up space.
Active cooling with dual-fan heat pipe (quiet), external 120W fanless power supply (19V/6.32A), supports CPUs up to 65W TDP without interruption.
The Intel H610 Socket LGA1700 chipset supports Core i3/i5/i7/i9, Pentium/Celeron (BIOS v2.03+ for Raptor Lake) of the 12th/13th/14th generations, with fTPM 2.0, Watchdog, and UEFI monitoring.
Intel UHD triple display graphics: HDMI 2.0b (4K@60Hz) + DP 1.4a (4K@60Hz) + VGA (1080p) for digital display, video surveillance, or multi-monitor setups.
2x SO-DIMM DDR4-3200 (dual channel, up to 64 GB 32 GB/DIMM), ideal for light virtualization or databases.
2x M.2: 2280 PCIe4x4 NVMe/SATA SSD + 2230 WiFi E-key; 3x SATA 6Gb/s (1x 2.5" bay + slim ODD bay swappable).
Front: 2x USB 3.2 Gen1 (1x Type-C), 2x USB 2.0, audio combo, power/HDD LED.
Rear: Dual LAN (2.5GbE Intel + 1GbE), 2x USB 3.2 Gen1, 2x USB 2.0, 2x COM RS232/RS422/RS485, 3x 3.5mm audio, DC-in, WiFi antennas.
Internal: 4x RS232 headers, fan/SATA power connectors.
Realtek ALC897/662 5.1 HD audio for clear VoIP; supports Windows 11/10, Linux.
| Brand | SHUTTLE |
|---|---|
| Country | Taiwan |
| Address of origin | No. 30, Lane 76, Ruiguang Road, Neihu District, Taipei City, 114, Taiwan |
| EU responsible person | Shuttle Computer Handelsgesellschaft mbH |
| Address | Fritz-Strassmann-Str. 5, 25337 Elmshorn, Germany |
| [email protected] | |
| Phone | +49 4121 476-860 |
