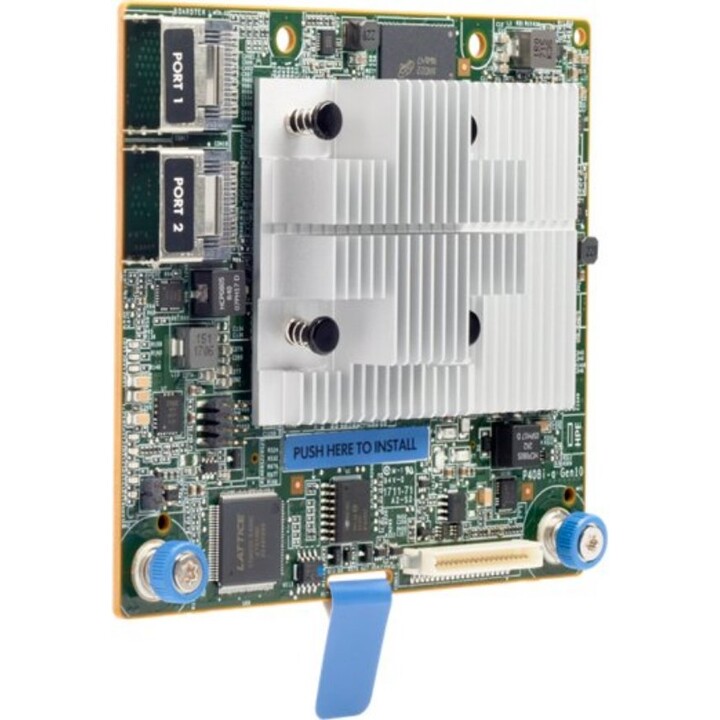

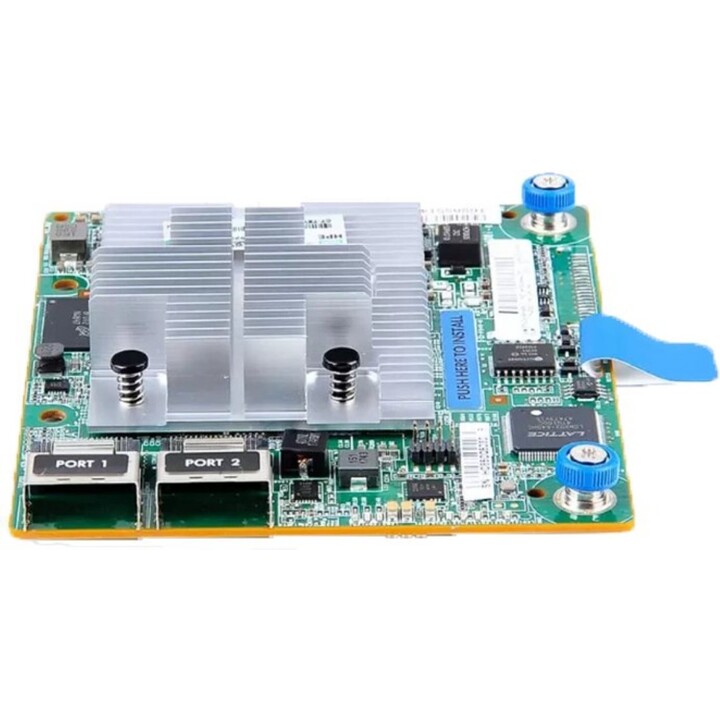

Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular LH Controller

HPE Smart Array P408i-a SR Gen10 - Modular Enterprise RAID Controller (869081-B21)

The HPE Smart Array P408i-a SR Gen10 is an enterprise-class, flexible Smart Array RAID controller designed specifically for HPE ProLiant Gen10 servers. Operating at 12Gb/s SAS and 6Gb/s SATA, it features 2GB of Flash-Backed Write Cache (FBWC) to accelerate data processing and protect data during power loss. This "Type-a" modular controller occupies a dedicated storage slot without consuming a PCIe expansion slot, providing eight internal SAS lanes for high-density storage configurations. It supports advanced RAID levels (0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM) and incorporates HPE Smart Array SR Secure Encryption for data-at-rest protection. Engineered for reliability and performance, it is an essential component for demanding database, virtualization, and high-performance computing workloads.

Technical Specifications

* Model: Smart Array P408i-a SR Gen10

* Part Number: 869081-B21

* EAN: 4549821037834

* Interface: 12Gb/s SAS / 6Gb/s SATA

* Cache: 2GB Flash-Backed Write Cache (FBWC)

* RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM

* Form Factor: Type-a Modular Controller (Dedicated Slot)

* Internal Lanes: 8 SAS Lanes (2x4 Internal Ports)

* Maximum Drives Supported: Up to 238 Physical Drives (Up to 64 Logical Drives)

* Compatibility: HPE ProLiant DL360 Gen10, DL380 Gen10, ML350 Gen10, XL450 Gen10

* Features: HPE SSD Smart Path, HPE Smart Array SR Secure Encryption, Predictive Spare Activation

* Management: HPE iLO 5, HPE Smart Storage Administrator (SSA)
