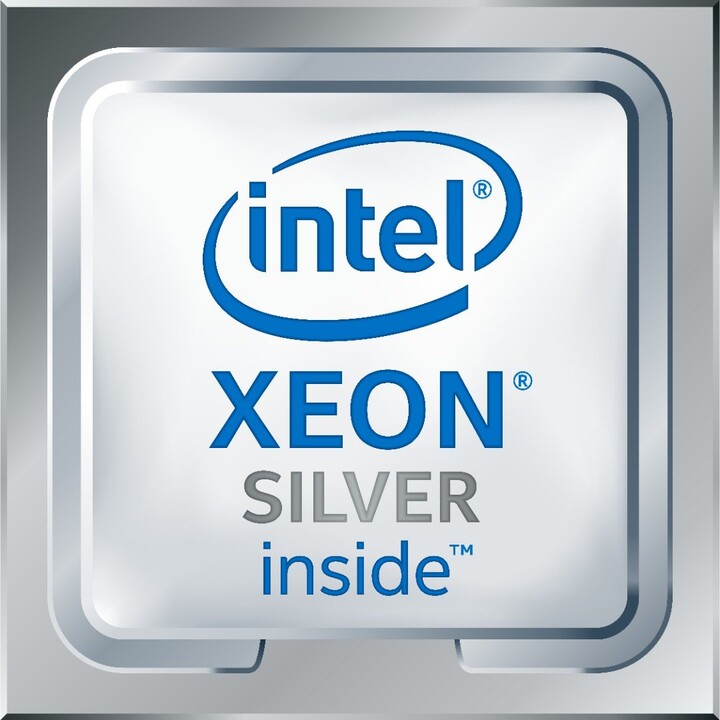

Intel Xeon 4215R processor 3.2 GHz 11 MB
- 8-core Intel Xeon Silver 4215R CPU
- Base clock speed of 3.2 GHz with 4.0 GHz max turbo frequency
- 11 MB cache memory
- Supports up to 1 TB DDR4-SDRAM memory
- 130W thermal design power (TDP)
Intel Xeon 4215R processor 3.2 GHz 11 MB
The Intel Xeon 4215R is a server-grade processor designed for dual-socket platforms, offering 10 cores and 20 threads with a base frequency of 3.2 GHz and a turbo frequency of 4.0 GHz. It features 11 MB of L3 cache and supports up to 1 TB of DDR4-2400 memory across six channels, making it suitable for data-intensive workloads such as virtualization, cloud computing, and enterprise applications.
Built on the 14nm process, the Xeon 4215R has a TDP of 100W and is compatible with the LGA3647 socket. It includes Intel Hyper-Threading, Turbo Boost 2.0, and Advanced Vector Extensions (AVX-512) for enhanced performance in scientific simulations and AI inference. The processor also supports Intel Optane DC persistent memory and provides up to 48 PCIe 3.0 lanes for high-speed connectivity.
| Product Collection | Intel Xeon Scalable Processors (2nd Gen) |
| Code Name | Cascade Lake |
| Vertical Segment | Server |
| Processor Number | 4215R |
| Status | Launched |
| Launch Date | Q1'20 |
| Lithography | 14 nm |
| Use Conditions | Server/Enterprise |
| # of Cores | 10 |
| # of Threads | 20 |
| Processor Base Frequency | 3.20 GHz |
| Max Turbo Frequency | 4.00 GHz |
| Cache | 11 MB L3 |
| Bus Speed | 8 GT/s |
| # of UPI Links | 2 |
| TDP | 100 W |
| Supplemental Information | Embedded Options Available |
| Memory Types | DDR4-2400 |
| Max # of Memory Channels | 6 |
| Max Memory Bandwidth | 115.2 GB/s |
| Physical Address Extensions | 46-bit |
| ECC Memory Supported | Yes |
| Socket Supported | FCLGA3647 |
| Max # of PCIe Lanes | 48 |
| PCIe Revision | 3.0 |
| Max # of PCIe Configurations | Gen3 x48 |
| Scaling Factor | 2S |
| Intel Turbo Boost Technology | 2.0 |
| Intel Hyper-Threading Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel AVX-512 |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel AES New Instructions | Yes |
| Secure Key | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Memory Protection Extensions (Intel MPX) | Yes |
| Intel OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Boot Guard | Yes |
