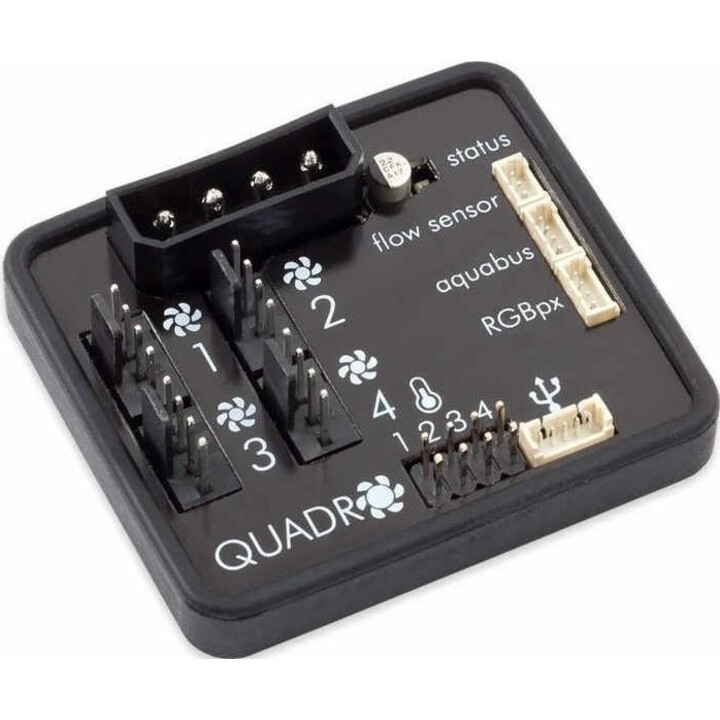

Aqua Computer QUADRO4-channel PWM fan controller, designed for advanced fan management in high-performance PCs.
Each channel has up to 25 W of power, enough to power several PWM fans per output using suitable splitters.
All channels offer 0-100% PWM control with 0.1% resolution and support for fan RPM monitoring.
Allows temperature control, with 4 temperature sensor inputs and various adjustable control curves (set point, graphical, etc.).
Includes "smart start" function to ensure reliable start of low speed fans, with RPM signal monitoring.
Integrates RGBpx output to control up to 64 addressable LEDs (fans/strips with 5V ARGB), with 23 configurable effects.
4-pin PWM fan connectors (12 V) and powered by 5 V / 12 V via on-board USB.
Small dimensions of approx. 54 × 49 × 17 mm (without cables), intended for chassis mounting or integration into liquid-air cooling setups.
Works as a stand-alone controller or as an aquabus extension for aquaero 5/6, extending the number of fan channels and sensors.
