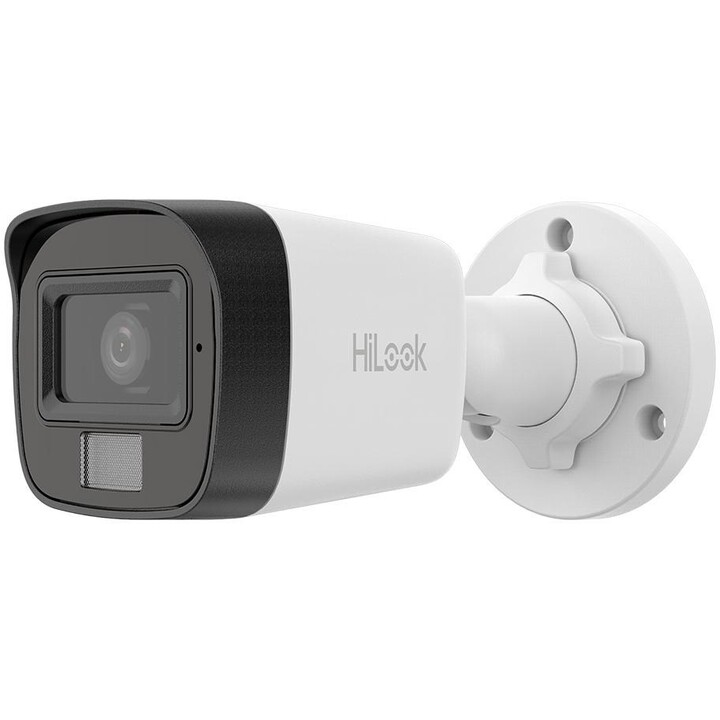

Hilook 4-in-1 8MP Tube TVI-B8M-20DL Camera
- 8MP (3840x2160) resolution at 15fps
- 2.8mm fixed lens, 103° horizontal FOV
- 20m IR night vision range
- 4-in-1 switchable: TVI / AHD / CVI / CVBS
- IP67 weatherproof, DC12V power
Hilook 4-in-1 8MP Tube TVI-B8M-20DL Camera
The Hilook TVI-B8M-20DL is a high-resolution 8MP tube camera designed for professional surveillance. Featuring a 2.8mm fixed lens with a 103° horizontal field of view, it captures detailed images in both day and night conditions. With 20 meters of IR night vision, the camera ensures clear monitoring even in complete darkness. Its 4-in-1 technology allows seamless switching between TVI, AHD, CVI, and CVBS outputs, making it compatible with a wide range of DVRs.
Built for outdoor use, the camera boasts an IP67 weatherproof rating, protecting it against dust and water ingress. It operates on DC12V power and supports up to 8MP resolution at 15fps. The compact tube design is easy to install and ideal for perimeter monitoring, parking lots, and commercial premises. With OSD menu control via the DVR, users can fine-tune settings for optimal performance.
| Image Sensor | 8MP 1/2.7" CMOS |
| Resolution | 8MP (3840x2160) @ 15fps |
| Lens | 2.8mm fixed, F2.0 |
| Field of View | 103° (H), 55° (V), 120° (D) |
| IR Range | 20m (smart IR) |
| Video Output | 4-in-1: TVI / AHD / CVI / CVBS switchable |
| Day/Night | ICR auto switch |
| Weatherproof | IP67 |
| Power | DC12V ±25% |
| Power Consumption | Max 4W |
| Operating Temperature | -40°C to 60°C |
| Dimensions | 186.6 x 70 x 70 mm |
| Weight | Approx. 0.5 kg |
| Brand | HikVision |
|---|---|
| Country | China |
| Address of origin | No. 555 Qianmo Road, Distrito Binjiang, Hangzhou, Zhejiang 31005 |
| EU responsible person | Hikvision Europe B.V. |
| Address | Willem Einthovenstraat 5, Hoofddorp, Netherlands, 2342 BH |
| [email protected] | |
| Phone | 31235657200 |
