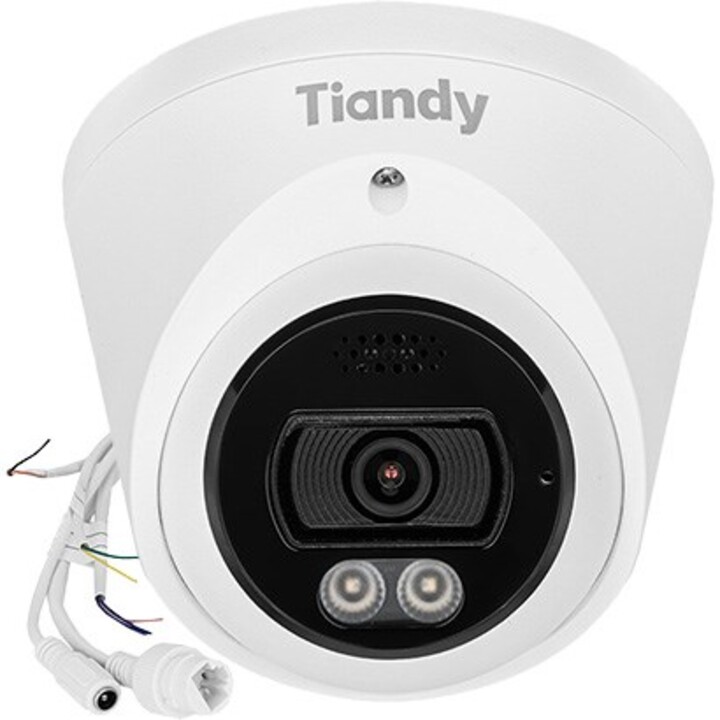

The Tiandy TC-C35XQ is a high-performance IP camera designed for professional surveillance. With a 5MP CMOS sensor, it delivers crisp and detailed images at up to 2592x1944 resolution. The 2.8mm fixed lens provides a wide 106° horizontal field of view, making it ideal for monitoring large areas such as parking lots, warehouses, or retail spaces. Equipped with Smart IR technology, the camera offers clear night vision up to 30 meters, ensuring 24/7 security coverage.
This camera supports advanced video compression standards including H.265+, H.265, and H.264, which significantly reduce bandwidth and storage requirements without compromising image quality. The I3W/E/Y variant indicates support for PoE (Power over Ethernet) for easy installation, and the V4.2 firmware ensures stable performance and compatibility with Tiandy's latest software features. Built with an IP67-rated housing and IK10 vandal-resistant construction, the TC-C35XQ is suitable for both indoor and outdoor use in harsh environments.
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 5MP (2592x1944) @ 20fps |
| Lens | 2.8mm fixed, F2.0 |
| Field of View | Horizontal: 106°, Vertical: 58°, Diagonal: 124° |
| Minimum Illumination | Color: 0.01 Lux @ F2.0; B/W: 0.005 Lux @ F2.0; 0 Lux with IR |
| IR Range | Up to 30m (Smart IR) |
| Video Compression | H.265+, H.265, H.264, MJPEG |
| Audio | 1-ch audio input, 1-ch audio output |
| Alarm | 1-ch alarm input, 1-ch alarm output |
| Network | 10/100Mbps Ethernet, PoE (802.3af) |
| Storage | MicroSD slot (up to 256GB), NAS |
| Protection | IP67, IK10 |
| Operating Temperature | -40°C to 60°C |
| Power Supply | DC 12V ±25% or PoE (802.3af) |
| Dimensions | Φ121.5mm × 94.5mm |
| Weight | Approx. 0.6 kg |
